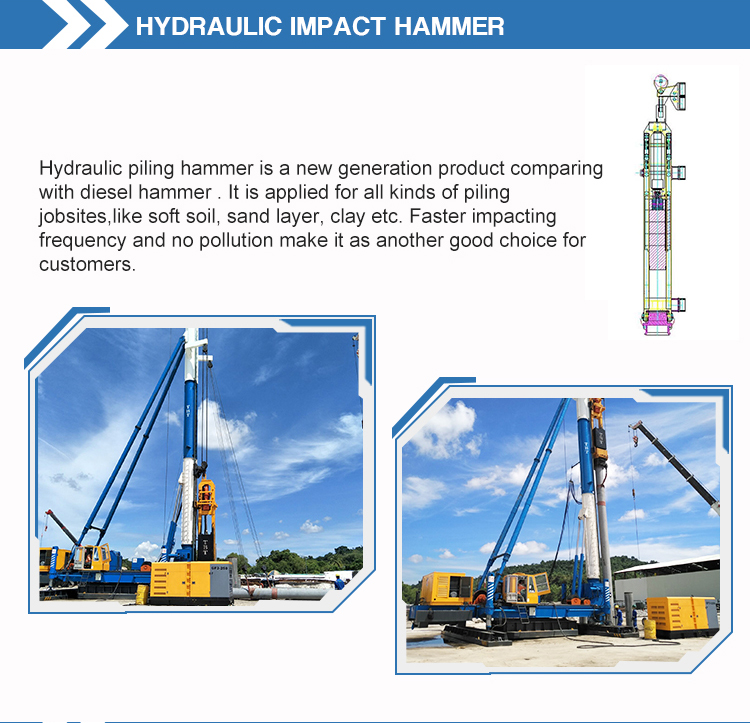

T-works - 5T-16T Hydraulic pile hammer for precast cast concrete hydraulic piling hammer
Our heavy investment in the product R&D has finally paid off. T-works has successfully rolled out a new product series, namely 5T-16T Hydraulic pile hammer for precast cast concrete. It is totally unique in several aspects including its appearance, features, and applications. 5T-16T Hydraulic pile hammer for precast cast concrete can bring greater value to customers and help customers gain a firm foothold in the complex market environment. In the future, T-works will focus on technological innovation, continuously improve service quality and develop better products, and is committed to providing customers with products and services that exceed expectations.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | According to the Sandy Soil |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 60000 kg | Dimension(L*W*H): | (L*W)13m*7.5m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas | Made by T-works: | From Changsha Tianwei |
| Series: | 3T, 5T, 7T, 9T, 11T, 13T, 15T, 18T | Movement type: | Crawler type or walking type |
| Engineering machine: | A new self-development piling machine | Construction machine: | A kind of pile driver |
| After-sale service: | Engineer available any time | Leader heigh t(m): | 24 |
| Distance between guide rail(mm): | 600 | Max ground gradient (°): | 5 |
|
Technical parameters for hydraulic hammer frame |
||
|
KLB WALKING TYPE |
TB80 |
|
|
Movement type |
footstep walking-type |
|
|
Leader heigh t(m) |
24 |
|
|
Distance between guide rail(mm) |
600 |
|
|
Max stroke of inclined-support cylinder(mm) |
1500 |
|
|
Max ground gradient (°) |
5 |
|
|
main winch |
single pulling force(KN) |
50 |
|
Speed(m/min) |
32 |
|
|
Wire diameter(mm) |
19 |
|
|
vice winch |
single pulling force(KN) |
40/40 |
|
Speed(m/min) |
24 |
|
|
Wire diameter(mm) |
15 |
|
|
Walking device |
Londitudinal stroke (mm) |
1800 |
|
Horizontal stroke (mm) |
800 |
|
|
Walking speed (m/min) |
5 |
|
|
Stroke for supporting leg cylinder (mm) |
1100 |
|
|
Revovling mechanism (°) |
360 |
|
|
Standing way |
push forward |
|
|
Hydraulic system |
Pressure (Mpa) |
20 |
|
Power (KW) |
2*18.5 |
|
|
overall dimension(L*W) |
13m*7.5m |
|
|
total weight(T) |
60 |
|

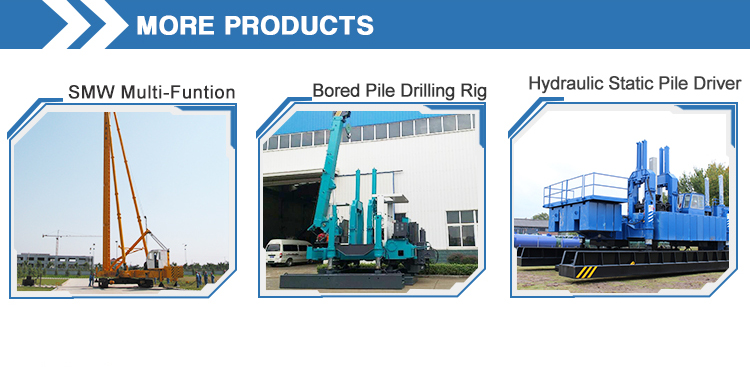

PRODUCTS
