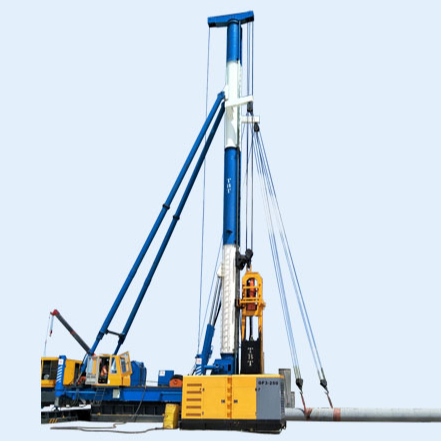

T-works - Hydraulic piling hammer / impact hammer for precast concrete pile
Talents and technology are indispensable supporting factors for the Hydraulic piling hammer / pile hammer for precast concrete pile/ hydraulic pile driver for precast concrete pile to be widely praised.The widespread use in Pile Drivers of the product helps it win a lot of attention in the market.
Backed by our creative designers, experienced R&D experts, skilled technicians, etc. T-workshas independently developed Hydraulic piling hammer / pile hammer for precast concrete pile/ hydraulic pile driver for precast concrete pile. It is the result of hard work and creative efforts and will come up to the expectation of users The advancement in technology brings us unlimited benefits which include expanded product advantages.Hydraulic piling hammer / pile hammer for precast concrete pile/ hydraulic pile driver for precast concrete pile is perfect for the area(s) of Pile Drivers. The research and development of Hydraulic piling hammer / pile hammer for precast concrete pile/ hydraulic pile driver for precast concrete pile has further improved the company's market competitiveness.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | According to the Sandy Soil |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 60000 kg | Dimension(L*W*H): | (L*W)13m*7.5m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Made by T-works: | From Changsha Tianwei | Series: | 3T, 5T, 7T, 9T, 11T, 13T, 15T, 18T |
| Movement type: | Crawler type or walking type | Engineering machine: | A new self-development piling machine |
| Construction machine: | A kind of pile driver | After-sale service: | Engineer available any time |
| Leader heigh t(m): | 24 | Distance between guide rail(mm): | 600 |
| Max ground gradient (°): | 5 |
Technical parameters for hydraulic hammer frame | ||
KLB WALKING TYPE | TB80 | |
Movement type | footstep walking-type | |
Leader heigh t(m) | 24 | |
Distance between guide rail(mm) | 600 | |
Max stroke of inclined-support cylinder(mm) | 1500 | |
Max ground gradient (°) | 5 | |
main winch | single pulling force(KN) | 50 |
Speed(m/min) | 32 | |
Wire diameter(mm) | 19 | |
vice winch | single pulling force(KN) | 40/40 |
Speed(m/min) | 24 | |
Wire diameter(mm) | 15 | |
Walking device | Londitudinal stroke (mm) | 1800 |
Horizontal stroke (mm) | 800 | |
Walking speed (m/min) | 5 | |
Stroke for supporting leg cylinder (mm) | 1100 | |
Revovling mechanism (°) | 360 | |
Standing way | push forward | |
Hydraulic system | Pressure (Mpa) | 20 |
Power (KW) | 2*18.5 | |
overall dimension(L*W) | 13m*7.5m | |
total weight(T) | 60 | |
PRODUCTS
T-works will provide not only reliable piling machinery products butalso excellent and efficient service.
