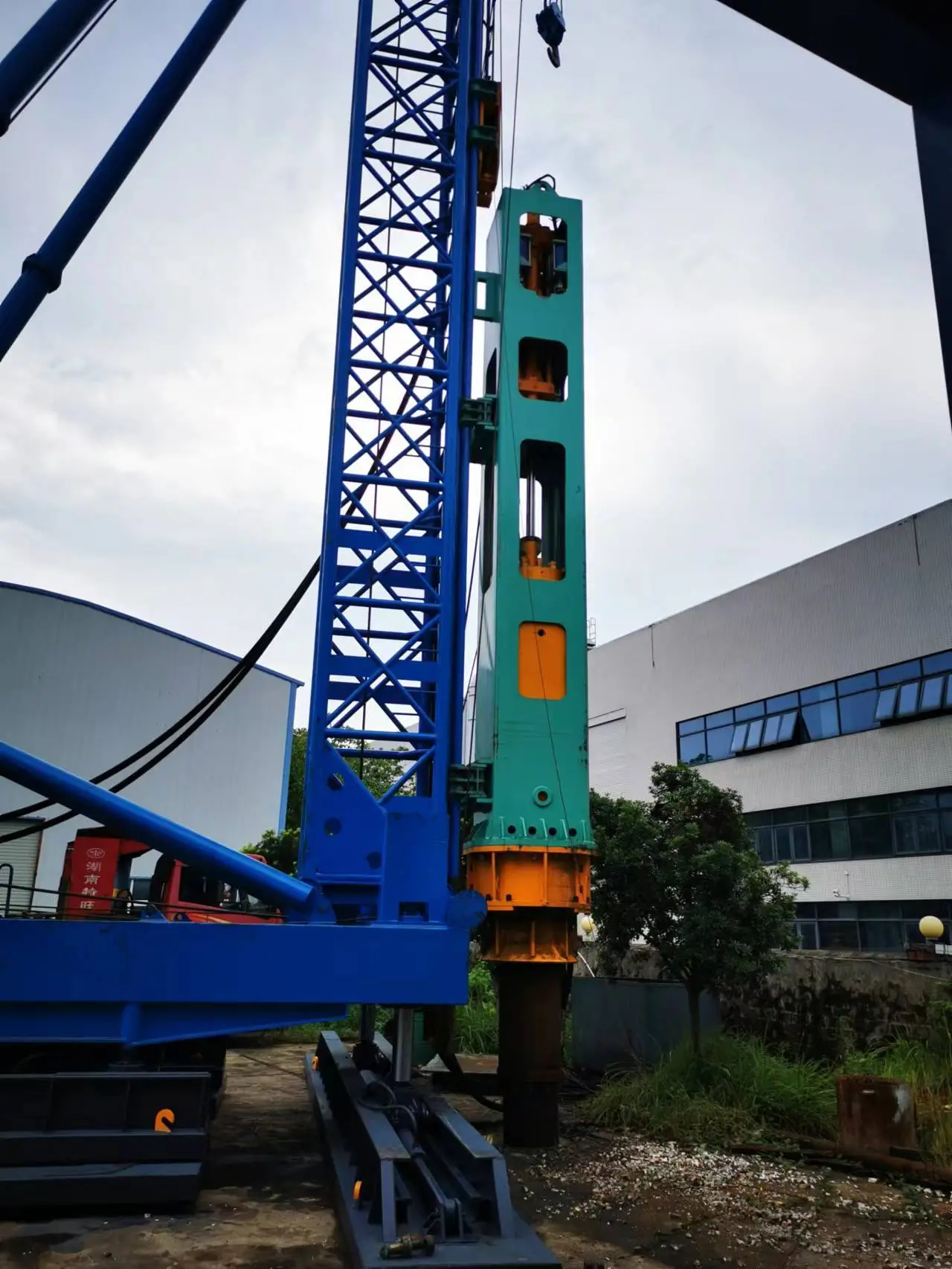

T-works - Double acting hydraulic press cylinder pile driving for precast cast concrete hydraulic piling hammer
Our Double acting hydraulic press cylinder pile driving for precast cast concrete has the high-level characteristics of all raw materials. Therefore, it has the multi-functional features which largely decide its applications. At present, the Hydraulic Static Pile Driver, Drilling rigs, Crawler dumper truck has applications in a wide range of Pile Drivers fields.
Always putting an emphasis on the improvement of the research and development, T-works has finally developed Double acting hydraulic press cylinder pile driving for precast cast concrete. The product with improved properties and features is expected to lead the trend of the industry. Technology is the core competitiveness of a company. Since established, we have been researching and developing high-level technologies to make sure highly efficient manufacturing process.It covers a wide range and is commonly seen in the application field(s) of Pile Drivers. After years of growth and development,T-works have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | According to the Sandy Soil |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 60000 kg | Dimension(L*W*H): | (L*W)13m*7.5m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas | Made by T-works: | From Changsha Tianwei |
| Series: | 3T, 5T, 7T, 9T, 11T, 13T, 15T, 18T | Movement type: | Crawler type or walking type |
| Engineering machine: | A new self-development piling machine | Construction machine: | A kind of pile driver |
| After-sale service: | Engineer available any time | Leader heigh t(m): | 24 |
| Distance between guide rail(mm): | 600 | Max ground gradient (°): | 5 |
Technical parameters for hydraulic hammer frame | ||
KLB WALKING TYPE | TB80 | |
Movement type | footstep walking-type | |
Leader heigh t(m) | 24 | |
Distance between guide rail(mm) | 600 | |
Max stroke of inclined-support cylinder(mm) | 1500 | |
Max ground gradient (°) | 5 | |
main winch | single pulling force(KN) | 50 |
Speed(m/min) | 32 | |
Wire diameter(mm) | 19 | |
vice winch | single pulling force(KN) | 40/40 |
Speed(m/min) | 24 | |
Wire diameter(mm) | 15 | |
Walking device | Londitudinal stroke (mm) | 1800 |
Horizontal stroke (mm) | 800 | |
Walking speed (m/min) | 5 | |
Stroke for supporting leg cylinder (mm) | 1100 | |
Revovling mechanism (°) | 360 | |
Standing way | push forward | |
Hydraulic system | Pressure (Mpa) | 20 |
Power (KW) | 2*18.5 | |
overall dimension(L*W) | 13m*7.5m | |
total weight(T) | 60 | |
PRODUCTS
T-works will provide not only reliable piling machinery products butalso excellent and efficient service.
