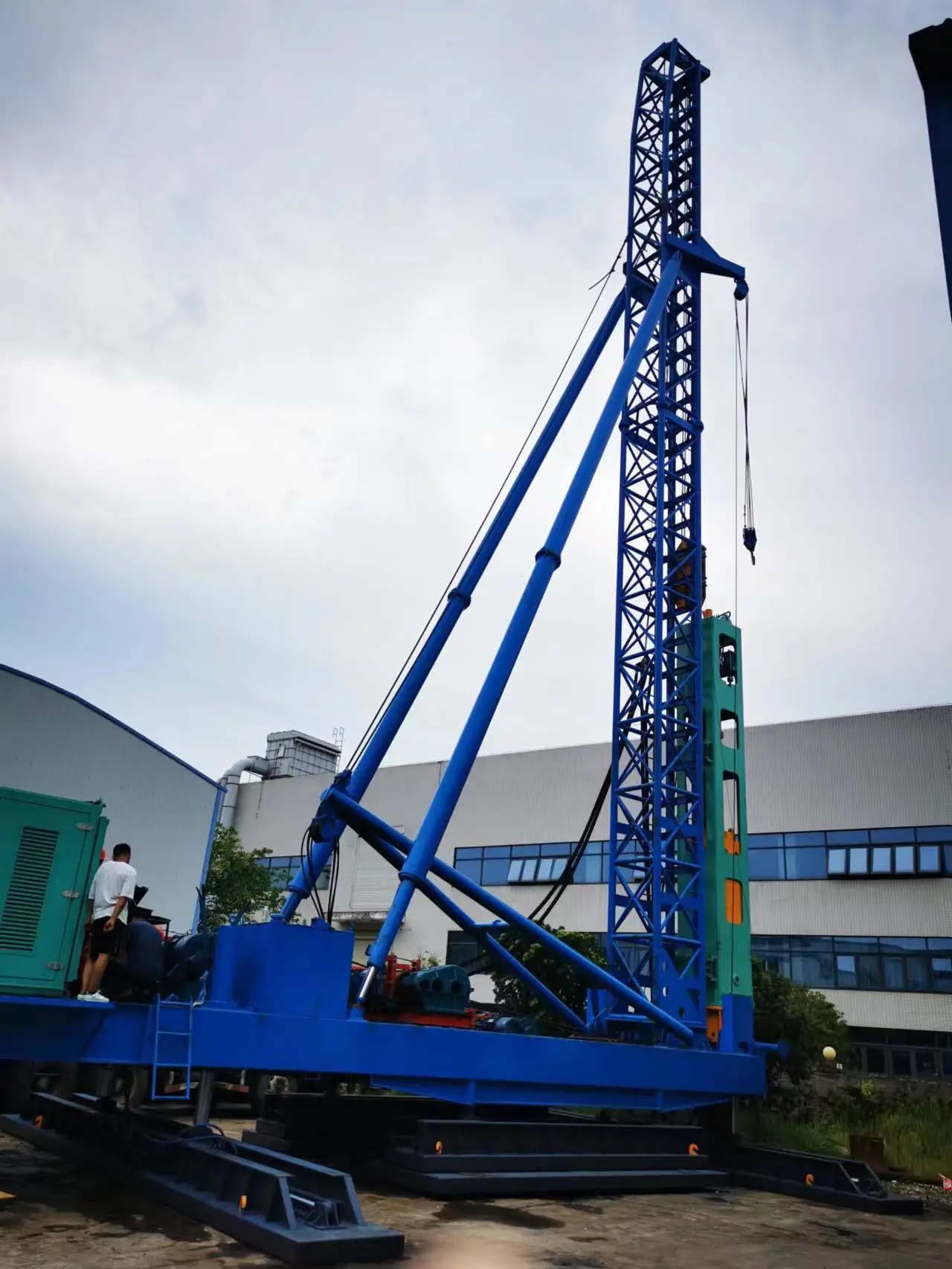

T-works - High pile forming quality piling drilling hammer hydraulic piling hammer
The technologies are important in manufacturing the product.As a kind of multi-functional High pile forming quality piling drilling hammer, it can be widely found in the application scenario(s) of Pile Drivers.
T-works has been one of the market leaders due to providing high-quality products to clients and it is very possible for the company to achieve a greater advancement in the future. The use of in High pile forming quality piling drilling hammer manufacturing has allowed us for more efficient use of resources and personnel.The product is highly recognized in the application field(s) of Pile Drivers. After years of growth and development,T-works have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | According to the Sandy Soil |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 60 kg | Dimension(L*W*H): | (L*W)13m*7.5m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas | Made by T-works: | From Changsha Tianwei |
| Series: | 3T, 5T, 7T, 9T, 11T, 13T, 15T, 18T | Movement type: | Crawler type or walking type |
| Engineering machine: | A new self-development piling machine | Construction machine: | A kind of pile driver |
| After-sale service: | Engineer available any time | Leader heigh t(m): | 24 |
| Distance between guide rail(mm): | 600 | Max ground gradient (°): | 5 |
Technical parameters for hydraulic hammer frame | ||
KLB WALKING TYPE | TB80 | |
Movement type | footstep walking-type | |
Leader heigh t(m) | 24 | |
Distance between guide rail(mm) | 600 | |
Max stroke of inclined-support cylinder(mm) | 1500 | |
Max ground gradient (°) | 5 | |
main winch | single pulling force(KN) | 50 |
Speed(m/min) | 32 | |
Wire diameter(mm) | 19 | |
vice winch | single pulling force(KN) | 40/40 |
Speed(m/min) | 24 | |
Wire diameter(mm) | 15 | |
Walking device | Londitudinal stroke (mm) | 1800 |
Horizontal stroke (mm) | 800 | |
Walking speed (m/min) | 5 | |
Stroke for supporting leg cylinder (mm) | 1100 | |
Revovling mechanism (°) | 360 | |
Standing way | push forward | |
Hydraulic system | Pressure (Mpa) | 20 |
Power (KW) | 2*18.5 | |
overall dimension(L*W) | 13m*7.5m | |
total weight(T) | 60 | |
PRODUCTS
T-works will provide not only reliable piling machinery products but also excellent and efficient service.
