T-WORKS Lightweight Breakthrough: ZYC60 Mini Pile Driver – 600KN Power, New Era of "Lightweight Construction"

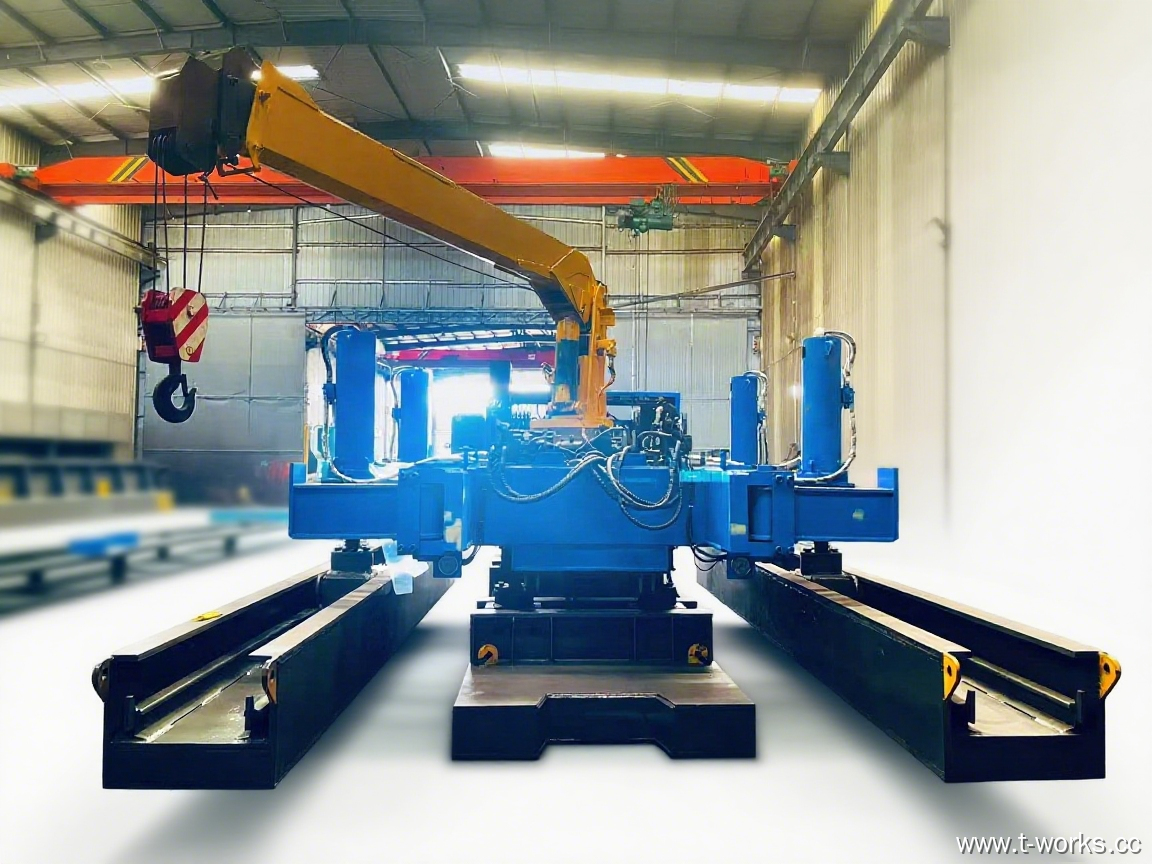

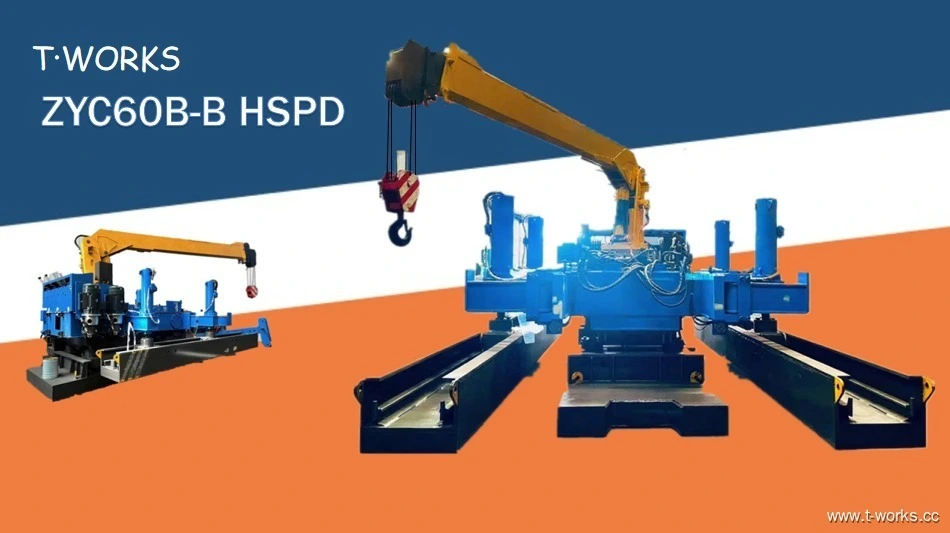

Recently, the first batch of ZYC60 small hydraulic static pile drivers independently developed by our company has been delivered. This equipment, with "lightweight and high efficiency" as its core, has redefined the construction standards for small and micro projects through the ultimate balance between its 600KN (60-ton) rated pile driving force and 30-ton main machine weight, injecting new vitality into narrow-site operations and refined construction.

The "lightweight reakthrough" of ZYC60 is not a compromise at the expense of performance, but precise control of technical integration:

- Pile driving capacity: The maximum pile driving force in normal gear reaches 600KN (60 tons), which can easily handle the driving of pipe piles with a diameter of 200mm and square piles of 200×200mm; the 430KN pile driving force in fast gear, combined with a pile driving speed of 9m/min, balances efficiency and power.

- Flexible body: The minimum overall dimension during normal operation is only 5.2m×3.2m×3.4m, with a side pile distance as low as 0.6m. Each lateral travel stroke is 0.28m and longitudinal travel stroke is 1.5m, enabling flexible movement in narrow sites (width ≤ 6 meters) such as urban village lanes and building gaps, perfectly fitting the scenario positioning of "Precise adaptation! The shipment of ZYC60 small pile driver customizes piling solutions for narrow sites and small micro-projects".

- Transportation advantages: The main machine weighs 30 tons and can be transported as a whole after disassembly (transportation dimension: 4.7m×2.1m×3.45m), eliminating the need for large trailers and greatly reducing transfer costs.

For a long time, small and micro projects have faced the dilemma of "large equipment cannot enter, while small equipment lacks sufficient power". The delivery of ZYC60 fills this gap:

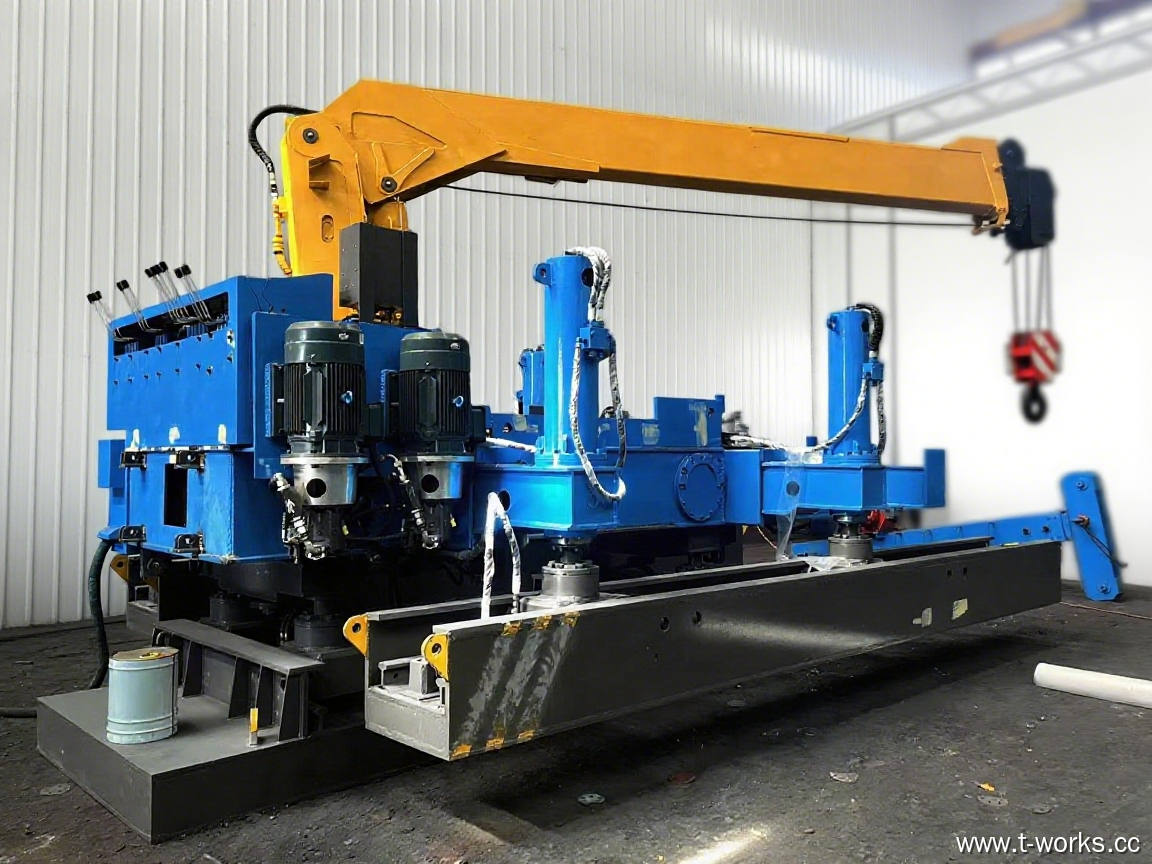

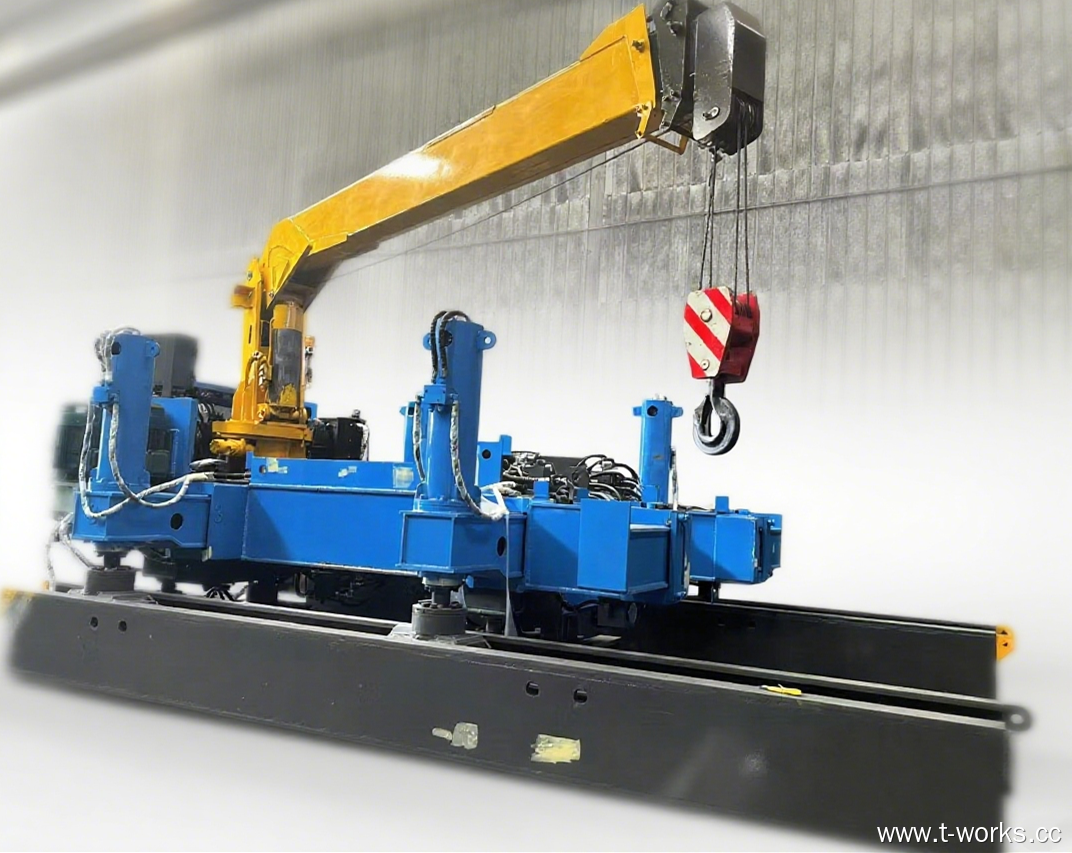

- Targeted solution to pain points: The operating height of 3.4m can adapt to low spaces, and the ground pressure of 114-117KN/m² ensures no sinking in soft soil foundations. Equipped with a 5-ton crane (maximum working radius of 10m), it can lift piles by itself, reducing reliance on auxiliary equipment.

- Promoting refined construction: As a practitioner of "Upgrade of small and micro engineering equipment! The delivery of ZYC60 small pile driver promotes the refined development of foundation construction", its single pile driving stroke of 0.8m can precisely control the verticality of piles. The piling process is vibration-free and low-noise, making it particularly suitable for environment-sensitive areas such as residential areas and hospital surroundings.

Interpreting the Concept of "Precise Equipment  Manufacturing" .The R&D of ZYC60 has always been guided by the idea of "design based on demand":

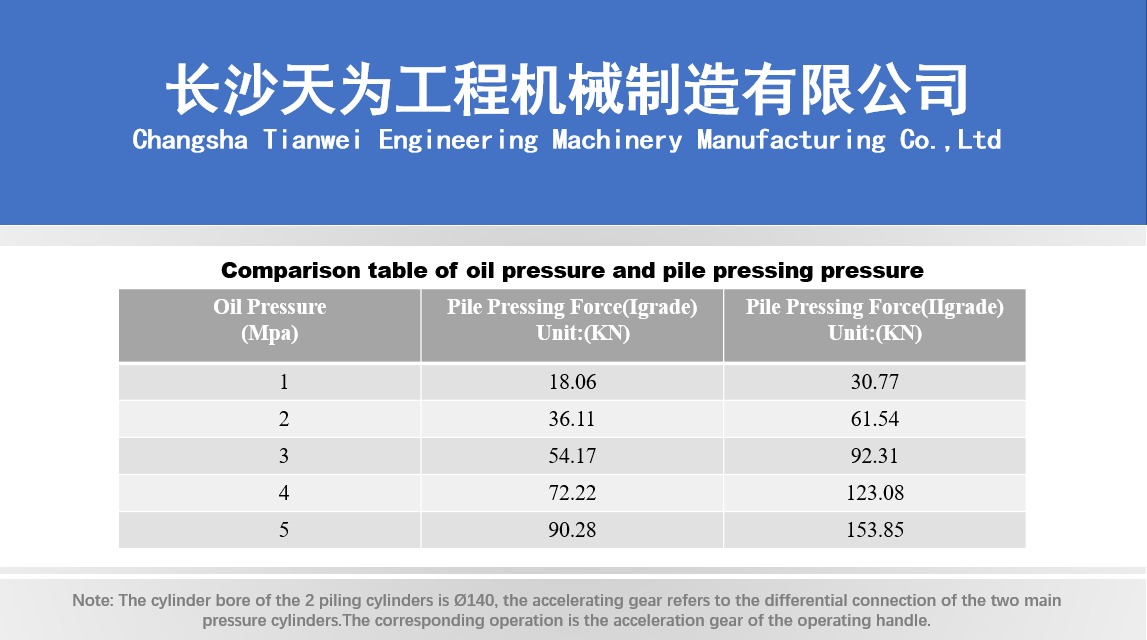

- The hydraulic system adopts a 24MPa rated pressure design, ensuring stable power output through precise matching of oil pressure and pile driving force (e.g., 24MPa corresponds to a maximum pile driving force of 738.48KN).

- The electrical system, with 41kw power and 380V voltage, is compatible with common power supply environments at construction sites, and the 80A rated current reduces line load.

- The "precision" in details highlights ingenuity: lubrication cycles are strictly differentiated (the guide wheels of the pile driving box are oiled every 3 days, and the longitudinal and lateral traveling wheels are oiled every 10 days), greatly improving the convenience of daily maintenance.

The delivery of ZYC60 is not only the launch of a product but also a vivid practice of our company's concept of "Specialized, refined, characteristic, and innovative! The delivery of ZYC60 60-ton small pile driver interprets our company's concept of 'precise equipment manufacturing'". In the future, this equipment will continue to serve small and micro scenarios such as municipal pipe network support, rural house foundations, and community fence piles, leveraging lightweight strength to drive efficient upgrades in foundation construction.

(Note: For the core parameter table of ZYC60, please refer to the "Weight Breakdown Table" and "Oil Pressure and Pile Driving Force Comparison Table" in the manual. For detailed technical support, please contact customer service to obtain the full version of the manual.)
