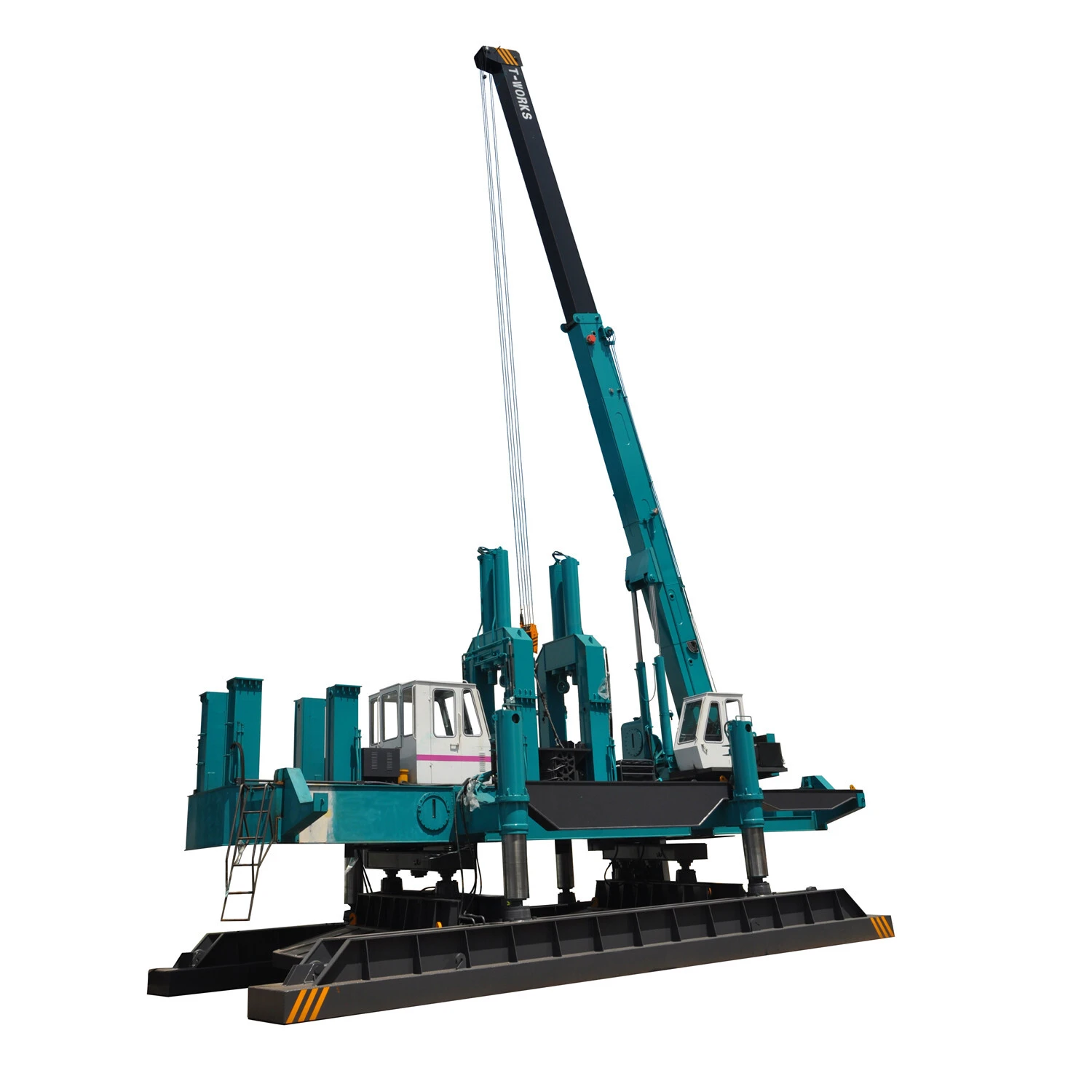

Multi-choices and simple instruction for hydraulic static pile driver by T-works
As one of the biggest exporter for piling machinery in China, the hydraulic static pile driver has been popular in the market for over 20 years without noise or vibration. Afterso many years continuous updates and upgrades, the equipment has shifted from top pressing to embracing-holding pressing, with piling capacity ranging from 60 tons to 1200 tons to choose from. The side pile structures have also become more diverse, and there are also different ways to stack counterweights. Today, we will provide customers with a more intuitive introduction through heart pictures. Welcome to visit our factory and keep contact with us !
Model for choose:
Small modesl : ZYC60, ZYC80, ZYC100, ZYC120, ZYC150, ZYC180,
Middle models : ZYC220, ZYC260, ZYC300,ZYC360,ZYC460,ZYC600,
Bigger models : ZYC680,ZYC860,ZYC960,ZYC1060,ZYC1260
As a professional manfuacturer and one of the biggest exporter for hydraulic static pile driver in China, we have verious choose for customers, in different side mechanis, different counterweight location way, different clamping size of pile , and so on.Welcome to visit our factory and send inquiry to us anytime!
1. The following instruction is the different side mechanism for better understanding .
1) With fixed side mechanism , counterweight can not be located under crane
2) Inserted side mechanism prepared and counterweight can be located under crane
3) Fixed side mechanism with counterweight located under crane
4) Inserted side mechanism(Removable side mechanism) with counterweight under crane
5) For small models, like 60ton to 260ton, Automatic outrigger (automatic supporting legs ) and Attachable side mechanism are good choices, as its side distance to the wall is only 350mm and very convenient for transporting machine from site to site.
