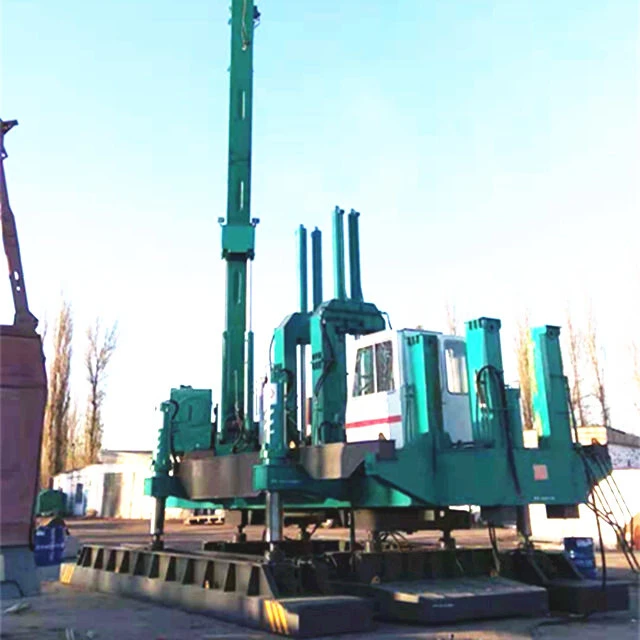

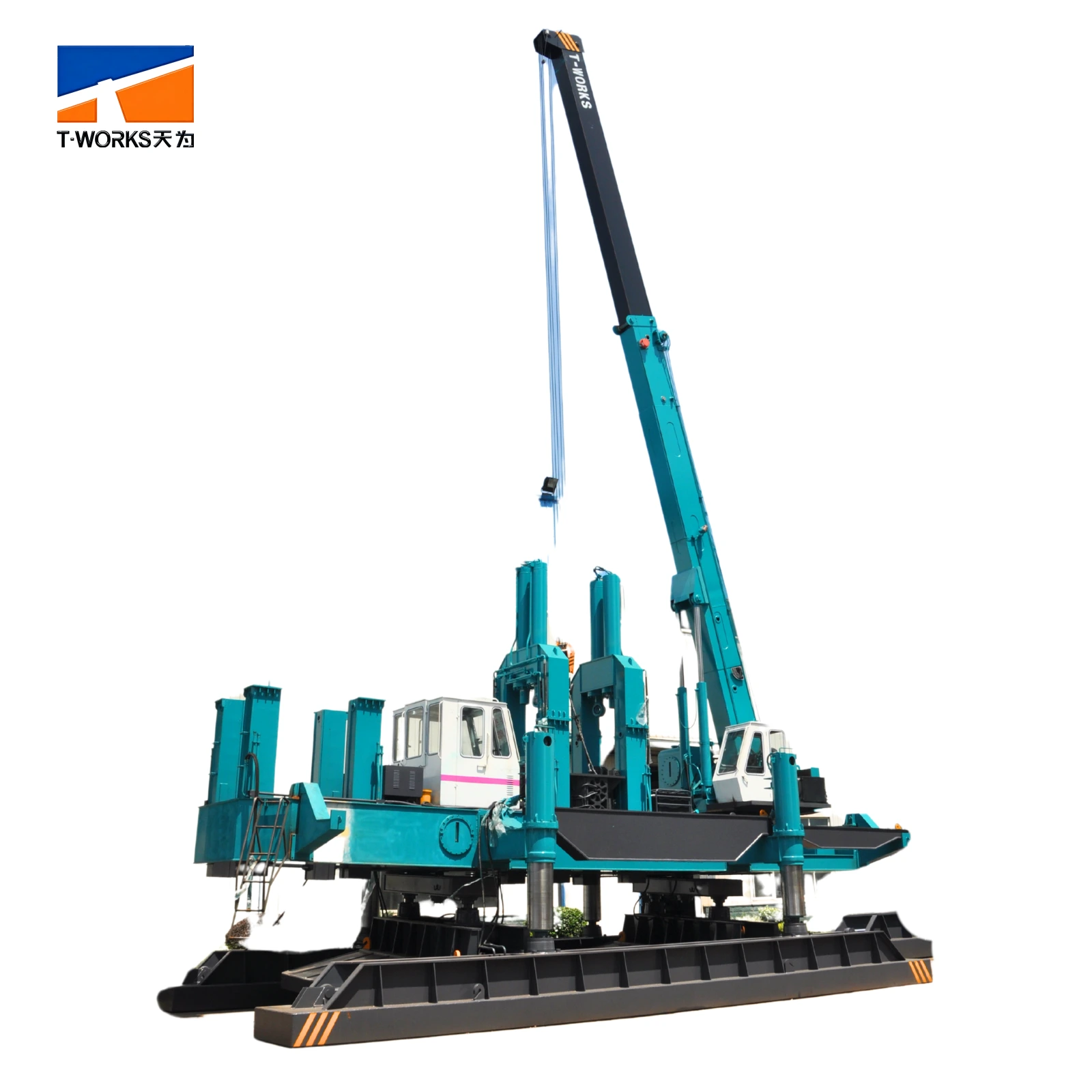

Used Hydraulic Static Pile Driver for Concrete Pile Foundation Construction
The T-works hydraulic static pile driver is designed for pressing precast concrete piles into the ground using continuous hydraulic pressure rather than impact driving. It is suitable for foundation construction in soft soil, clay and sand, especially where construction noise and vibration need to be controlled. The machine supports compatible round and square concrete piles, with a maximum round pile size of 600 mm and square pile size of 500 mm according to the current product specifications. Side piling mechanisms are also available for different project requirements.
T-works relying on years of market experience and strong scientific research technology, successfully developed Used construction machinery for concrete pile driving of building piling foundation. Used construction machinery for concrete pile driving of building piling foundation starting from the user experience and using strong research and development capabilities, it can effectively solving the pain points of the industry. T-works hope that we can respond more rapidly to changes in the industry with a deeper understanding of the market needs. We believe that we will stand out in the global market with our finest-quality products and unparalleled services.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| UNIQUE SELLING POINT: | High operating efficiency | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | Viet Nam, Philippines, Indonesia, Russia, Thailand, Malaysia, Bangladesh, Ukraine | After-sales Service Provided: | Overseas service center available |
| Brand: | T-works | Leadtime: | 30days |
| Suitable max round pile: | 600mm | Suitable max square pile: | 500mm |
| Side mechanism: | 2 types available for customer | Quality garantee: | 12 months |
Used construction machinery for concrete pile driving of building piling foundation
1. What is the machine doing?
Our static pile driver is used to jack in pile driving for piling jobs by the weight itself, ex: The model is ZYC120, the total weight will be 120ton, the force on the pile is 1200KN when jacking-in the pile. It can drive any shape of PHC piles without noise and vibration, so do steel tube,triangle pile,sheet pile and so on. the pile size is from 150mm to 1000mm.
2.Where can be used?
It is very good for coastline cities for civil construction jobsite. maybe you are very tired with the complaint from the government and citizens about the noise or pollution or vibration that the hammers make,but this static pile driver can solve all the problems you faced now. Static pile driver features with low-noise and low-vibration piling,controled by hydraulic system. very suitable to do piling in cities.
3. How does it works and move?
The static pile driver press the pile by embracing clamping box controled by hydraulic system speedly. The working effcienry can reach up to 600meters per day. Movement mechanism is also controled by hydraulic system called short boat and long boat as step walking, very stable,hard to sink to the ground.
4. Our advantages:
1) We have over ten years in manufacturing the static pile driver,accumulated much experiences on R & D in this area.
2) Over 20 patents in improving the design.
3) Exported more than 600units overseas.
4) Perfect after-sale service all ove the world.
5) Quality controlled spare parts for the machine to ensure the quality.
6) We are only the manufacturer who just produce this static pile driver in China,more attention,better quality that can ensure.
7) The piling capacity is from 60ton to 1200ton, square pile from 150mm to 650mm, round pile from 300mm to 800mm.
Is This Hydraulic Static Pile Driver Suitable for Your Project?
This machine may be suitable if you need:
Concrete pile foundation construction
Low-noise piling
Low-vibration piling
Pile sizes up to the specified machine capacity
Construction in soft soil, clay or sand
Urban or noise-sensitive foundation projects
Customized side piling configuration
5. Application : Clay,soft soil,sand layer etc;
Noise regulated urban area; vibration regulated areas,
Such as near old buildings,precision instrument buildings,subway,overpass and so on.
Meanwhile,we can provise special design for customer's requirements.
6. Unique design:
1) Clamping box:
2) Roller and clamps:
3) More choices for side mechanism:
4) Special design for cylinder of leg
5) Reasonable distribution for hydraulic system
6) Better design for crane
7. Technical Parameters:
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
To train operating,maintenance and construction people for our customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
Recommended FAQ
1.What pile sizes can this machine handle?
The current product information specifies a maximum round pile size of 600 mm and a maximum square pile size of 500 mm. Confirm the final configuration with T-works before ordering.
2.Is hydraulic static piling suitable for urban construction?
Yes. Its low-noise and low-vibration operating characteristics make hydraulic static piling suitable for many urban and noise-sensitive construction projects, subject to site and soil conditions.
3.Can the machine drive concrete piles?
Yes. The product is positioned for concrete pile foundation construction and can be configured for compatible concrete pile types.
4.Does the machine have side piling capability?
Yes. The current product information states that two types of side piling mechanisms are available.
5.Does T-works provide overseas service?
Yes. T-works lists overseas service support and service locations in several countries.
