T-works - ZYC80 to ZYC120 New Mini Jack in pile machine for small jobsite inside of warehouse
ZYC80 to ZYC120 New Mini Jack in pile machine for small jobsite inside of warehouse has obtained unanimous favorable comments from market.The quality assurance of it can be achieved with certification.Moreover,to take care of different needs, product customization is provided.
With immense market knowledge, we have been able to provide optimum quality ZYC80 to ZYC120 New Mini Jack in pile machine for small jobsite inside of warehouse. High-end technologies are adopted to manufacture the product.When the product is manufactured and used in the field(s) of Pile Drivers, its stability and advantages can be fully played out. Therefore, for those buyers looking to buy ZYC80 to ZYC120 New Mini Jack in pile machine for small jobsite inside of warehouse in bulk quantity for their business, buying them from a reputable manufacturer would be a wise choice.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 5m |
| Place of Origin: | Hunan, China | Brand Name: | T-WORKS |
| Weight: | 120T | Dimension(L*W*H): | according to the model |
| Warranty: | 1 Year, 12months | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service | Made by T-works: | From Changsha Tianwei |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 8T lifting capacity available for customers |
| Suitable pile: | Tube, concrete pile, sheet pile,PHC pile,H-beam | Suitable pile size: | Max 350mm for round, 350mm for square |
| Suitable pile shape: | Round, square , triangle, or irregular shape | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| New foundation machine: | To replacing hydraulic hammer or diesel hammer for pile driving | Local Service Location: | Viet Nam, Philippines, Indonesia, Russia, Thailand, Malaysia, Romania, Bangladesh, Ukraine |
| Certification: | ISO9001 |

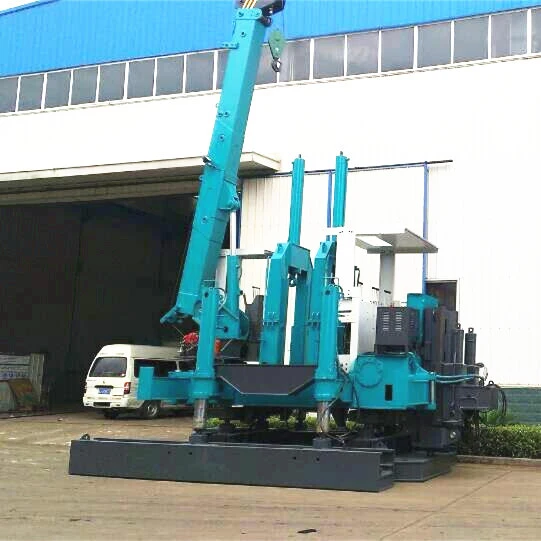

ZYC80 to ZYC120 New Mini Jack in pile machine for small jobsite inside of warehouse or workshop by T-works
This 100tons machine can work in small job site and we designed two clamping box which is for side piling mechanism.
the main parts are as following:
1. 4 lots of clamp chosen from optional specification of pile applied;
2. 2 x A7V58 oil pumps for main machine and 1 x 25YCY for crane.;
3. 100m cable, 1 set of tools and lifting rigs supplied with the machine;
4.Full filled with original wear-resisting hydraulic oil.
ITEM
ZYC120
rate center pile-driving force(t)
120
max square pile spec(mm)
350
max circle pile spec(mm)
350
max lift length for center and side pile(m)
10/8
Max lift weight(t)
8
pile-driving speed(m/min)
4.0
center piling stroke(m)
1.4
side piling stroke(m)
1.0
longitudinal shift pace
1.5
horizontal shift pace(m)
0.4
rise & fall stroke(m)
1.45
max side pile-driving force(t)
40
side piling space(m)
0.45
corner piling space (m)
0.9
Power of motor(kw)
59
overall working size(m)
10X4.0
the main advantages are as below:
1.Attachable side & corner piling mechanism what can be dismantled, 3 clamping cylinders for side pile;
2.Separately clamping box and clamping cylinders, 4 clamping cylinders for center pile;
3.Expansible supporting leg, solid structure, high reliability;
4.Clamps for side piles are common used;
5.This type of jack-in machine can be loading and off loading by itsself,there is no need to dismantle the movement mechanism during transportation.
pictures attached as following:
T-works is a strong team with inovative engineers . Patents are the best instruction for us.
Our machine is popular in many countries, like Singapore, Malaysia, Indonesia, Thailand, Vietnam, Cambodia,Myanmar , Ukraine, Russia and so on. We are always grateful for all customers' trust and consist to supply the best quality for all of you.
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
♣ To train operating,maintenance and construction people for our customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
