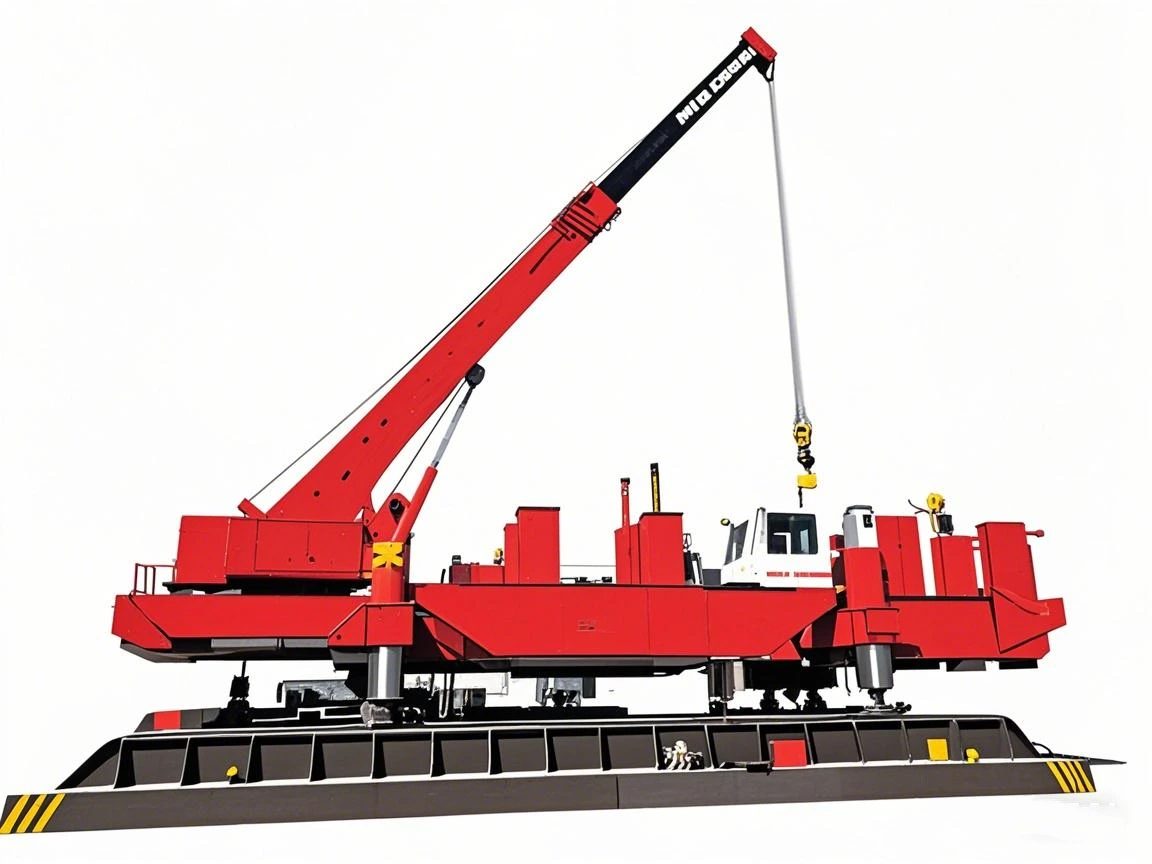

T-works new jack in pile machine mini ZYC80 for concrete pile
T-works new jack in pile machine zyc80 for concrete pile are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
After years of painstaking research, T-works’s technicians have successfully developed T-works new jack in pile machine zyc80 for concrete pile. It is designed to cater to the changing demands and requisites of customers. In the future, T-works will rely on strong R&D capabilities to update and iterate the original products, and strive to provide customers with better quality products. Not only that, the company will also uphold the service concept to Improve services and strive to provide services that exceed customer expectations.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 8.7 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 80000 kg | Dimension(L*W*H): | 5.4*3.9*2.7 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 8T or 12T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile |
| Suitable pile size: | Max 400mm for round,400mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic pressure to jacking in pile | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| After-sale service: | Engineer available any time |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 80 | 100 | 120 | 150 | 180 | 220 | 260 | ||
| Rated piling pressure(KN) | 800 | 1000 | 1200 | 1500 | 1800 | 2200 | 2600 | |
| Piling speed(m/min) | Fast | 4.5 | 6.5 | 6.5 | 6.5 | 8.7 | 7.2 | 7.2 |
| Low | 2.2 | 3.0 | 3.0 | 3.0 | 2.7 | 1.8 | 1.8 | |
| Piling stroke(m) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.9 | 1.9 | |
| Pace(m) | Longitudinal | 1.5 | 1.5 | 1.5 | 1.5 | 1.6 | 2.4 | 2.4 |
| Horizontal | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | |
| Angle range(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Rise stroke (m) | 1.25 | 1.45 | 1.45 | 1.45 | 1.60 | 1.0 | 1.0 | |
| Square pile (mm) | Max | 300 | 350 | 350 | 400 | 400 | 500 | 500 |
| Circle pile (mm) | Max | 300 | 350 | 350 | 400 | 400 | 500 | 500 |
| Side piling space(mm) | 300 | 300 | 300 | 300 | 300 | 950 | 950 | |
| Corner piling space(mm) | 600 | 600 | 600 | 600 | 600 | 1900 | 1900 | |
| Lifting weight(t) | 5.0 | 5.0 | 8.0 | 8.0 | 8.0 | 8.0 | 12.0 | |
| Lifting pile's lengh(m) | 8.0 | 8.0 | 12.0 | 12.0 | 12.0 | 12.0 | 14.0 | |
| Power(KW) | Piling | 18.5 | 37 | 37 | 37 | 60 | 60 | 60 |
| Lifting | 11 | 11 | 22 | 22 | 22 | 22 | 30 | |
| Main dimension (m) | Work length | 5.4 | 8.0 | 9.0 | 9.0 | 9.3 | 10 | 11.3 |
| Work width | 3.9 | 4.2 | 4.7 | 4.7 | 4.7 | 5.5 | 6.3 | |
| Transport height | 2.7 | 2.7 | 2.9 | 2.9 | 2.9 | 3.0 | 3.3 | |
| Total weight(T)≥ | 80 | 100 | 120 | 150 | 180 | 220 | 260 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
