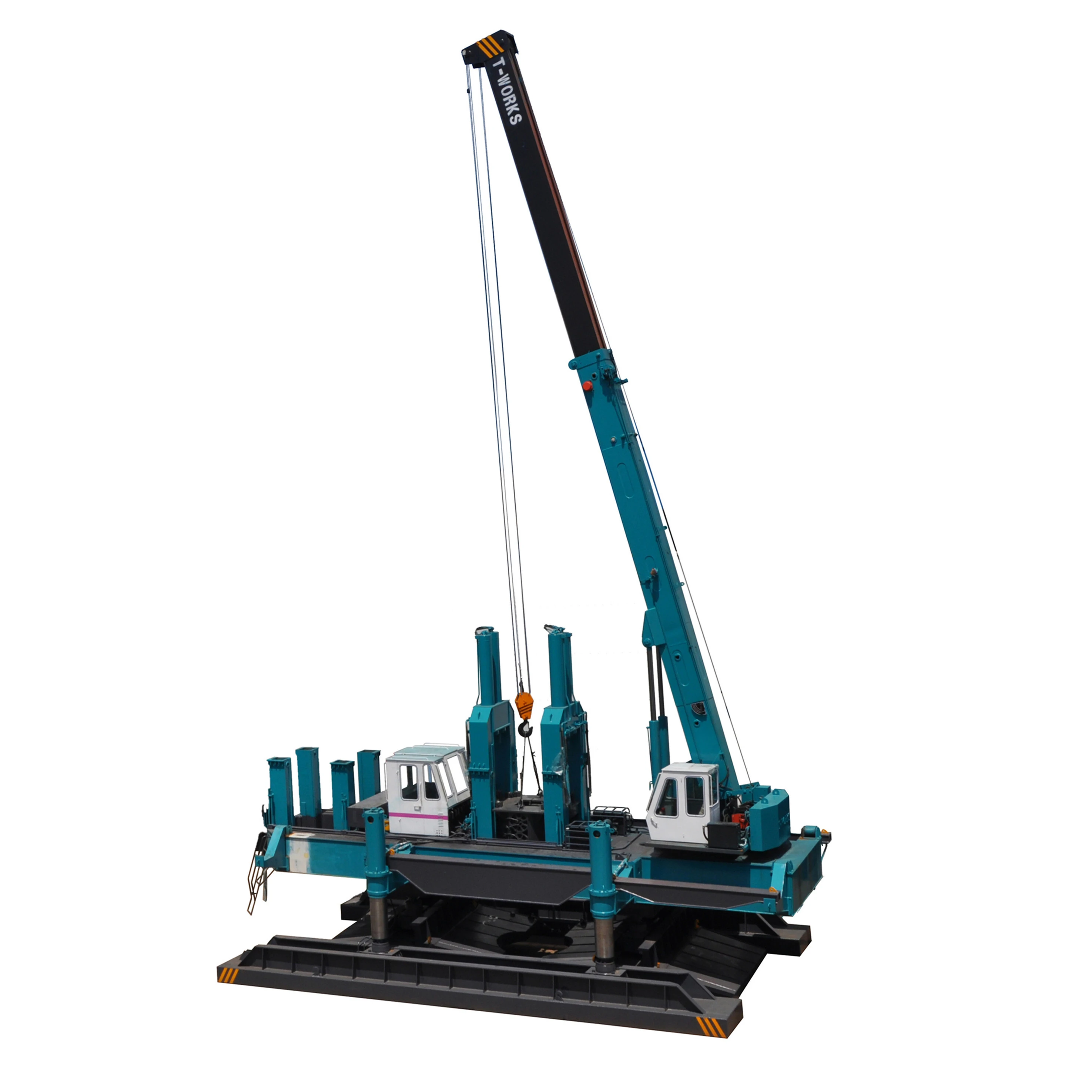

T-works ZYC260 hydraulic pile injection machine for concrete pile driving
T-works hydraulic pile injection machine zyc260 for concrete pile driving has been widely acclaimed for its competitive characteristics because we have been subject to meeting the industry standard.The fields of application include Hydraulic Static Pile Driver.
T-works hydraulic pile injection machine zyc260 for concrete pile driving companies spend so much time coming up with various products to reach diverse consumer needs. T-works can make your T-works hydraulic pile injection machine zyc260 for concrete pile driving famous and visible in the eyes of your target buyers and get a great response from them. Since established, T-works have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of 'honesty & integrity', which ensures that the most credible services are delivered to every customer.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 7.2 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 260000 kg | Dimension(L*W*H): | 11.3*6.3*3.0 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 8T or 12T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile |
| Suitable pile size: | Max 400mm for round,400mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic pressure to jacking in pile | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| After-sale service: | Engineer available any time |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 180 | 260 | 300 | 360 | 460 | 600 | 680 | ||
| Rated piling pressure(KN) | 1800 | 2800 | 3000 | 3600 | 4600 | 6000 | 6800 | |
| Piling speed(m/min) | Fast | 8.7 | 7.2 | 7.2 | 7.8 | 9.0 | 7.9 | 9.0 |
| Low | 2.7 | 1.8 | 1.8 | 1.9 | 1.6 | 1.4 | 1.0 | |
| Piling stroke(m) | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | |
| Pace(m) | Longitudinal | 2.4 | 2.4 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Horizontal | 0.6 | 0.6 | 0.56 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Angle range(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Rise stroke (m) | 1.6 | 1.6 | 1..0 | 1.1 | 1.1 | 1.2 | 1.2 | |
| Square pile (mm) | Max | 400 | 500 | 500 | 600 | 600 | 600 | 800 |
| Circle pile (mm) | Max | 400 | 500 | 500 | 500 | 500 | 500 | 550 |
| Side piling space(mm) | 300 | 450 | 450 | 1250 | 1250 | 1380 | 1380 | |
| Corner piling space(mm) | 600 | 900 | 900 | 2500 | 2500 | 2800 | 2800 | |
| Lifting weight(t) | 8.0 | 12.0 | 12.0 | 16.0 | 16.0 | 20.0 | 25.0 | |
| Lifting pile's lengh(m) | 12.0 | 14.0 | 14.0 | 15.0 | 15.0 | 15.0 | 17.0 | |
| Power(KW) | Piling | 60 | 60 | 60 | 74 | 111 | 111 | 111 |
| Lifting | 22 | 22 | 22 | 30 | 30 | 30 | 30 | |
| Main dimension (m) | Work length | 9.5 | 11.3 | 12 | 12.7 | 13 | 13.8 | 14 |
| Work width | 4.7 | 5.5 | 6.1 | 7.1 | 7.4 | 8.12 | 8.3 | |
| Transport height | 3.0 | 3.0 | 3.1 | 3.15 | 3.25 | 3.3 | 3.3 | |
| Total weight(T)≥ | 180 | 260 | 300 | 360 | 460 | 600 | 680 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
