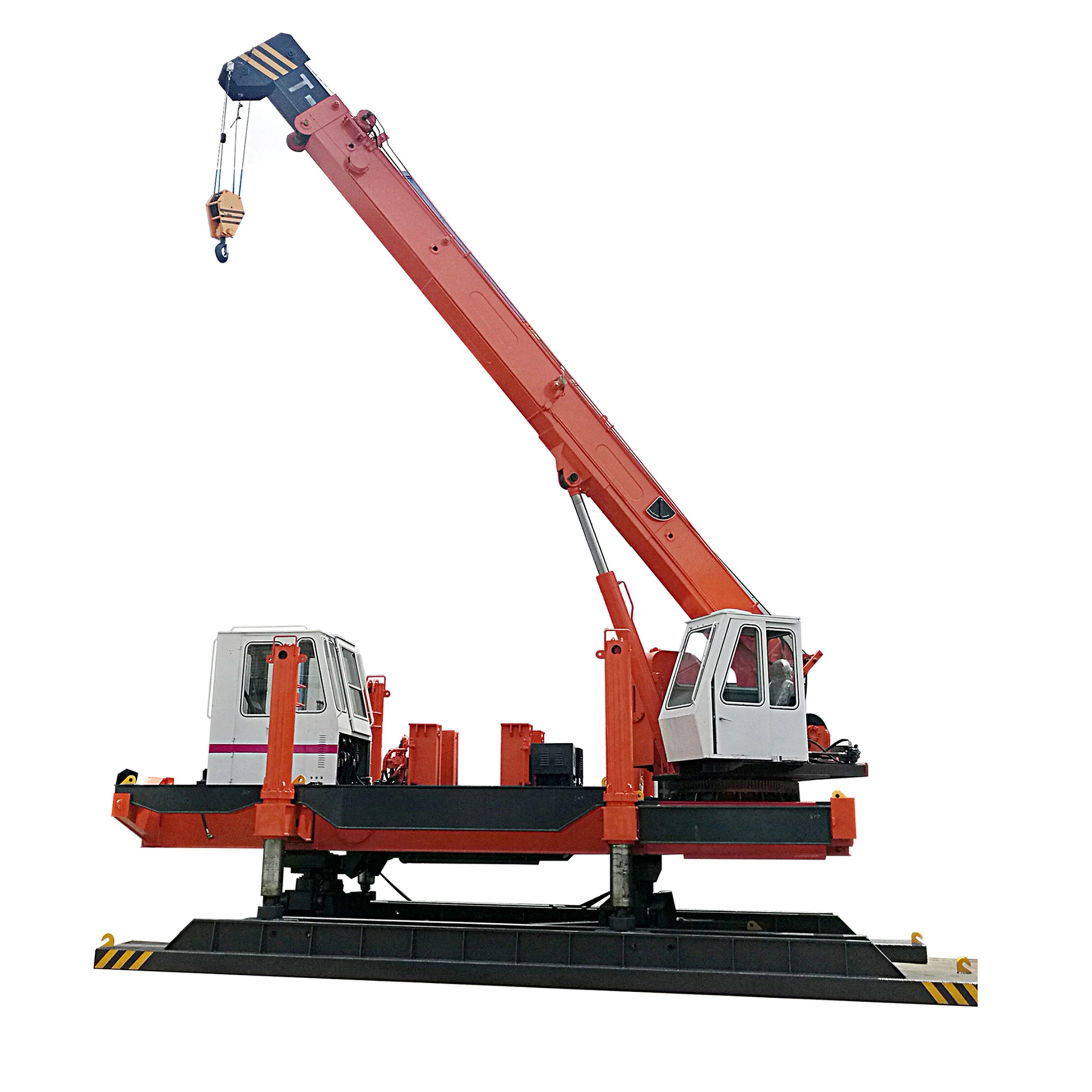

T-works mini piling machine ZYC100 for concrete pile
The successful research and development of the T-works mini piling machine ZYC100 for concrete pile not only deeply analyzes the actual needs of the target customers, but also combines its own superior resources.It can be extensively used for Pile Drivers.
With the help of our technicians and workers,T-works has finally developed the quality-guaranteed product. The product is called T-works mini piling machine ZYC100 for concrete pile. The product is characterized by multiple advantages.Its application ranges have been expanded to the Pile Drivers. T-works hope that we can respond more rapidly to changes in the industry with a deeper understanding of the market needs. We believe that we will stand out in the global market with our finest-quality products and unparalleled services.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 6.5 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 100000 kg | Dimension(L*W*H): | 8.0*4.2*2.7 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 8T or 12T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile |
| Suitable pile size: | Max 400mm for round,400mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic pressure to jacking in pile | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| After-sale service: | Engineer available any time |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 80 | 100 | 120 | 150 | 180 | 220 | 260 | ||
| Rated piling pressure(KN) | 800 | 1000 | 1200 | 1500 | 1800 | 2200 | 2600 | |
| Piling speed(m/min) | Fast | 4.5 | 6.5 | 6.5 | 6.5 | 8.7 | 7.2 | 7.2 |
| Low | 2.2 | 3.0 | 3.0 | 3.0 | 2.7 | 1.8 | 1.8 | |
| Piling stroke(m) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.9 | 1.9 | |
| Pace(m) | Longitudinal | 1.5 | 1.5 | 1.5 | 1.5 | 1.6 | 2.4 | 2.4 |
| Horizontal | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | |
| Angle range(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Rise stroke (m) | 1.25 | 1.45 | 1.45 | 1.45 | 1.60 | 1.0 | 1.0 | |
| Square pile (mm) | Max | 300 | 350 | 350 | 400 | 400 | 500 | 500 |
| Circle pile (mm) | Max | 300 | 350 | 350 | 400 | 400 | 500 | 500 |
| Side piling space(mm) | 300 | 300 | 300 | 300 | 300 | 950 | 950 | |
| Corner piling space(mm) | 600 | 600 | 600 | 600 | 600 | 1900 | 1900 | |
| Lifting weight(t) | 5.0 | 5.0 | 8.0 | 8.0 | 8.0 | 8.0 | 12.0 | |
| Lifting pile's lengh(m) | 8.0 | 8.0 | 12.0 | 12.0 | 12.0 | 12.0 | 14.0 | |
| Power(KW) | Piling | 18.5 | 37 | 37 | 37 | 60 | 60 | 60 |
| Lifting | 11 | 11 | 22 | 22 | 22 | 22 | 30 | |
| Main dimension (m) | Work length | 5.4 | 8.0 | 9.0 | 9.0 | 9.3 | 10 | 11.3 |
| Work width | 3.9 | 4.2 | 4.7 | 4.7 | 4.7 | 5.5 | 6.3 | |
| Transport height | 2 | 2.7 | 2.9 | 2.9 | 2.9 | 3.0 | 3.3 | |
| Total weight(T)≥ | 80 | 100 | 120 | 150 | 180 | 220 | 260 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
