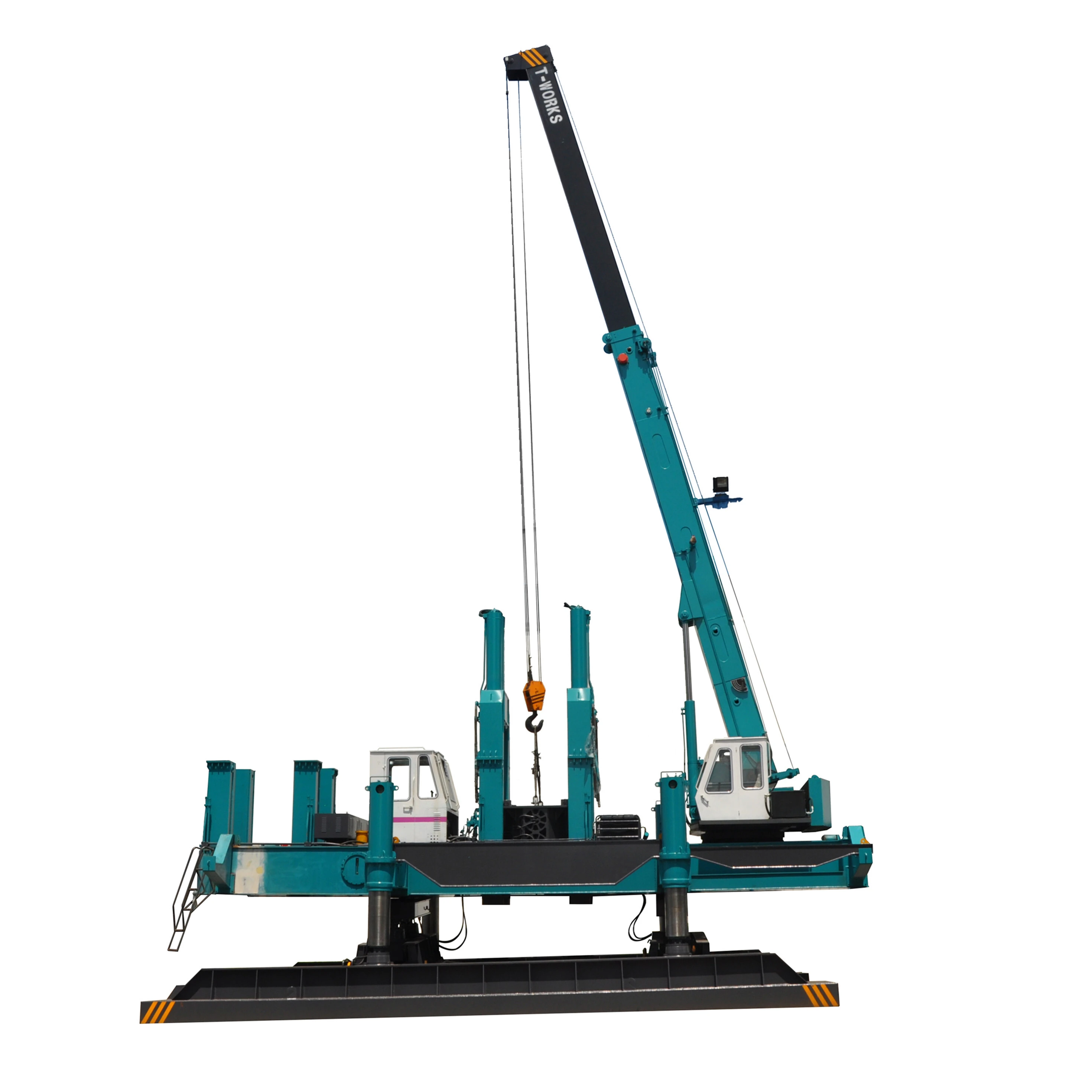

T-works ZYC460 zyc500 ZYC600 used piling rig for tubes and pipes and concrete pile
The research and development of T-works ZYC460 zyc500 ZYC600 used piling rig for tubes and pipes and concrete pile actively absorb the advanced manufacturing technology and production technology of excellent domestic and foreign companies.Moreover,customized product is also offered to meet specific requirements of customers.
Technologies matter a lot in the manufacturing process of the product. By applying technology, we have successfully upgraded the product.It is popular in the application scenario(s) of Pile Drivers now. It turns out that the application of the technology plays an important role in deciding the performance of the product. At present, it can be widely seen in the field(s) of Pile Drivers. T-works will continue to work hard to improve our capabilities in R&D strength and technologies because they are the core competitiveness of our company. We aim to provide customers with the most satisfying and cost-effective products with our full efforts.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 8.5 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 600000 kg | Dimension(L*W*H): | 13.8*12*3.3 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 16T or 20T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile |
| Suitable pile size: | Max 600mm for round,550mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic pressure to jacking in pile | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| After-sale service: | Engineer available any time |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 180 | 260 | 300 | 360 | 460 | 600 | 680 | ||
| Rated piling pressure(KN) | 1800 | 2800 | 3000 | 3600 | 4600 | 6000 | 6800 | |
| Piling speed(m/min) | Fast | 8.7 | 7.2 | 7.2 | 7.8 | 9.0 | 7.9 | 9.0 |
| Low | 2.7 | 1.8 | 1.8 | 1.9 | 1.6 | 1.4 | 1.0 | |
| Piling stroke(m) | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | |
| Pace(m) | Longitudinal | 2.4 | 2.4 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Horizontal | 0.6 | 0.6 | 0.56 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Angle range(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Rise stroke (m) | 1.6 | 1.6 | 1..0 | 1.1 | 1.1 | 1.2 | 1.2 | |
| Square pile (mm) | Max | 400 | 500 | 500 | 600 | 600 | 600 | 800 |
| Circle pile (mm) | Max | 400 | 500 | 500 | 500 | 500 | 500 | 550 |
| Side piling space(mm) | 300 | 450 | 450 | 1250 | 1250 | 1380 | 1380 | |
| Corner piling space(mm) | 600 | 900 | 900 | 2500 | 2500 | 2800 | 2800 | |
| Lifting weight(t) | 8.0 | 12.0 | 12.0 | 16.0 | 16.0 | 20.0 | 25.0 | |
| Lifting pile's lengh(m) | 12.0 | 14.0 | 14.0 | 15.0 | 15.0 | 15.0 | 17.0 | |
| Power(KW) | Piling | 60 | 60 | 60 | 74 | 111 | 111 | 111 |
| Lifting | 22 | 22 | 22 | 30 | 30 | 30 | 30 | |
| Main dimension (m) | Work length | 9.5 | 11.3 | 12 | 12.7 | 13 | 13.8 | 14 |
| Work width | 4.7 | 5.5 | 6.1 | 7.1 | 7.4 | 8.12 | 8.3 | |
| Transport height | 3.0 | 3.0 | 3.1 | 3.15 | 3.25 | 3.3 | 3.3 | |
| Total weight(T)≥ | 180 | 260 | 300 | 360 | 460 | 600 | 680 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
