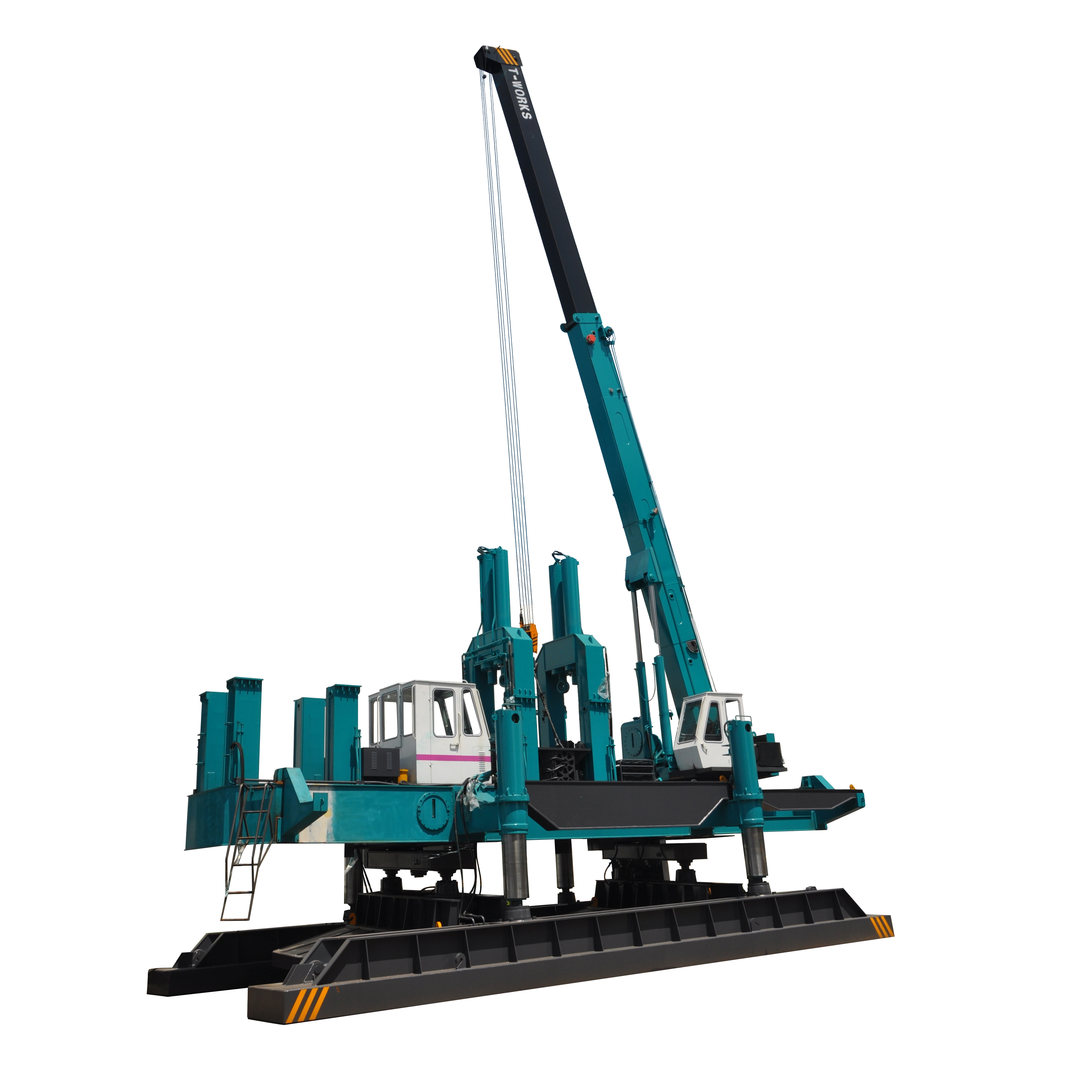

T-works - ZYC500 Precast concrete pile driving machine for building foundation piling Hydraulic Static Pile Driver
ZYC500 Precast concrete pile driving machine for building foundation piling from T-works adopt a variety of technologies in the production.The good market feedback and customer reputation have allowed it to stand out in the fierce market competition and better respond to the ever-changing market changes.What's more customized services are available.
T-works has become a recognized leader in the Pile Drivers industry with its high-quality product and excellent service. Manufactured following the strict management system, our ZYC500 Precast concrete pile driving machine for building foundation piling from T-works has gained a reliable quality. Before its launch, it has passed the tests based on international rules and is certified by several authorities. T-works is worth the investment for those customers seeking business opportunities. T-works intend to gather more industry talents because people's wisdom is driven source for us to advance forward. We plan to allocate a large amount of money for product development and technology upgrades. What's more, we aim to become an influential enterprise in the global market.
| Applicable Industries: | Construction works | Showroom Location: | Viet Nam, Indonesia, Thailand, Ukraine |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 7.1 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 500000 kg | Dimension(L*W*H): | 13m* 7.4m* 3.25m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Overseas service center available | Brand: | T-works |
| Leadtime: | 30days | Suitable max round pile: | 600mm |
| Suitable max square pile: | 500mm | Side mechanism: | 2 types available for customer |
| Quality garantee: | 12 months |
ZYC500 Precast concrete pile driving machine for building foundation piling from T-works
1. What is the machine doing?
Our static pile driver is used to concrete pile driving for building foundation piling or other types of piling jobs by the weight itself, ex: The model is ZYC120, the total weight will be 120ton, the force on the pile is 1200KN when jacking-in the pile. It can drive any shape of PHC piles without noise and vibration, so do steel tube,triangle pile,sheet pile and so on. the pile size is from 150mm to 1000mm.
2.Where can be used?
It is very good for coastline cities for civil construction jobsite. maybe you are very tired with the complaint from the government and citizens about the noise or pollution or vibration that the hammers make,but this static pile driver can solve all the problems you faced now. Static pile driver features with no noise,no pollution,controled by hydraulic system. very suitable to do piling in cities.
3. How does it works and move?
The static pile driver press the pile by embracing clamping box controled by hydraulic system speedly. The working effcienry can reach up to 600meters per day. Movement mechanism is also controled by hydraulic system called short boat and long boat as step walking, very stable,hard to sink to the ground.
4. Our advantages:
1) We have over ten years in manufacturing the static pile driver,accumulated much experiences on R & D in this area.
2) Over 20 patents in improving the design.
3) Exported more than 600units overseas.
4) Perfect after-sale service all ove the world.
5) Quality controlled spare parts for the machine to ensure the quality.
6) We are only the manufacturer who just produce this static pile driver in China,more attention,better quality that can ensure.
7) The piling capacity is from 60ton to 1200ton, square pile from 150mm to 650mm, round pile from 300mm to 800mm.
5. Application : Clay,soft soil,sand layer etc;
Noise regulated urban area; vibration regulated areas,
Such as near old buildings,precision instrument buildings,subway,overpass and so on.
Meanwhile,we can provise special design for customer's requirements.
6. Unique design:
1) Clamping box:
2) Roller and clamps:
3) More choices for side mechanism:
4) Special design for cylinder of leg
5) Reasonable distribution for hydraulic system
6) Better design for crane

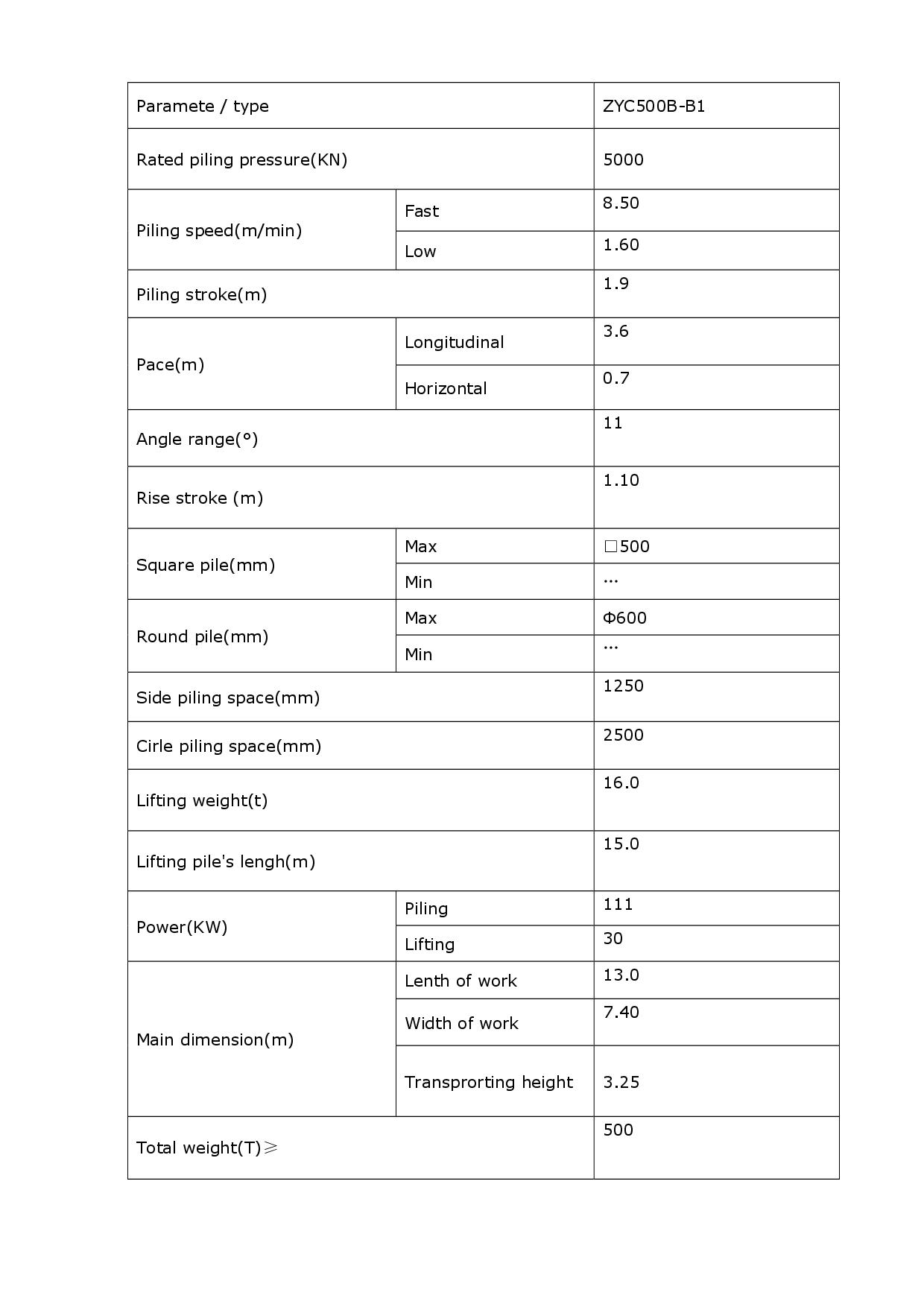

7. Technical Parameters:
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
To train operating,maintenance and construction people for our customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
