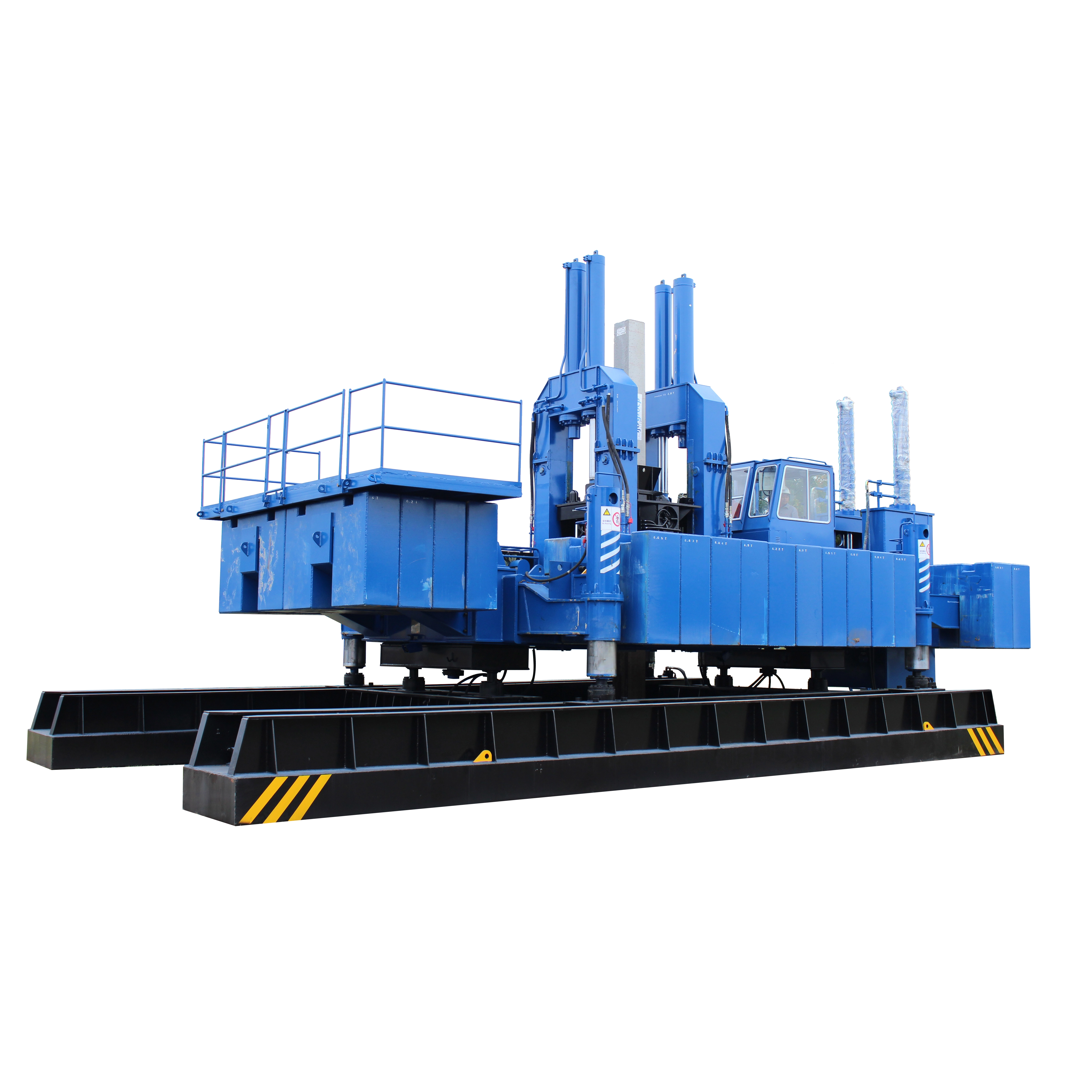

T-works - ZYC360 foundation piling jacking machine for PHC sheet pile or H-pile
Advanced technologies are applied to the product manufacturing process.In the field(s), such as Pile Drivers, ZYC360 foundation piling jacking machine for all kinds press PHC sheet pile or H-pile enjoys enhanced visibility and wide uses.
Our heavy investment in the product R&D has finally paid off. T-works has successfully rolled out a new product series, namely ZYC360 foundation piling jacking machine for all kinds press PHC sheet pile or H-pile. It is totally unique in several aspects including its appearance, features, and applications. It has been proved that high-end technologies can contribute to the high-efficiency manufacturing process.In the field(s) of Pile Drivers,ZYC360 foundation piling jacking machine for all kinds press PHC sheet pile or H-pile is widely accepted by users. T-works aims to become the most influential enterprise in the world. In order to achieve this goal, we will insist on introducing high-tech talents and learning international advanced technology, and strive to improve technical strength and gain the initiative in competition.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | high efficiency | Piling Speed(m/min): | 7.20m |
| Place of Origin: | Hunan, China | Brand Name: | T.works |
| Weight: | 360000 kg | Dimension(L*W*H): | 12.5m*7.15m*3.0m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Suitable pile: | Concrete precast pile,sheet pile,steel tube,H-pile | Suitable pile shape: | Sheet pile,round/square pile,triangle pile,H-pile |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Side piling mechanism: | 3types available for customer |
| Crane mounted: | from 5T or 8T available for customers | Suitable pile size: | Max 300mmfor round,300mm for square |
| New foundation machine: | A embracing pile driving method | New piling machine: | Adopt hydraulic to jacking in pile to avoid the noise and pollution |
| After-sale service: | Engineer available any time |
Hydraulic Static Driver machine foundation piling jacking in pile for all kinds press PHC sheet pile or H-pile
paramete / type/model | ZYC360 | |
Rated piling pressure(KN) | 3600 | |
(m/min) Piling speed | Fast | 7.20 |
Low | 1.10 | |
Piling stroke(m) | 1.90 | |
Pace(m) | Longitudinal | 3.60 |
Horizontal | 0.70 | |
Angle range(°) | 11 | |
Rise stroke (m) | 1.2 | |
(mm) Square pile | Max | 500 |
(mm) Circle pile | Max | 500 |
Side piling space(mm) | 1250 | |
Corner piling space(mm) | 2500 | |
Lifting weight(t) | 16.0 | |
Lifting pile's lengh(m) | 15.0 | |
Power(KW) | Piling | 74 |
Lifting | 30 | |
Main dimension(m) | Work length | 12.5 |
Work width | 7.15 | |
Transport height | 3.0 | |
Total weight(T)≥ | 360 | |
PRODUCTS
T-works will provide not only reliable piling machinery products butalso excellent and efficient service.
