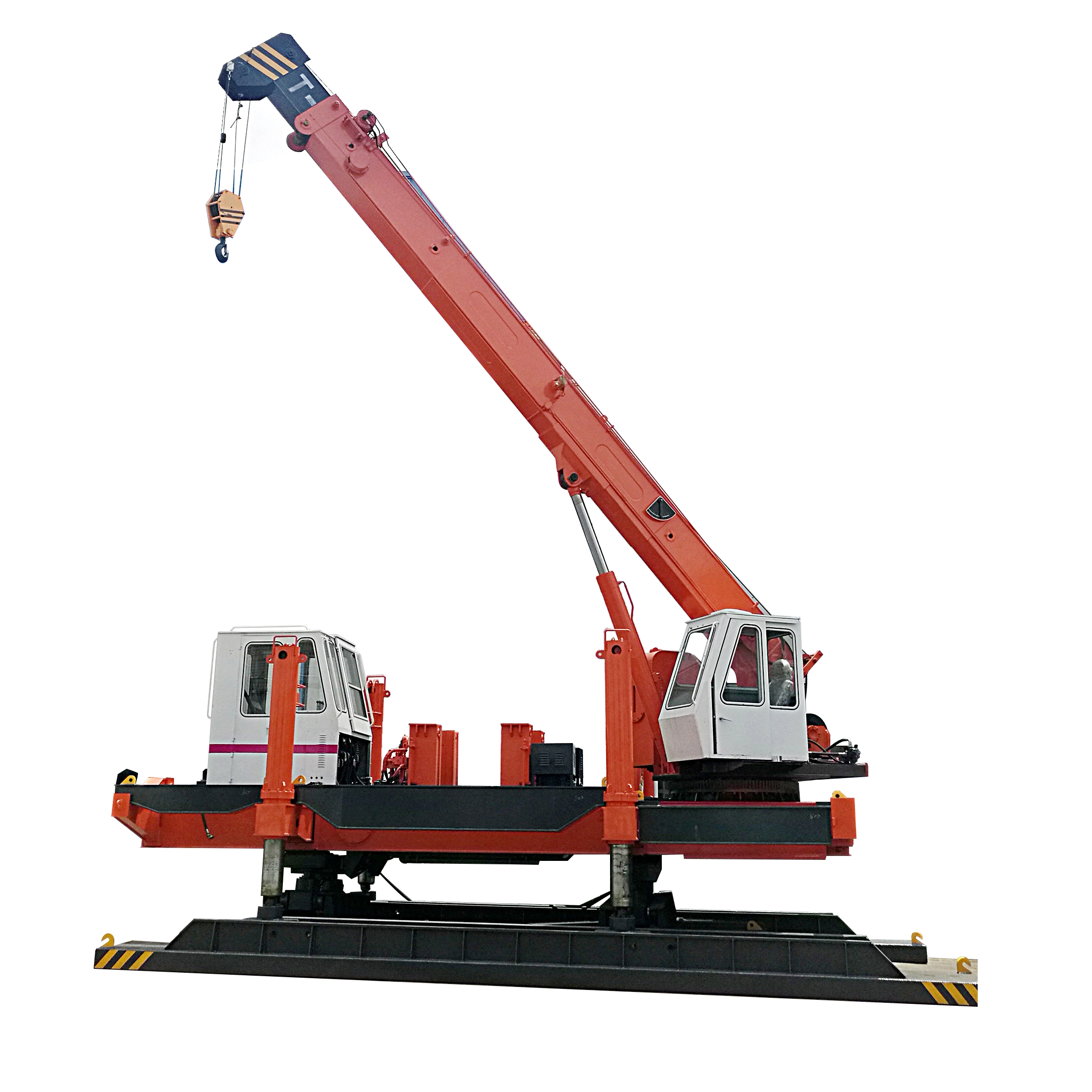

T-works - 120T Concrete Hydraulic Rotary Piling Rig Spun Pile Square Pile No Vibration Hydraulic Static Pile Driver1
Thanks to our committed and outstanding technical staff, our technologies have been upgraded to save more labor and cost. Its application ranges have been expanded a lot. At present, it is widely used in the field(s) of Pile Drivers.
T-works has a collection of 120T Concrete Hydraulic Rotary Piling Rig Spun Pile Square Pile No Vibration available from manufacturers around the world so if you'd like to buy some, do give a look. Innovation ability is the key to the core competitiveness of products. T-works will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 6.5 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 240 kg | Dimension(L*W*H): | 9.1*4.7*2.9 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 5T or 9T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile |
| Suitable pile size: | Max 350mm for round,350mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic pressure to jacking in pile | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| After-sale service: | Engineer available any time |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 80 | 100 | 120 | 150 | 180 | 260 | 300 | ||
| Rated piling pressure(KN) | 800 | 1000 | 1200 | 1500 | 1800 | 2600 | 3000 | |
| Piling speed(m/min) | Fast | 6.3 | 10.0 | 10.0 | 10.0 | 11.0 | 7.7 | 7.7 |
| Low | 3.00 | 2.00 | 3.00 | 3.00 | 2.70 | 1.80 | 1.80 | |
| Piling stroke(m) | 1.60 | 1.60 | 1.60 | 1.60 | 2.00 | 1.90 | 1.90 | |
| Pace(m) | Longitudinal | 1.50 | 1.60 | 1.60 | 1.60 | 1.50 | 2.40 | 2.40 |
| Horizontal | 0.40 | 0.50 | 0.50 | 0.50 | 0.60 | 0.60 | 0.60 | |
| Angle range(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Rise stroke (m) | 1.2 | 1.45 | 1.45 | 1.45 | 1.6 | 1.6 | 1.0 | |
| Square pile (mm) | Max | 300 | 350 | 350 | 350 | 500 | 500 | 500 |
| Circle pile (mm) | Max | 300 | 350 | 350 | 350 | 500 | 500 | 500 |
| Side piling space(mm) | 300 | 450 | 450 | 350 | 450 | 450 | 900 | |
| Corner piling space(mm) | 600 | 900 | 900 | 700 | 900 | 900 | 1800 | |
| Lifting weight(t) | 5.0 | 8.0 | 8.0 | 8.0 | 8.0 | 12.0 | 12.0 | |
| Lifting pile's lengh(m) | 8.0 | 12.0 | 12.0 | 12.0 | 12.0 | 14.0 | 14.0 | |
| Power(KW) | Piling | 22 | 37 | 37 | 37 | 60 | 60 | 60 |
| Lifting | 15 | 11 | 22 | 22 | 22 | 30 | 30 | |
| Main dimension (m) | Work length | 5.20 | 6.65 | 9.45 | 9.45 | 9.3 | 11.1 | 12.0 |
| Work width | 3.87 | 4.20 | 5.20 | 5.20 | 4.70 | 6.30 | 6.10 | |
| Transport height | 2.00 | 2.70 | 2.90 | 2.90 | 3.00 | 3.00 | 3.10 | |
| Total weight(T)≥ | 80 | 100 | 120 | 150 | 180 | 260 | 300 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
