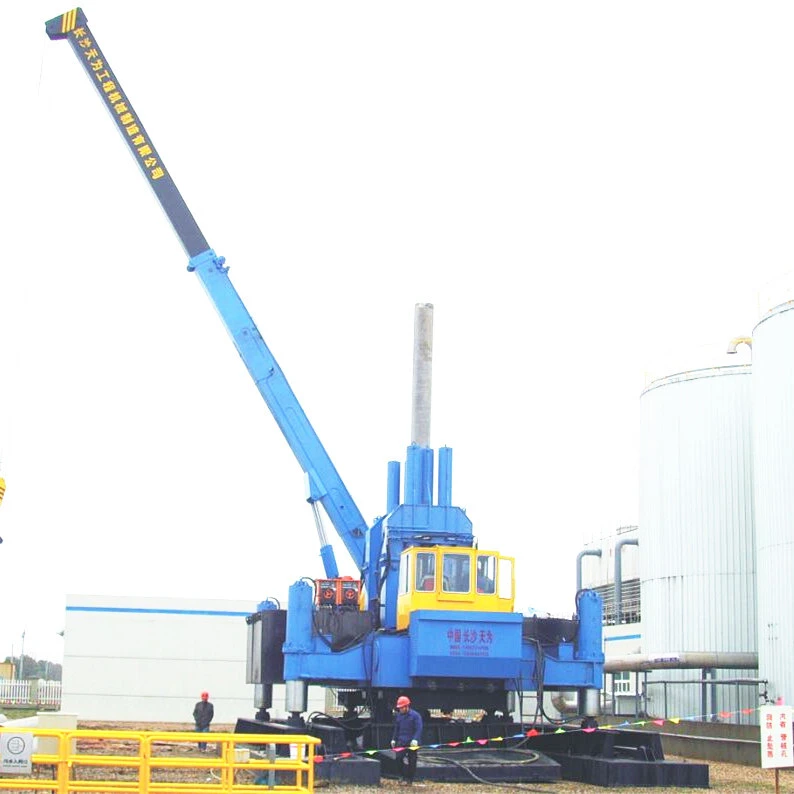

T-works - T-works ZYC360 Hydraulic Static Pile Driver for foundation piling Hydraulic Static Pile Driver
The latest technology improves the quality of T-works ZYC360 Hydraulic Static Pile Driver for foundation piling.So the product has already been used in a wide variety of applications like Pile Drivers.
T-works has a collection of T-works ZYC360 Hydraulic Static Pile Driver for foundation piling available from manufacturers around the world so if you'd like to buy some, do give a look. The T-works ZYC360 Hydraulic Static Pile Driver for foundation piling has the significance of taking a leap forward and injects new impetus into the development of the industry. We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our Hydraulic Static Pile Driver, Drilling rigs, Crawler dumper truck. Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing Pile Drivers quality. We believe that our product with so many advantages can bring benefits to all customers.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 8.6 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 360000 kg | Dimension(L*W*H): | 12.5m*7.0m*3.0m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas | Made by T-works: | From Changsha Tianwei |
| Suitable pile: | Concrete pile,precast pile,sheet pile,H-pile,tubes | Suitable pile shape: | Round/square pile,sheet pile,H-pile,triangle pile |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Side piling mechanism: | Available for customer |
| Suitable pile size: | Max 600mm for round, 550mm for square | Crane mounted: | 12T or 16T lifting capacity available for customers |
| New foundation machine: | To replacing hydraulic hammer or diesel hammer for pile driving |
Hydraulic Static Pile Driver for injection machine and jack in machine for founation piling
T-works is professional manufacturer for foundation & piling machinery with over ten years experiences.We have a large group of advanced people for R& D and after-sale service.Our main products are hydraulic static pile driver,bored pile drilling rig,piling load testing machine,rotary drilling rig,etc.We have exported over 500units of piling machinery abroad,such as Singapore,Malaysia,Indonesia,Brunei,Ukraine and so on.Our company follows the motto"Modesty,Sincerity and to be Excellent" and we are willing to serve all our customer and be good friends of them.
Hydraulic Static Pile Driver-ZYC Series
The pile driver is composed of clamping box, pile pressing mechanism, rise mechanism, travel mechanism, crane,hydraulic system, electric system and so on. It can finish all the pile lifting, pile pressing (including press side and corner pile), travel, and steering.
| Features for Hydraulic static pile driver: | |||
| Piling capacity | From 60tons to 1200tons by hydraulic pressure | ||
| Suitable pile shape | Spun pile,square pile,triangle pile,H-pile | ||
| Suitable pile | Can press concrete pile,steel tube,sheet pile and so on | ||
| Max pile it can press | From 150mm to 800mm | ||
| Piling method | Empracing type and top-pressing type,both can be. | ||
| Side piling mechanism | Empracing type and top-pressing type,both can be too,the nearest distance to the wall can be 400mm. | ||
| Crane capacity mounted | Crane capacity is from 5T to 25T which according to the model | ||
| Lifting length for crane | From 8meters to 16meters per each pile | ||
| Piling effciency | Can press the pile 500meters per day if the ground condition is ok | ||
| Operator needed for 1 unit of machine | 5 people needed for 1 unit of machine during working | ||
| Compare to diesel hammer | There is no noise,no pollution during working for hydraulic pile driver ,better to protect the piles | ||
| Applications | Clay, soft soil, sand layer, etc; Noise regulated urban area; Vibration regulated areas | ||
Special Design for Side piling :
Convenient for transportation:
Parameters for ZYC320B-B
| paramete / type | ZYC360 | |
| rated piling pressure(KN) | 3600 | |
| piling speed(m/min) | fast | 7.1 |
| low | 1.9 | |
| piling stroke(m) | 1.9 | |
| pace(m) | longitudinal | 3.6 |
| horizontal | 0.7 | |
| angle range(°) | 11 | |
| rise stroke (m) | 1.0 | |
| square pile(mm) | max | 500 |
| min | … | |
| cirle pile(mm) | max | 600 |
| min | … | |
| side piling space(mm) | 1250/550 | |
| cirle piling space(mm) | 2500/1200 | |
| lifting weight(t) | 12.0 | |
| lifting pile's lengh(m) | 14.0 | |
| power(KW) | piling | 74 |
| lifting | 30 | |
| main dimension(m) | lenth of work | 12.5 |
| width of work | 7.00 | |
| transprorting height | 3.00 | |
| total weight(T)≥ | 360 | |
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
♣ To train operating,maintenance and construction people for our customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
