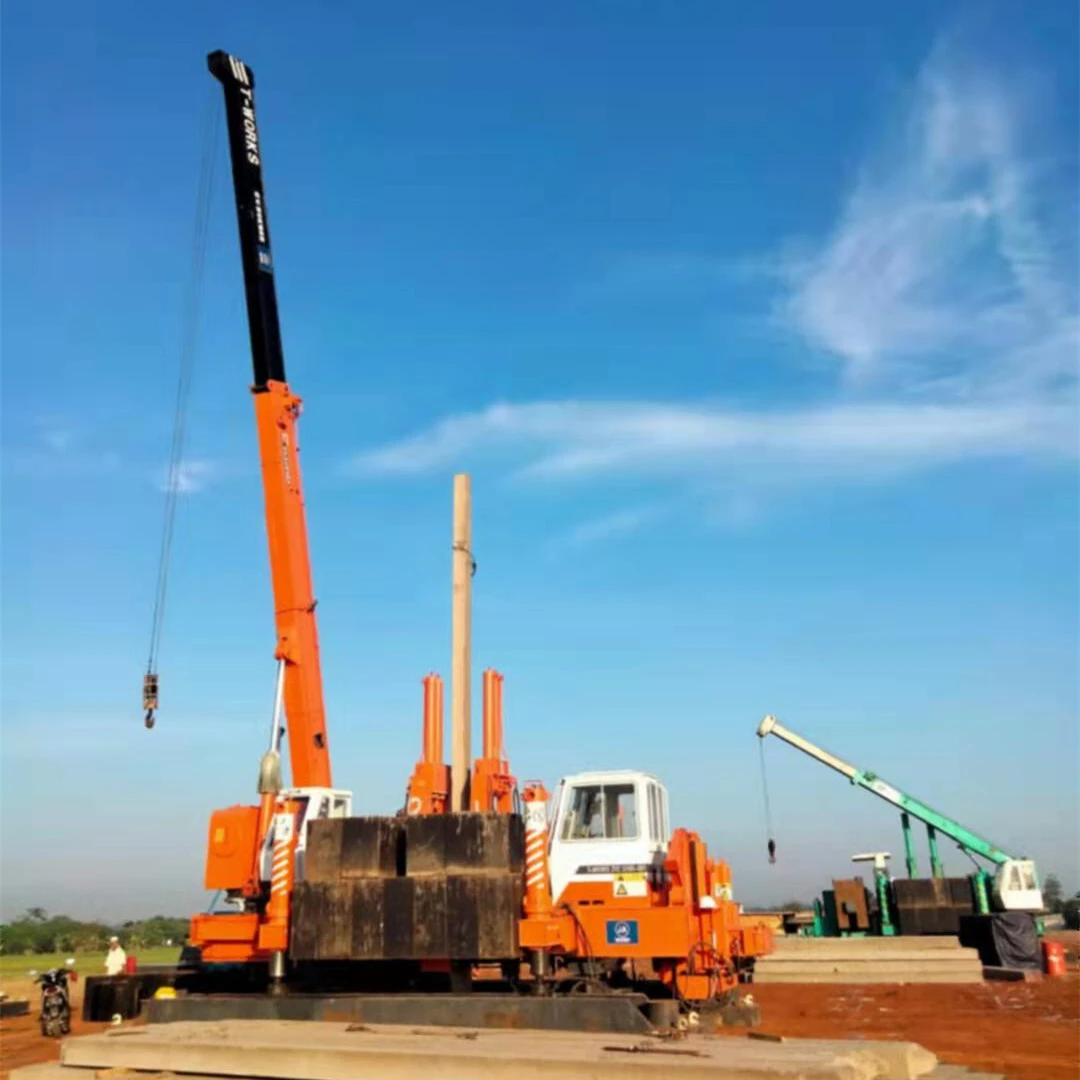

T-works - T-works ZYC280 construction machine for silent piling Hydraulic Static Pile Driver
T-works ZYC280 construction machine for silent piling With greater added value, it can bring high profits to customers and create greater value for customers.Therefore,it has obtained unanimous favorable comments from market.What's more,It has a vast variety of application, including Pile Drivers.
T-works summarizes the defects of past products, and continuously improves them. The product is characterized by multiple advantages.Its application ranges have been expanded to the Pile Drivers. T-works have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 8.5 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 280000 kg | Dimension(L*W*H): | 11*7.1*3.1 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 16T or 20T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile |
| Suitable pile size: | Max 600mm for round,550mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic pressure to jacking in pile | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| After-sale service: | Engineer available any time |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 80 | 100 | 120 | 150 | 180 | 260 | 300 | ||
| Rated piling pressure(KN) | 800 | 1000 | 1200 | 1500 | 1800 | 2600 | 3000 | |
| Piling speed(m/min) | Fast | 6.3 | 10.0 | 10.0 | 10.0 | 11.0 | 7.7 | 7.7 |
| Low | 3.00 | 2.00 | 3.00 | 3.00 | 2.70 | 1.80 | 1.80 | |
| Piling stroke(m) | 1.60 | 1.60 | 1.60 | 1.60 | 2.00 | 1.90 | 1.90 | |
| Pace(m) | Longitudinal | 1.50 | 1.60 | 1.60 | 1.60 | 1.50 | 2.40 | 2.40 |
| Horizontal | 0.40 | 0.50 | 0.50 | 0.50 | 0.60 | 0.60 | 0.60 | |
| Angle range(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Rise stroke (m) | 1.2 | 1.45 | 1.45 | 1.45 | 1.6 | 1.6 | 1.0 | |
| Square pile (mm) | Max | 300 | 350 | 350 | 350 | 500 | 500 | 500 |
| Circle pile (mm) | Max | 300 | 350 | 350 | 350 | 500 | 500 | 500 |
| Side piling space(mm) | 300 | 450 | 450 | 350 | 450 | 450 | 900 | |
| Corner piling space(mm) | 600 | 900 | 900 | 700 | 900 | 900 | 1800 | |
| Lifting weight(t) | 5.0 | 8.0 | 8.0 | 8.0 | 8.0 | 12.0 | 12.0 | |
| Lifting pile's lengh(m) | 8.0 | 12.0 | 12.0 | 12.0 | 12.0 | 14.0 | 14.0 | |
| Power(KW) | Piling | 22 | 37 | 37 | 37 | 60 | 60 | 60 |
| Lifting | 15 | 11 | 22 | 22 | 22 | 30 | 30 | |
| Main dimension (m) | Work length | 5.20 | 6.65 | 9.45 | 9.45 | 9.3 | 11.1 | 12.0 |
| Work width | 3.87 | 4.20 | 5.20 | 5.20 | 4.70 | 6.30 | 6.10 | |
| Transport height | 2.00 | 2.70 | 2.90 | 2.90 | 3.00 | 3.00 | 3.10 | |
| Total weight(T)≥ | 80 | 100 | 120 | 150 | 180 | 260 | 300 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
