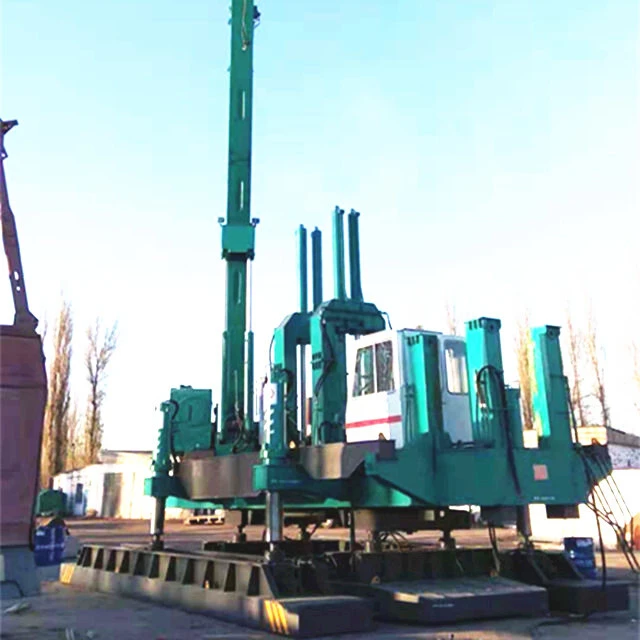

T-works - T-works ZYC360t construction piling machine for concrete pile driving Hydraulic Static Pile Driver
To promote the product advantages, we have successfully introduced modern technologies to the manufacturing process of T-works ZYC360t construction piling machine for concrete pile driving.The more multi-functional the product is, the more broadly it will be used. It is widely used in the field(s) of Pile Drivers.
T-works maintains stringent norms of quality to manufacture T-works ZYC360t construction piling machine for concrete pile driving. Technological innovation is the fundamental reason for T-works to achieve sustainable development. T-works will always be led by market demand and respect customers' wishes. Based on the feedback given by customers, we will make changes accordingly in our product development so as to manufacture the most satisfying and profitable products.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 8.5 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 360 ton | Dimension(L*W*H): | 12.7*7.1*3.15 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 16T or 20T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile size: | Max 600mm for round,550mm for square |
| New foundation machine: | A embracing pile driving method | New piling machine: | Adopt hydraulic pressure to jacking in pile |
| Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction | After-sale service: | Engineer available any time |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 360 | 460 | 600 | 680 | 860 | 960 | 1060 | ||
| Rated piling pressure(KN) | 3600 | 4600 | 6000 | 6800 | 8600 | 9600 | 10600 | |
| Piling speed(m/min) | Fast | 7.8 | 9 | 7.9 | 9 | 9 | 9.8 | 8 |
| Low | 1.9 | 1.6 | 1.4 | 1 | 1.1 | 1.1 | 1 | |
| Piling stroke(m) | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | |
| Pace(m) | Longitudinal | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Horizontal | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.60 | |
| Angle range(°) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| Rise stroke (m) | 1.1 | 1.1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Square pile (mm) | Max | 500 | 500 | 650 | 650 | 650 | 650 | 650 |
| Circle pile (mm) | Max | 600 | 600 | 800 | 800 | 800 | 800 | 800 |
| Side piling space(mm) | 1250 | 1250 | 1380 | 1380 | 1400 | 1400 | 1600 | |
| Corner piling space(mm) | 2500 | 2500 | 2800 | 2800 | 2800 | 2800 | 3200 | |
| Lifting weight(t) | 16 | 16 | 20 | 25 | 25 | 25 | 25 | |
| Lifting pile's lengh(m) | 16 | 16 | 16 | 17 | 17 | 17 | 17 | |
| Power(KW) | Piling | 74 | 111 | 111 | 111 | 141 | 141 | 165 |
| Lifting | 30 | 30 | 30 | 37 | 37 | 37 | 37 | |
| Main dimension (m) | Work length | 12.7 | 13 | 13.8 | 14 | 14.7 | 14.8 | 16 |
| Work width | 7.1 | 7.4 | 8.12 | 8.3 | 8.52 | 8.9 | 8.9 | |
| Transport height | 3.15 | 3.25 | 3.3 | 3.3 | 3.3 | 3.4 | 3.4 | |
| Total weight(T)≥ | 360 | 460 | 600 | 680 | 860 | 960 | 1060 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
