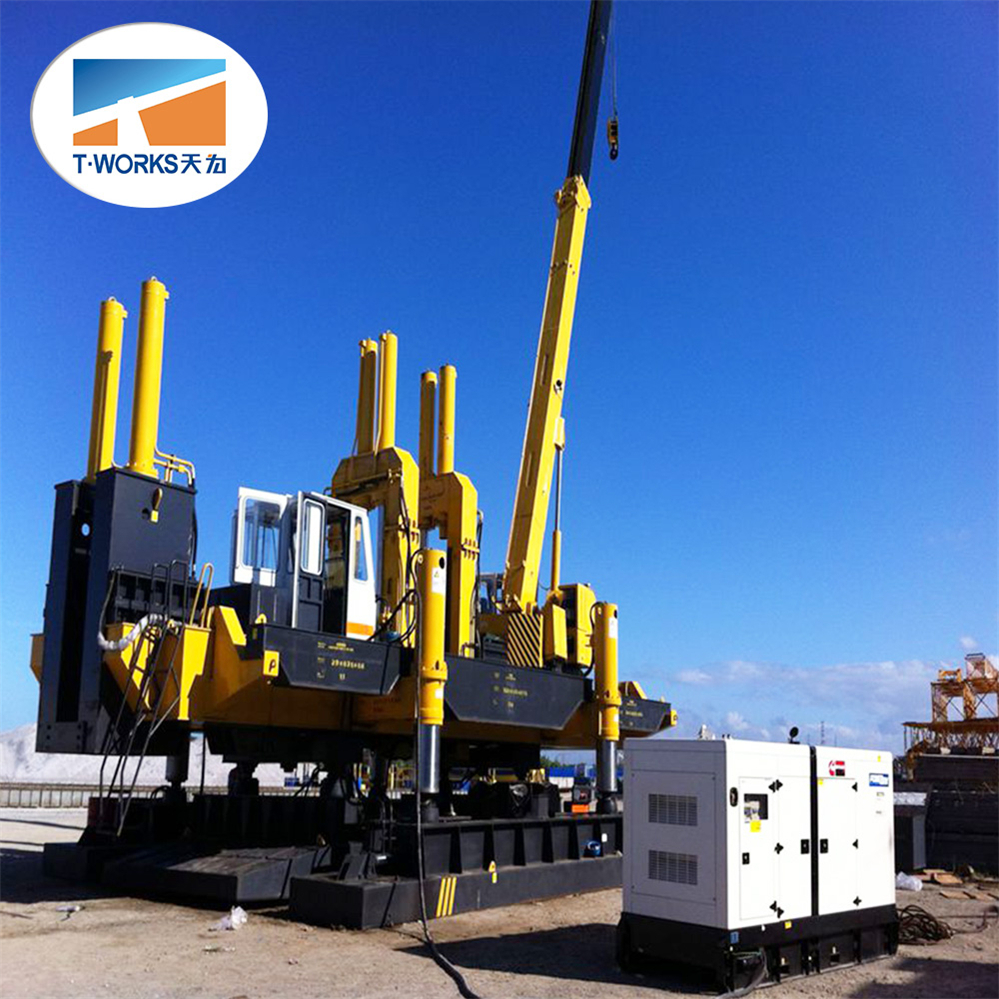

T-works - ZYC360 New piling equipment for silent piling for concrete pile without vibration and noise by changsha tianwei Hydraulic Static Pile Driver
Everyone needs ZYC360 New piling equipment for silent piling for concrete pile without vibration and noise by changsha tianwei, and we can offer you the best quality product of the world. High-end technologies are used to manufacture ZYC360 New piling equipment for silent piling for concrete pile without vibration and noise by changsha tianwei.The product can play out its greatest effect in the field(s) of Pile Drivers. Compared with the traditional ones, it better meets the market demands.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | high efficiency | Piling Speed(m/min): | 7.1m |
| Place of Origin: | Hunan, China | Brand Name: | T.works |
| Weight: | 360 kg | Dimension(L*W*H): | 12.7m*7.1m*3.15m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Suitable pile: | Concrete precast pile,sheet pile,steel tube,H-pile | Suitable pile shape: | Sheet pile,round/square pile,triangle pile,H-pile |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Side piling mechanism: | 3types available for customer |
| Crane mounted: | from 5T or 8T available for customers | Suitable pile size: | Max 300mmfor round,300mm for square |
| New foundation machine: | A embracing pile driving method | New piling machine: | Adopt hydraulic to jacking in pile to avoid the noise and pollution |
| After-sale service: | Engineer available any time |
ZYC360 New piling equipment for silent piling for concrete pile without vibration and noise by changsha tianwei
1. What is the machine doing?
Our static pile driver is used to jack in pile driving for piling jobs by the weight itself, ex: The model is ZYC120, the total weight will be 120ton, the force on the pile is 1200KN when jacking-in the pile. It can drive any shape of PHC piles without noise and vibration, so do steel tube,triangle pile,sheet pile and so on. the pile size is from 150mm to 1000mm.
2.Where can be used?
It is very good for coastline cities for civil construction jobsite. maybe you are very tired with the complaint from the government and citizens about the noise or pollution or vibration that the hammers make,but this static pile driver can solve all the problems you faced now. Static pile driver features with no noise,no pollution,controled by hydraulic system. very suitable to do piling in cities.
3. How does it works and move?
The static pile driver press the pile by embracing clamping box controled by hydraulic system speedly. The working effcienry can reach up to 600meters per day. Movement mechanism is also controled by hydraulic system called short boat and long boat as step walking, very stable,hard to sink to the ground.
4. Our advantages:
1) We have over ten years in manufacturing the static pile driver,accumulated much experiences on R & D in this area.
2) Over 20 patents in improving the design.
3) Exported more than 600units overseas.
4) Perfect after-sale service all ove the world.
5) Quality controlled spare parts for the machine to ensure the quality.
6) We are only the manufacturer who just produce this static pile driver in China,more attention,better quality that can ensure.
7) The piling capacity is from 60ton to 1200ton, square pile from 150mm to 650mm, round pile from 300mm to 800mm.
5. Application : Clay,soft soil,sand layer etc;
Noise regulated urban area; vibration regulated areas,
Such as near old buildings,precision instrument buildings,subway,overpass and so on.
Meanwhile,we can provise special design for customer's requirements.
|
paramete / type/model |
ZYC360 |
|
|
Rated piling pressure(KN) |
360 |
|
|
(m/min) Piling speed |
Fast |
7.10 |
|
Low |
1.00 |
|
|
Piling stroke(m) |
1.90 |
|
|
Pace(m) |
Longitudinal |
3.60 |
|
Horizontal |
0.70 |
|
|
Angle range(°) |
11 |
|
|
Rise stroke (m) |
1.1 |
|
|
(mm) Square pile |
Max |
500 |
|
(mm) Circle pile |
Max |
600 |
|
Side piling space(mm) |
1250 |
|
|
Corner piling space(mm) |
2500 |
|
|
Lifting weight(t) |
12.0 |
|
|
Lifting pile's lengh(m) |
14.0 |
|
|
Power(KW) |
Piling |
74 |
|
Lifting |
30 |
|
|
Main dimension(m) |
Work length |
12.7 |
|
Work width |
7.1 |
|
|
Transport height |
3.15 |
|
|
Total weight(T)≥ |
360 |
|
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
Our machine is popular in many countries, like Singapore, Malaysia, Indonesia, Thailand, Vietnam, Cambodia,Myanmar , Ukraine, Russia and so on. We are always grateful for all customers' trust and consist to supply the best quality for all of you.
Exbition promoting to make more countries and more people to know this machine and technology.
PRODUCTS
T-works will provide not only reliable piling machinery products butalso excellent and efficient service.
