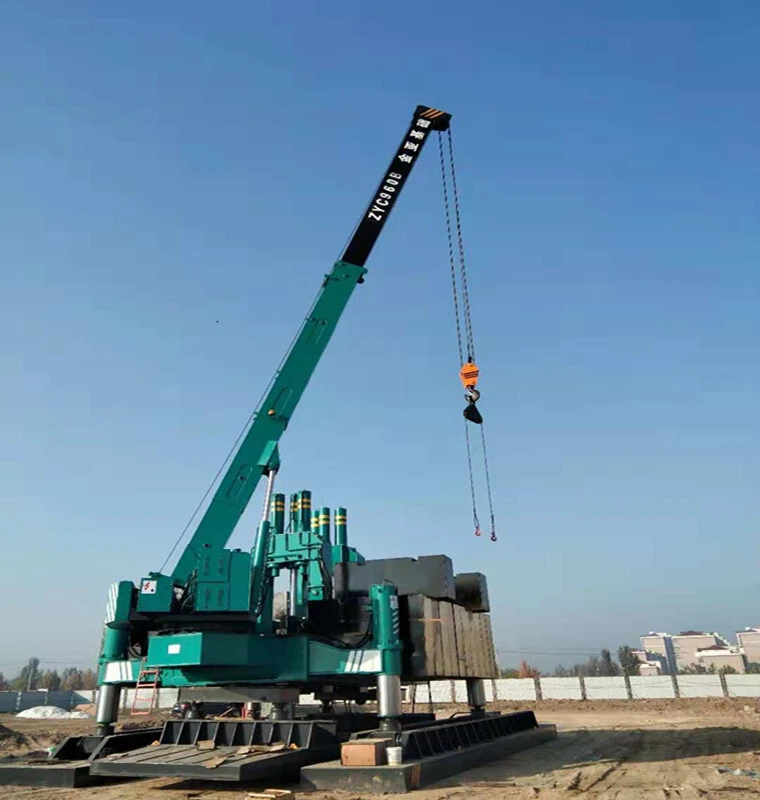

T-works - ZYC 600 ZYC500 Jack-in pile machine for pile driving pile and foundation concrete machine Hydraulic Static Pile Driver
Everyone needs ZYC 600 ZYC500 Jack-in pile machine for pile driving pile and foundation concrete machine, and we can offer you the best quality product of the world. Manufactured following the strict management system, our ZYC 600 ZYC500 Jack-in pile machine for pile driving pile and foundation concrete machine has gained a reliable quality. Before its launch, it has passed the tests based on international rules and is certified by several authorities. T-works is worth the investment for those customers seeking business opportunities. T-works will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | high efficiency | Piling Speed(m/min): | 8.5m |
| Place of Origin: | Hunan, China | Brand Name: | T.works |
| Weight: | 500000 kg | Dimension(L*W*H): | 13m*7.4m*3.25m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas | Made by T-works: | From Changsha Tianwei |
| Suitable pile: | Concrete precast pile,sheet pile,steel tube,H-pile | Suitable pile shape: | Sheet pile,round/square pile,triangle pile,H-pile |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Side piling mechanism: | 3types available for customer |
| Crane mounted: | from 5T or 8T available for customers | Suitable pile size: | Max 300mmfor round,300mm for square |
| New foundation machine: | A embracing pile driving method | New piling machine: | Adopt hydraulic to jacking in pile to avoid the noise and pollution |
ZYC 600 ZYC500 Jack-in pile machine for pile driving pile and foundation concrete machine
|
paramete / type/model |
ZYC500 |
|
|
Rated piling pressure(KN) |
5000 |
|
|
(m/min) Piling speed |
Fast |
8.5 |
|
Low |
1.6 |
|
|
Piling stroke(m) |
1.9 |
|
|
Pace(m) |
Longitudinal |
3.6 |
|
Horizontal |
0.7 |
|
|
Angle range(°) |
15 |
|
|
Rise stroke (m) |
1.2 |
|
|
(mm) Square pile |
Max |
500 |
|
(mm) Circle pile |
Max |
600 |
|
Side piling space(mm) |
1380 |
|
|
Corner piling space(mm) |
2800 |
|
|
Lifting weight(t) |
16 |
|
|
Lifting pile's lengh(m) |
15 |
|
|
Power(KW) |
Piling |
111 |
|
Lifting |
30 |
|
|
Main dimension(m) |
Work length |
13.0 |
|
Work width |
7.4 |
|
|
Transport height |
3.25 |
|
|
Total weight(T)≥ |
500 |
|
