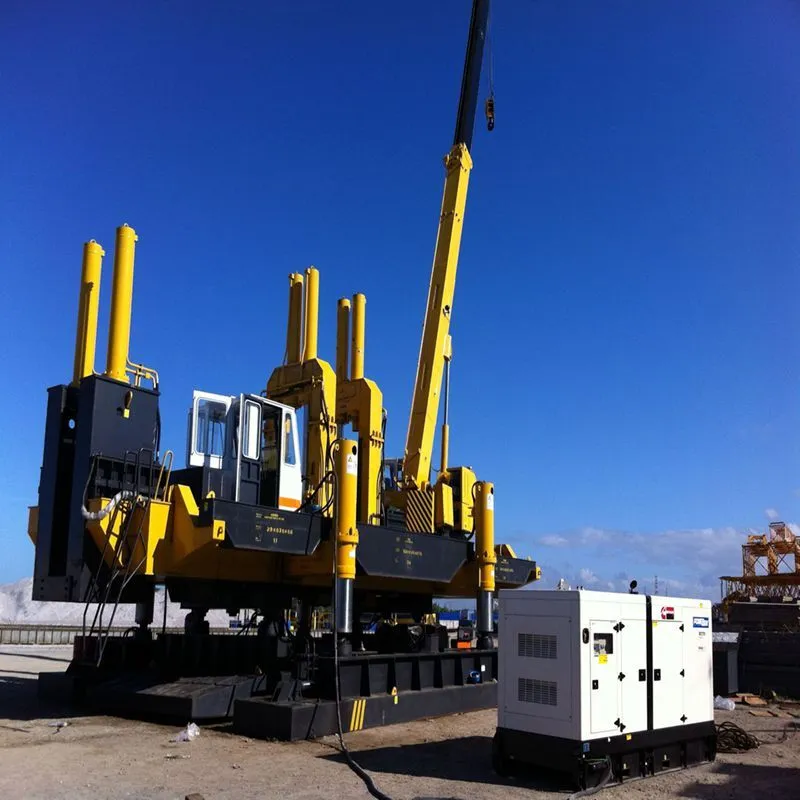

T-works - ZYC360 Pile Foundation Equipment For PHC Concrete Pile With Rapid Pressing Speed Hydraulic Static Pile Driver
With the help of our technicians and workers,T-works has finally developed the quality-guaranteed product. The product is called ZYC360 Pile Foundation Equipment For PHC Concrete Pile With Rapid Pressing Speed. Talents and technology are indispensable supporting factors for the ZYC360 Pile Foundation Equipment For PHC Concrete Pile With Rapid Pressing Speed to be widely praised. By gathering the elites in the industry together,T-works aim to make full use of their wisdom and experience to develop and manufacture competitive products. Our great wish is to become a leading enterprise on a global scale.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 22.5KW | Piling Speed(m/min): | 4.0 |
| Place of Origin: | Hunan, China | Brand Name: | T-WORKS |
| Weight: | 80 kg | Dimension(L*W*H): | 5.94x4.05x2.60 (m) |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Field maintenance and repair service | Max driving force: | 3600KN |
| Piling Stroke: | 1.9m | Piling Speed: | 7.1m/min |
| Crane Lifting Capacity: | 16t |
ZYC360 Pile Foundation Equipment For PHC Concrete Pile With Rapid Pressing Speed
T-works is professional manufacturer for foundation & piling machinery with over ten years experiences.We have a large group of advanced people for R& D and after-sale service.We have exported over 500units of piling machinery abroad,such as Singapore,Malaysia,Indonesia,Brunei,Ukraine ,Bangladesh, West Europe and so on.Our company follows the motto"Modesty,Sincerity and to be Excellent" and we are willing to serve all our customer and be good friends of them.
ZYC series hydraulic static pile driver is a new environmentally friendly pile foundation construction equipment with a number of national patents. It has the features of no pollution, no noise, no vibration, and fast pile driving, high quality pile. The static pile driver can drive the precast concrete pile from 150mm to 650mm for square pile, 300mm to 800mm for round pile. It also can push the tube, triangle pile, H-pile, etc by changing its jaws inside of the clamping box.
- Clay, soft soil, sand layer, etc.
- Noise regulated urban area.
- Vibration regulated areas where traditional methods may threaten the stability of existing structures.
| Parameter/Model | ZYC360 | |
|---|---|---|
| Rate piling pressure(KN) | 3600 | |
| Piling speed(m/min) | Fast | 7.1 |
| Low | 1.9 | |
| Piling stroke(m) | 1.9 | |
| Pace(m) | Longitudinal | 3.6 |
| Horizontal | 0.7 | |
| Angle range(°) | 11 | |
| Rise stroke(m) | 1.1 | |
| Square pile(mm) | Max | 500 |
| Circle pile(mm) | Max | 600 |
| Side piling(mm) | 1250 | |
| Corner piling space(mm) | 2500 | |
| Lifting weight(t) | 12 | |
| Pile hanging length(m) | 14 | |
| Power(KW) | Piling | 74 |
| Lifting | 30 | |
| Main dimension(m) | Work length | 12.7 |
| Work width | 7.1 | |
| Transpot height | 3.15 | |
| Total weight(t) | 360 | |
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 35 days ready for inspection at China factory from the day of receiving the deposit in full amount.
- To train operating,maintenance and construction people for our customers.
- Always be ready to answer technical questions concerned from our customers.
- Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
- To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
- Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
PRODUCTS
T-works will provide not only reliable piling machinery products butalso excellent and efficient service.
