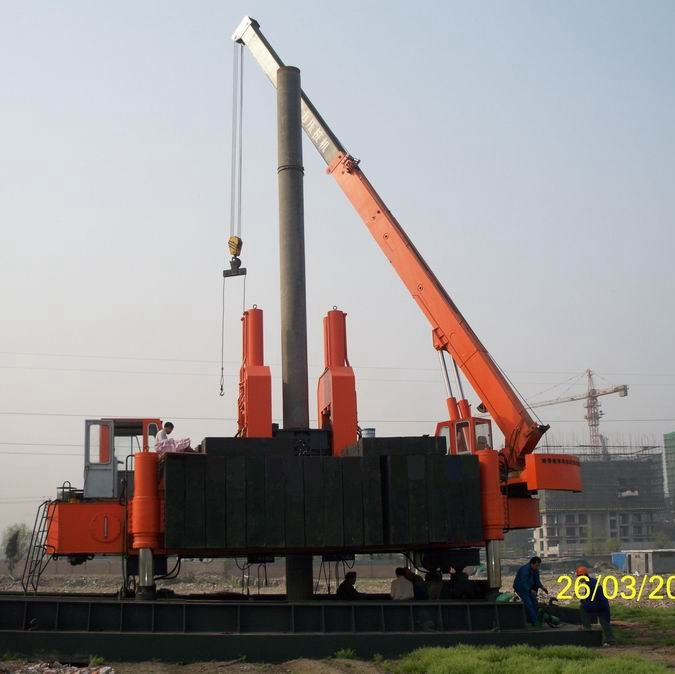

T-works - 120T Mini Pile Driver ZYC120BS-B1 Hydraulic Static Piling Machine For Building Construction Hydraulic Static Pile Driver
Among T-works's product categories, 120T Mini Pile Driver ZYC120BS-B1 Hydraulic Static Piling Machine For Building Construction is especially favored by customers. Pile Drivers T-works has developed a market-leading reputation in the industry for delivering outstanding products and solutions. The exceptional ability sees our efforts in R&D.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 3 years |
| Core Components: | Engine, Bearing, Gearbox, Motor, Gear, Pump | Condition: | New |
| Efficiency: | 59KW | Piling Speed(m/min): | 10 |
| Place of Origin: | Hunan, China | Brand Name: | T-WORKS |
| Weight: | 120T | Dimension(L*W*H): | 9.45x5.2x2.9 (m) |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Piling speed: | 6.3 m/min | Piling stroke: | 1.6m |
| Side piling space: | 400mm | Corner piling space: | 800mm |
| Lifting weight: | 5t | Local Service Location: | Viet Nam, Philippines, Indonesia, Russia, Thailand, Malaysia, Romania, Bangladesh, Ukraine |
| After-sales Service Provided: | Free spare parts, Field installation, commissioning and training, Field maintenance and repair service | Certification: | ISO9001/CE |
T-WORKS Mini Pile Driver ZYC120BS-B1 Hydraulic Static Piling Machine For Building Construction
1, Description:Method of Jack-in Piling System
A modern technique by which pre-formed piles (e.g. Prestressed Spun Piles, Precast RC Piles, H-Piles, Steel Pipe Piles) are hydraulically jacked into the ground as displacement piles.
This mini piling Machine can drive the precast concrete pile from 150mm to 300mm for square pile, 200mm to 300mm for round pile. It also can push the tube, triangle pile, H-pile, etc by changing its jaws inside of the clamping box.
2, Applications:
- Clay, soft soil, sand layer, etc.
- Noise regulated urban area.
- Vibration regulated areas
3, Specifications:
| paramete / type/model | ZYC120 | |
| Rated piling pressure(KN) | 1000 | |
| (m/min) Piling speed | Fast | 6.3 |
| Low | 3.0 | |
| Piling stroke(m) | 1.6 | |
| Pace(m) | Longitudinal | 1.5 |
| Horizontal | 0.4 | |
| Angle range(°) | 15 | |
| Rise stroke (m) | 1.45 | |
| (mm) Square pile | Max | 350 |
| (mm) Circle pile | Max | 350 |
| Side piling space(mm) | 400 | |
| Corner piling space(mm) | 800 | |
| Lifting weight(t) | 5.0 | |
| Lifting pile's lengh(m) | 9.0 | |
| Power(KW) | Piling | 37 |
| Lifting | 11 | |
| Main dimension(m) | Work length | 6.7 |
| Work width | 4.2 | |
| Transport height | 2.7 | |
| Total weight(T)≥ |
120 |
|
| Delivery Information: | |||
| Port: | Any port of China | ||
| MOQ: | 1 Unit | Capacity: | 300 Unit / Month |
| Delivery days: | 25-30 days after the receipt of L/C | ||
| Packing details: | Container packaging or Nude package | ||
| Payment terms: | L/C D/A D/P T/T .. | ||
| Our Advantages: | |||
| Our promise to the clients: | 1. Rapid response to your enquiry in 12 working hours; | ||
| 2. Installation and adjustment of the machine on site; | |||
| 3.Training the operator and maintabce poeple; | |||
| 4. Regular inspection of the machine; | |||
| 5. Branch overseas offer quick response within 24 hours upon customer's instruction. | |||
4. More pictures of Hydraylic static pile driver machine:
