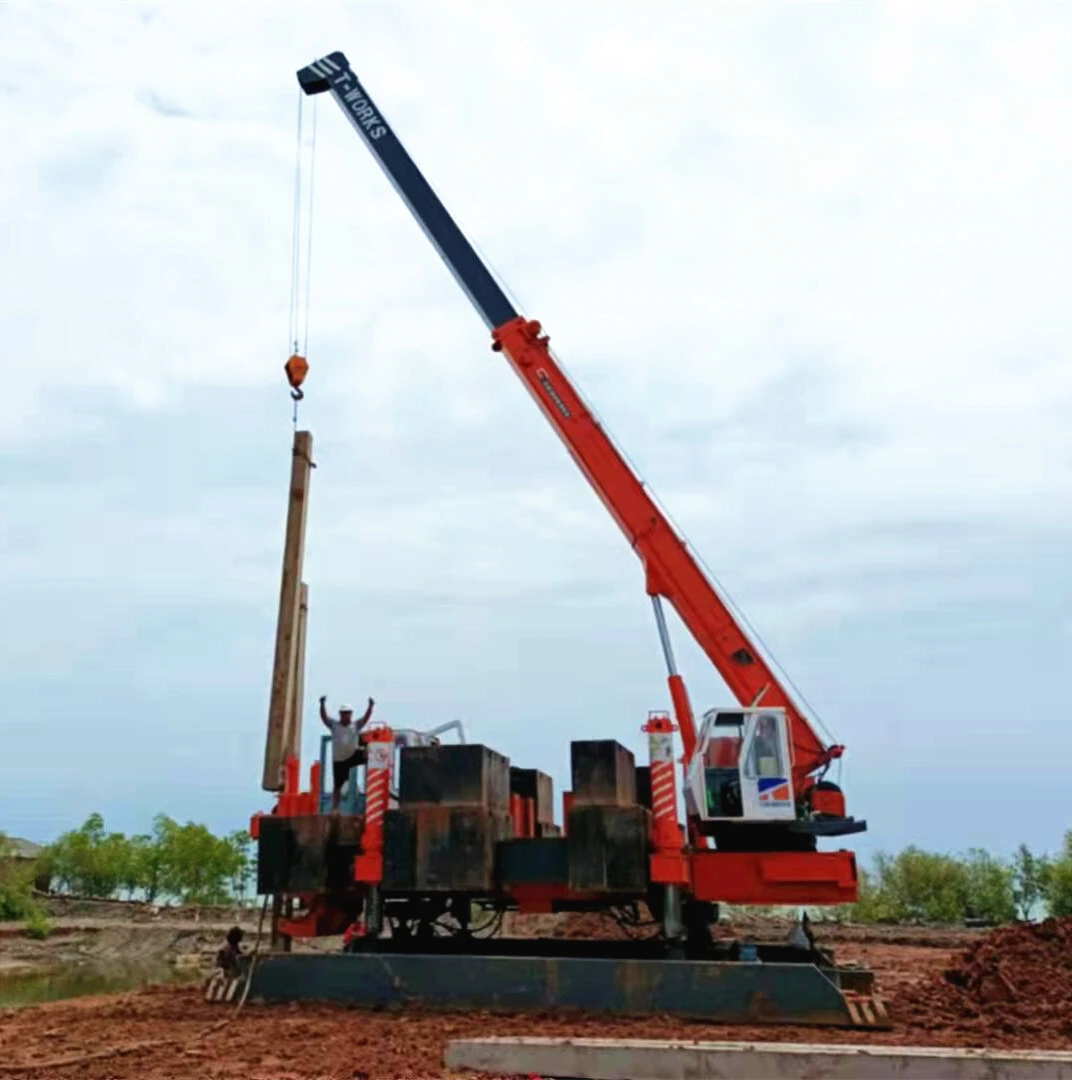

T-works 120 ton hydraulic static pile driver for jacking in pile on foundation jobsite made by Tian wei
We've assigned professional engineers and workers to utilize technology and other state-of-the-art technologies to manufacture T-works 120 ton hydraulic static pile driver for jacking in pile on foundation jobsite made by Tian wei.As a kind of product with multi-functions and proven quality, it has a variety of uses in many fields including the Pile Drivers field.
T-works have accumulated many years of experience. It is designed to meet the industry criterion. T-works will provide high-quality services, and bring customers a better experience. In this way, the company can continue to strengthen its future strength in technological innovation and strive to create complete products Ecological chain.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 3 years |
| Core Components: | PLC, Engine, Bearing, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | high efficiency | Piling Speed(m/min): | 11.0m |
| Place of Origin: | Hunan, China | Brand Name: | T.works |
| Weight: | 120t | Dimension(L*W*H): | 9.45m*5.2m*2.9m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service | Made by T-works: | From Changsha Tianwei |
| Suitable pile: | Concrete precast pile,sheet pile,steel tube,H-pile | Suitable pile shape: | Sheet pile,round/square pile,triangle pile,H-pile |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Side piling mechanism: | 3 types available for customers |
| Crane mounted: | 8T lifting capacity available for customers | Suitable pile size: | Max 350mm for round,350mm for square |
| New foundation machine: | A embracing pile driving method | New piling machine: | Adopt hydraulic to jacking in pile to avoid the noise and pollution |
| Local Service Location: | Viet Nam, Philippines, Indonesia, Russia, Thailand, Malaysia, Romania, Bangladesh, Ukraine | Certification: | ISO9001 & GOST & CE |
T-works 120 tons hydraulic static pile driver for jacking in pile on foundation jobsite made by Tian wei
1. What is the machine doing?
Our hydraulic static pile driver is used to jack in pile driving for piling foundation or engineering jobs by the weight itself, ex: The model is ZYC120, the total weight will be 120ton, the force on the pile is 1200KN when jacking-in the pile. It can drive any shape of PHC piles without noise and vibration, so do steel tube,triangle pile,sheet pile and so on. the pile size is from 150mm to 1000mm.
2.Where can be used?
It is very good for coastline cities for civil construction jobsite. maybe you are very tired with the complaint from the government and citizens about the noise or pollution or vibration that the hammers make,but this static pile driver can solve all the problems you faced now. Static pile driver features with no noise,no pollution,controled by hydraulic system. very suitable to do piling in cities.
3. How does it works and move?
The hydraulic static pile driver press the pile by embracing clamping box controled by hydraulic system speedly. The working effcienry can reach up to 600meters per day. Movement mechanism is also controled by hydraulic system called short boat and long boat as step walking, very stable,hard to sink to the ground.
4. Our advantages:
1) We have over ten years in manufacturing the static pile driver,accumulated much experiences on R & D in this area.
2) Over 20 patents in improving the design.
3) Exported more than 600units overseas.
4) Perfect after-sale service all ove the world.
5) Quality controlled spare parts for the machine to ensure the quality.
6) We are only the manufacturer who just produce this static pile driver in China,more attention,better quality that can ensure.
7) The piling capacity is from 60ton to 1200ton, square pile from 150mm to 650mm, round pile from 300mm to 800mm.
5. Application : Clay,soft soil,sand layer etc;
Noise regulated urban area; vibration regulated areas,
Such as near old buildings,precision instrument buildings,subway,overpass and so on.
Meanwhile,we can provise special design for customer's requirements.
6. Unique design:
1) Clamping box:
2) Roller and clamps:
3) More choices for side mechanism:
4) Special design for cylinder of leg
5) Reasonable distribution for hydraulic system
6) Better design for crane
7. Technical Parameters:
4) Parameters:
| Parameter / Type | ZYC120B-B | |
| Rated piling pressure(KN) | 1200 | |
| Piling speed(m/min) | Fast | 10 |
| Low | 3 | |
| Piling stroke(m) | 1.6 | |
| Pace(m) | Longitudinal | 1.6 |
| Horizontal | 0.5 | |
| Angle range(°) | 15 | |
| Rise stroke (m) | 0.8 | |
| Square pile(mm) | Max | 350 |
| Min | ||
| Cirle pile(mm) | Max | Φ350 |
| Min | ||
| Side piling space(mm) | 400 | |
| Cirle piling space(mm) | 800 | |
| Lifting weight(t) | 8.0 | |
| Lifting pile's lengh(m) | 12 | |
| Power(KW) | Piling | 37 |
| Lifting | 22 | |
| Main dimension(m) | Lenth of work | 9.45 |
| Width of work | 5.20 | |
| Transprorting height | 2.90 | |
| Total weight(T)≥ | 120 | |
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
To train operating,maintenance and construction people for our customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
