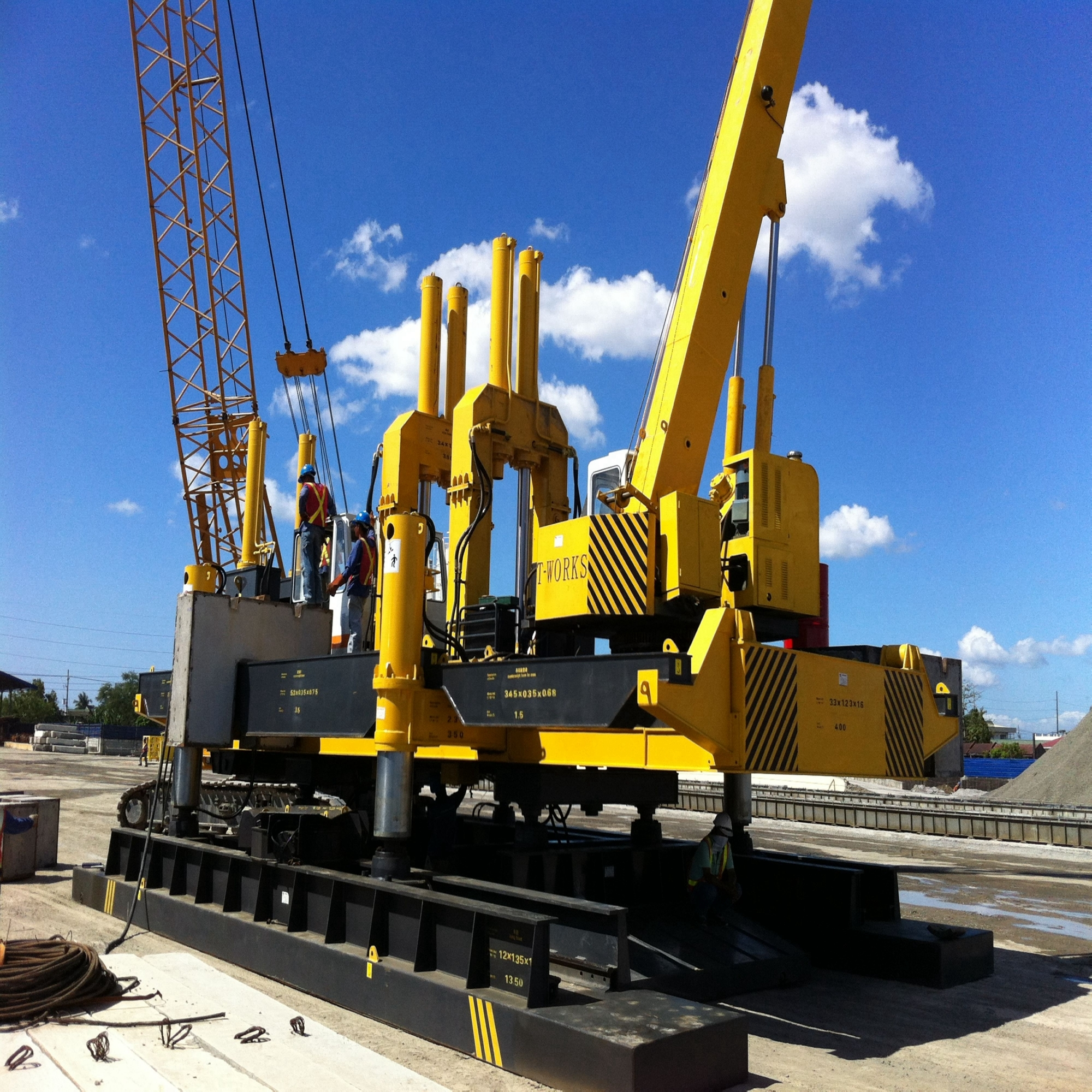

T-works - Robot Machine 280T Hydraulic press-in pile driving machine For Soft Soil Pile Foundation
After multiple tests, it proves that utilizing technology contributes to high-efficiency manufacturing and ensuring the stability of Robot Machine 280T Hydraulic press-in pile driving machine with hydraulic pile driver For Soft Soil Pile Foundation.It has widespread uses in the application field(s) of Pile Drivers and is totally worth the investment.
Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture Robot Machine 280T Hydraulic press-in pile driving machine with hydraulic pile driver For Soft Soil Pile Foundation. Robot Machine 280T Hydraulic press-in pile driving machine with hydraulic pile driver For Soft Soil Pile Foundation is the result of high-end technologies.With the continual of enlarging of its application range in Pile Drivers, its demands are increasing rapidly every year. T-works always stick to the core value of 'integrity and honesty' since established. We will strive forward to manufacture and provide the fine-quality products and try hard to provide the best services for our customers.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 1000 | Piling Speed(m/min): | 7.7 |
| Place of Origin: | Hunan, China | Brand Name: | T-WORKS |
| Weight: | 280000 kg | Dimension(L*W*H): | 12X6.1X3.1(M) |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Field maintenance and repair service | Product Name: | Hydraulic Static Pile Driver |
| Max driving force: | 2000KN | Rated Piling Pressure: | 2800KN |
| Piling Stroke: | 1.9m | Piling Speed: | 7.7m/min |
| Max Square Pile Size: | ?500mm | Max Circle Pile Size: | ?450mm |
Description:
Hydraulic Static Pile Drivers are featured with no noise, no vibration, no pollution and no rubbish left in construction site.It can work with H-piles, precast concrete and steel piles with different shapes,like round,square and tapered shape. There are series models range from 60T to 1200T.
It is adopted the hydraulic system design of large power and high flow,the precast pile entirely depends on the hydraulic static pressure so that the pile can be pressed into the ground steadily and quietly.
Main Features
1).Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile, avoid damaging the pile.
2).Unique design of side/corner piling structure, improves the capacity of side/corner piling, the pressure force of side/corner piling up to 60% -70% of main piling. The performance is much better than hanging side/corner piling system.
3).Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil, ensuring high reliability of clamping pile and high quality of construction.
4).Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure, greatly improving the safety of operation.
Machine Parts
Name: Clamping system
Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile, avoid damaging the pile.
Main Features
Name: Bliwing Cylinder
Iinverting cylinder as a supporting leg so as to avoid the easy breakage of cylinder which was different from with traditional design.
Machine Parts
Name: Mutiway Valve Hydraulic System
With 4 sets of mutiway valve hydraulic system , and the pile driving mechanism with multi-speed operation to ensure the high efficiency of the while machine;
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
