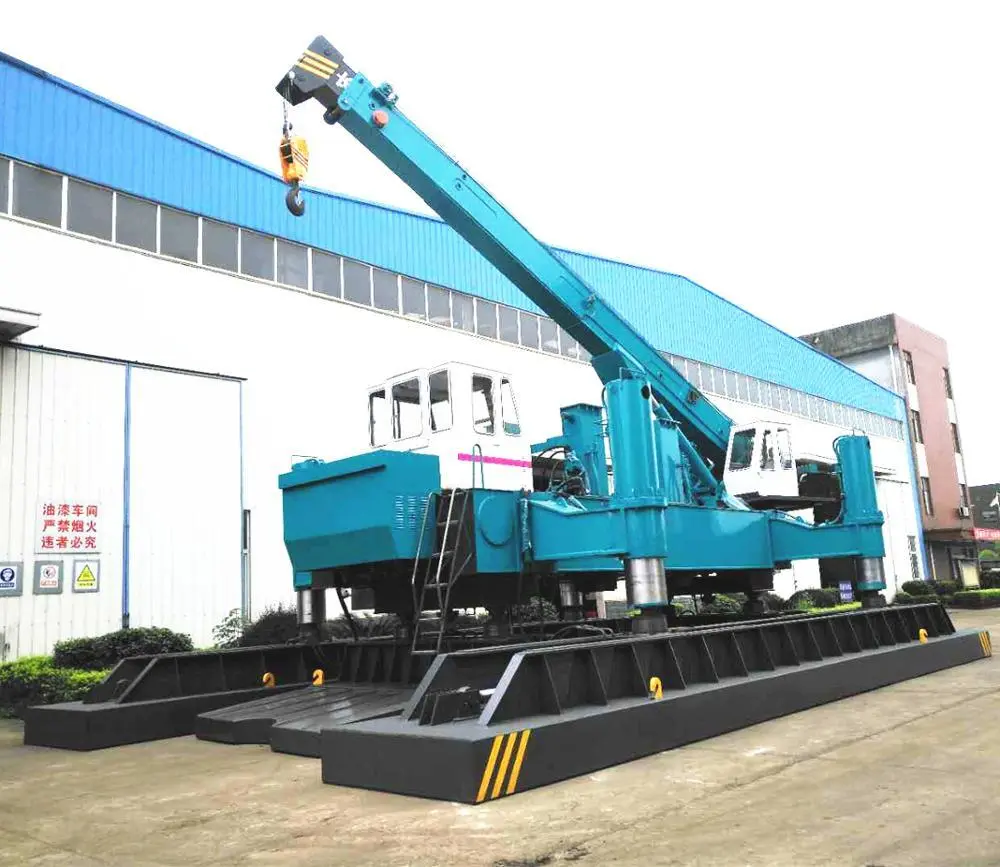

T-works - ZYC800B pile driver for jacking in PHC pile on foundation construction replacing hydraulic impact hammer made by Tianwei Hydraulic Static Pile Driver
Having invested a great deal of funds to technology research and product development,T-works has successfully worked out ZYC800B pile driver for jacking in PHC pile on foundation construction replacing hydraulic impact hammer made by Tianwei. The ZYC800B pile driver for jacking in PHC pile on foundation construction replacing hydraulic impact hammer made by Tianwei has the significance of taking a leap forward and injects new impetus into the development of the industry. Since established, T-works have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of 'honesty & integrity', which ensures that the most credible services are delivered to every customer.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 7.0m |
| Place of Origin: | Hunan, China | Brand Name: | T.WORKS |
| Weight: | 800 kg | Dimension(L*W*H): | 14.5m*8.32m*3.15m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Made by T-works: | From Changsha Tianwei | Features: | No noise, no pollution, no vibration |
| Crane mounted: | 25T lifting capacity available for customers | Suitable pile: | Concrete precast pile,sheet pile,steel tube,H-pile |
| Suitable pile shape: | Sheet pile,round/square pile,triangle pile,H-pile | Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction |
| Suitable pile size: | Max 1meter for round,650mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic to jacking in pile to avoid the noise and pollution |
Hydraulic Static Pile Driver-ZYC Series
features with no noise, no vibration, no pollution, high piling efficiency, and excellent piling quality, it has wide application in pile pressing, the specifications range from 90 to 1200 tons piling press to suit different foundation conditions and customers, meanwhile, we can provide special design for customer's requirement.
The pile driver is composed of clamping box, pile pressing mechanism, rise mechanism, travel mechanism, crane,hydraulic system, electric system and so on. It can finish all the pile lifting, pile pressing (including press side and corner pile), travel, and steering.
Applications:
The machine is convenient to press concrete spun pile, square pile, H pile, and other precast piles at the site of:
1. Clay, soft soil, sand layer, etc.
2. Noise regulated urban area.
3. Vibration regulated areas, such as, near old buildings, precision instrument buildings, subway, overpass,etc.
advantages:
1. better than hammer for coastline cities and river-line cities: as hammer will make much noise and pollution during working,it is not good choice in cities,our hydrualic static pile driver will avoid all the problems.
2. the working efficiency is high,can press the pile with 500meter per day.
3.suitable for any shape of pile:concrete pile,steel tube,sheet pile,H-pile,round pile,square pile and so on.
4.save cost for renting crane:it has its own crane to lift the pile to do piling,this can save cost to buy or rent crane.
5.it is very stable and not easy to sink to the mud.
6.the piling capacity is much bigger than diesel hammer ,better for the foundation .
The special design for side piling mechanism: three types for side piling mechanism
Two types of clamps for round pile and square pile:
The Parameters for ZYC800B-B:
| paramete / type | ZYC800B-B | |
| rated piling pressure(KN) | 8000 | |
| piling speed(m/min) | fast | 3.9 |
| low | 1.02 | |
| piling stroke(m) | 1.9 | |
| pace(m) | longitudinal | 3.6 |
| horizontal | 0.7 | |
| angle range(°) | 11 | |
| rise stroke (m) | 1.2 | |
| square pile(mm) | max | 550 |
| min | … | |
| cirle pile(mm) | max | 800 |
| min | … | |
| side piling space(mm) | 1420 | |
| cirle piling space(mm) | 2850 | |
| lifting weight(t) | 16.0 | |
| lifting pile's lengh(m) | 15.0 | |
| power(KW) | piling | 141 |
| lifting | 30 | |
| main dimension(m) | lenth of work | 14.0 |
| width of work | 8.32 | |
| transprorting height | 3.15 | |
| total weight(T)≥ | 800 | |
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
♣ To train operating,maintenance and construction people for our customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
