T-works - Big Piling Pressure Hydraulic Static Pile Driver for T-Works ZYC1060 Hydraulic Static Pile Driver
T-works devotes many years to developing and producing superb Big Piling Pressure Hydraulic Static Pile Driver for T-Works ZYC1060 as well as offering professional customer service. Pile Drivers has passed a series of international quality assurance system and product safety certification . Looking to the future, Big Piling Pressure Hydraulic Static Pile Driver for T-Works ZYC1060 will continue to follow the route of independent innovation, and continue to introduce high-tech talents as intellectual support, and strive to achieve the goal of becoming a world-class enterprise.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 6000 | Piling Speed(m/min): | 7.0 |
| Place of Origin: | Hunan, China | Brand Name: | T-WORKS |
| Weight: | 600000 kg | Dimension(L*W*H): | 13.5X8.08X3.15(M) |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Field maintenance and repair service | Product Name: | Hydraulic Static Pile Driver |
| Max driving force: | 10600KN | Rated Piling Pressure: | 10600KN |
| Piling Stroke: | 1.9m | Piling Speed: | 7.2m/min |

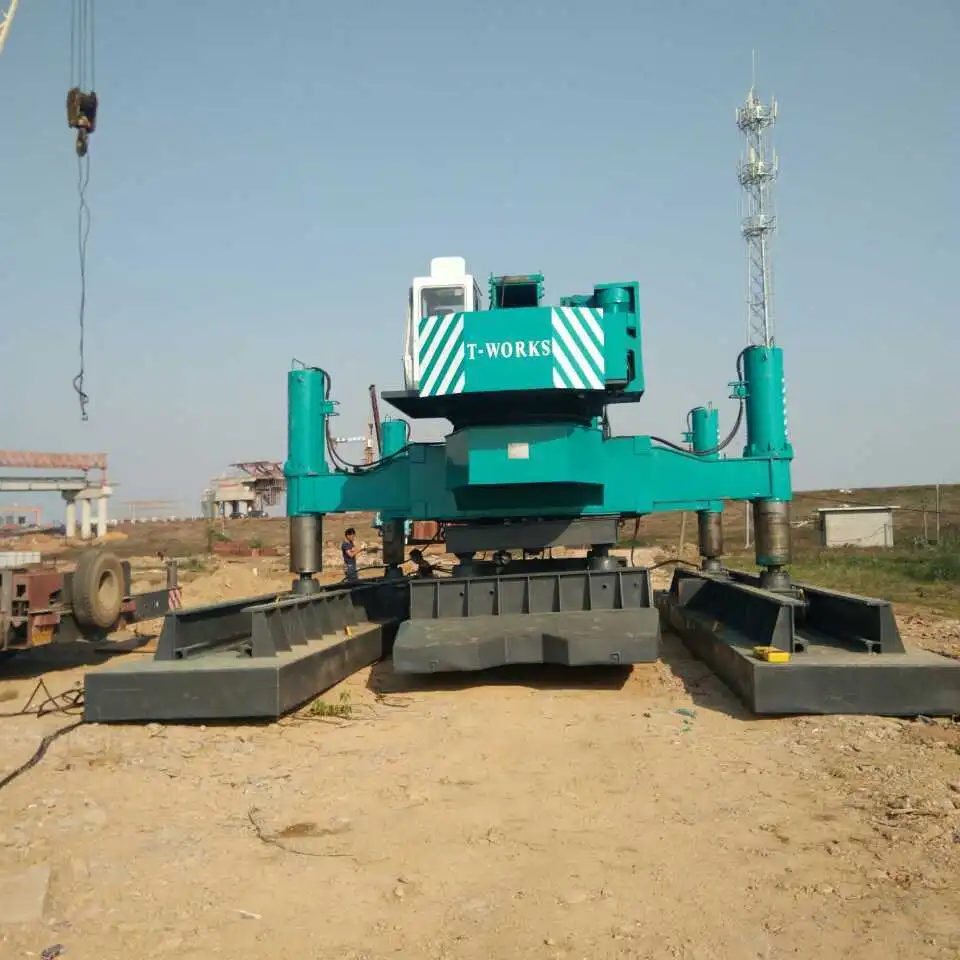

Big Piling Pressure Hydraulic Static Pile Driver for T-Works ZYC1060
As a kind of large green foundation construction equipment with Chinese characteristics, Tianwei
series of hydrostatic pile driver features no vibration, no noise, high efficiency and energy saving,
fast pile driving and pile with high quality. It adopts seven national patent technologies such as
multi-point equal pressure piles folder pile body and corner piling devices, which are of the leading
international technical level.
Hydraulic Static Pile Driverscan work with H-piles, precast concrete and steel piles with different
shapes,like round,square and tapered shape. There are 40 models from 80T to 1200T.
The pressing-pile speed amounting to 300-800 meters within 8hours, which it's quite more efficient than other conventional pile drivers.
This unique construction method with non-pollution has gradually taken place of the pile hammer.
Our machine have the following features in contrast to others:
1.Counterweight Under the Crane:This design balances the counterweights on the machine , keep it from dangerous by the over stack
2.Unique design of attachable side piling structure, improves the capacity of side piling,meets the requirement of different site condition.
3.The holder of counterweight mean can be foldable,and convenient in loading .
4.Telescopic Legs:It is drived by the cylinder to avoid the dismantling process , and improves the working efficiency.
5.Clamping Box:It can be adapt to different shape of pile . besides the circle and square shape.
6.Inserted side pilling Mechanism:
It can greatly shorten the side piling distance for demanding job request.and is removable to reduce the total loading weight .
THE TECHNICAL PARAMETERS OF HYDRAULIC STATIC PILE DRIVER:
| Parameter/Model | ZYC1060 | |
|---|---|---|
| Rate piling pressure(KN) | 10600 | |
| Piling speed(m/min) | Fast | 7.2 |
| Low | 1.0 | |
| Piling stroke(m) | 1.9 | |
| Pace(m) | Longitudinal | 3.6 |
| Horizontal | 0.7 | |
| Angle range(°) | 11 | |
| Rise stroke(m) | 1.2 | |
| Square pile(mm) | Max | 650 |
| Circle pile(mm) | Max | 800 |
| Side piling(mm) | 1600 | |
| Corner piling space(mm) | 3200 | |
| Lifting weight(t) | 25 | |
| Pile hanging length(m) | 17 | |
| Power(KW) | Piling | 141 |
| Lifting | 37 | |
| Main dimension(m) | Work length | 16 |
| Work width | 8.9 | |
| Transpot height | 3.4 | |
| Total weight(t) | 1060 | |
| Delivery Information: | |||
| Port: | Any port of China | ||
| MOQ: | 1 Unit | Capacity: | 300 Unit / Month |
| Delivery days: | 25-30 days after the receipt of L/C or T/T | ||
| Packing details: | Container packaging or Nude package | ||
| Payment terms: | L/C D/A D/P T/T .. | ||
| Our Advantages: | |||
| Our promise to the clients: | 1. Rapid response to your enquiry in 12 working hours; | ||
| 2. Installation and adjustment of the machine on site; | |||
| 3.Training the operator and maintabce poeple; | |||
| 4. Regular inspection of the machine; | |||
| 5. Branch overseas offer quick response within 24 hours upon customer's instruction. | |||
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
To train operating,maintenance and construction people for our customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
