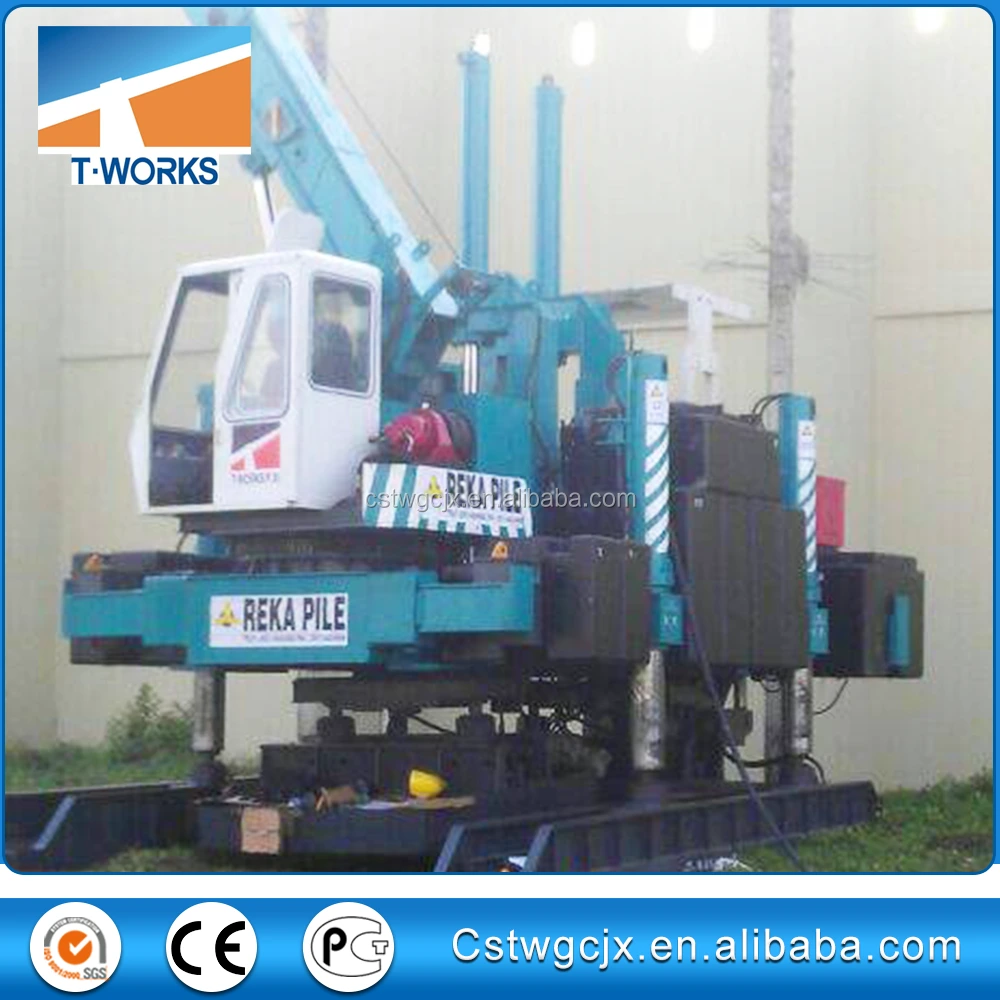

T-works - ZYC150B-B1 compact pile driver/sheet pile driver/silent piling machine Hydraulic Static Pile Driver
State-of-the-art technologies introduced and upgraded for the more efficient and stable manufacturing of the product. It functions perfectly in the application scenario(s) of Pile Drivers. After the ZYC150B-B1 compact pile driver/sheet pile driver/silent piling machine was launched, most customers have given positive feedback, believing that this type of product meets their expectations for high-quality products. T-works has been dedicated to the design, R&D, manufacturing, and updates of Hydraulic Static Pile Driver, Drilling rigs, Crawler dumper truck. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Condition: | New | Efficiency: | 98% |
| Piling Speed(m/min): | 10.0m | Place of Origin: | Hunan, China |
| Brand Name: | T.works | Weight: | 150t |
| Dimension(L*W*H): | 9.45m*5.20m*2.90m | Warranty: | 1 Year, 12months |
| UNIQUE SELLING POINT: | High operating efficiency | Local Service Location: | Viet Nam, Philippines, Indonesia, Russia, Thailand, Malaysia, Romania, Bangladesh, Ukraine |
| After-sales Service Provided: | Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas | Certification: | ISO9001 / GOST / /SGS / CE |
| Made by T-works: | From Changsha Tianwei | Crane mounted: | 8T lifting capacity available for customers |
| Side piling mechanism: | 3 types available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile,H-beam |
| Suitable pile size: | Max 350mm for round,350mm for square | Suitable pile shape: | Round, square, triangle, tube, or irregular shape |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Suitable place: | Coast-line or rivre-line cities |
1. What is the machine doing?
Our hydraulic static pile driver is used to jack in pile driving for piling foundation or engineering jobs by the weight itself, ex: The model is ZYC120, the total weight will be 120ton, the force on the pile is 1200KN when jacking-in the pile. It can drive any shape of PHC piles without noise and vibration, so do steel tube,triangle pile,sheet pile and so on. the pile size is from 150mm to 1000mm.
2.Where can be used?
It is very good for coastline cities for civil construction jobsite. maybe you are very tired with the complaint from the government and citizens about the noise or pollution or vibration that the hammers make,but this static pile driver can solve all the problems you faced now. Static pile driver features with no noise,no pollution,controled by hydraulic system. very suitable to do piling in cities.
3. How does it works and move?
The hydraulic static pile driver press the pile by embracing clamping box controled by hydraulic system speedly. The working effcienry can reach up to 600meters per day. Movement mechanism is also controled by hydraulic system called short boat and long boat as step walking, very stable,hard to sink to the ground.
4. Our advantages:
1) We have over ten years in manufacturing the static pile driver,accumulated much experiences on R & D in this area.
2) Over 20 patents in improving the design.
3) Exported more than 600units overseas.
4) Perfect after-sale service all ove the world.
5) Quality controlled spare parts for the machine to ensure the quality.
6) We are only the manufacturer who just produce this static pile driver in China,more attention,better quality that can ensure.
7) The piling capacity is from 60ton to 1200ton, square pile from 150mm to 650mm, round pile from 300mm to 800mm.
5. Application : Clay,soft soil,sand layer etc;
Noise regulated urban area; vibration regulated areas,
Such as near old buildings,precision instrument buildings,subway,overpass and so on.
Meanwhile,we can provise special design for customer's requirements.
6. Unique design:
1) Clamping box:
2) Roller and clamps:
3) More choices for side mechanism:
4) Special design for cylinder of leg
5) Reasonable distribution for hydraulic system
6) Better design for crane
7. Technical Parameters:
| Paramete / type | ZYC150B-B1 | |
| Rated piling pressure(KN) | 1500 | |
| Piling Speed(m/min) | Fast | 10 |
| Low | 3 | |
| piling stroke(m) | 1.6 | |
| Pace(m) | Longitudinal | 1.6 |
| Horizontal | 0.5 | |
| Angle range(°) | 15 | |
| Rise stroke (m) | 0.8 | |
| Square pile(mm) | Max | 350 |
| Min | ||
| Cirle pile(mm) | Max | Φ350 |
| Min | ||
| Side piling space(mm) | 720 | |
| Corner piling space(mm) | 1500 | |
| Lifting weight(t) | 8.0 | |
| lifting pile's length(m) | 12 | |
| Power(KW) | Piling | 37 |
| Lifting | 22 | |
| Main dimension(m) | Lenth of work | 9.45 |
| Width of work | 5.20 | |
| Transprorting height | 2.90 | |
| Total weight(T)≥ | 150 | |
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
To train operating,maintenance and construction people for our customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
PRODUCTS
T-works will provide not only reliable piling machinery products butalso excellent and efficient service.
