Operator Cabin of T-works Static Pile Driver: "Vision, Comfort & Customization"

In the construction engineering field, the operating experience of static pile driver operators is closely linked to construction efficiency and safety. As the "operation core" of the equipment, the operator cabin’s field of vision, operational convenience, and environmental adaptability directly affect the daily pile-driving volume and operational safety. The operator cabin of T-works pile drivers features four key advantages: "clear visibility, easy operation, comfortable experience, and customizable design".

 I. All-Dimensional Wide Vision: Ensuring "No Blind Spots" in Every Operation

During the operation of a static pile driver, operators need to simultaneously focus on pile alignment, crane lifting, and pile-driving depth. Obstructed vision is often a major cause of safety hazards and efficiency bottlenecks. The operator cabin of T-works' static pile driver achieves "three breakthroughs" in vision design:

- Transparent Window Design: Two-page openable windows are installed at the front and rear, while sliding door structures are adopted on the left and right sides. When fully opened, a "360° unobstructed field of vision" is achieved—operators can clearly observe the verticality of piles, ground obstacles, and the movements of on-site construction personnel without standing up. This significantly reduces collision risks when turning or adjusting positions in narrow construction sites.

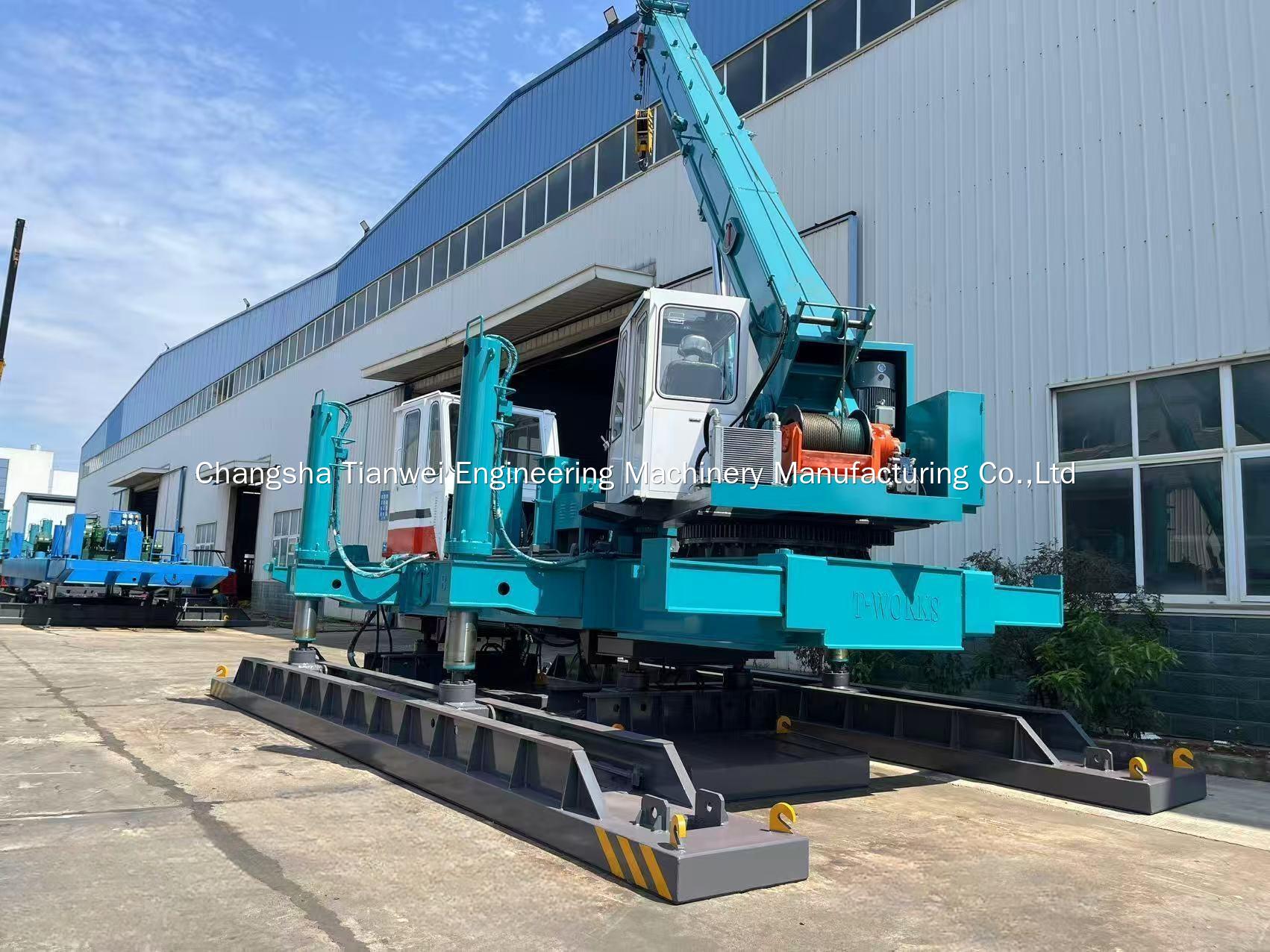

- Independent Vision for Dual Cabins: Innovatively, the crane operator cabin and pile-driving operator cabin are placed on both sides of the machine body. Moreover, the crane cabin rotates integrally with the crane chassis, ensuring their visions do not interfere with each other during operation. For example, when the crane lifts prefabricated piles, the crane operator can focus on the balance of the piles, while the pile-driving operator simultaneously monitors the pile-driving force—boosting the collaborative efficiency of the two posts by 30%.

- Reinforced Safety with Steel Frames: Thickened steel frames are used around the cabin. While ensuring a wide field of vision, they also form a "protective barrier" to handle on-site risks such as flying gravel and minor collisions, balancing both visibility and safety.



Crane cab



Crane cab

               Crane cab

 II. Ergonomic Operation: Simplifying Complex Tasks with "Clear & Intuitive Controls"

For static pile drivers that require long hours of operation, the rationality of operating devices directly affects operator fatigue and work accuracy. Starting from the principles of "convenience" and "accuracy", T-works has optimized the layout of the cabin’s operating system:

- Adaptive Joystick Design: Standard-length joysticks are used, with a curvature that fits the natural grip of the hand. This prevents slipping and reduces hand fatigue even during prolonged pushing and pulling, especially minimizing wrist strain during continuous pile-driving operations.

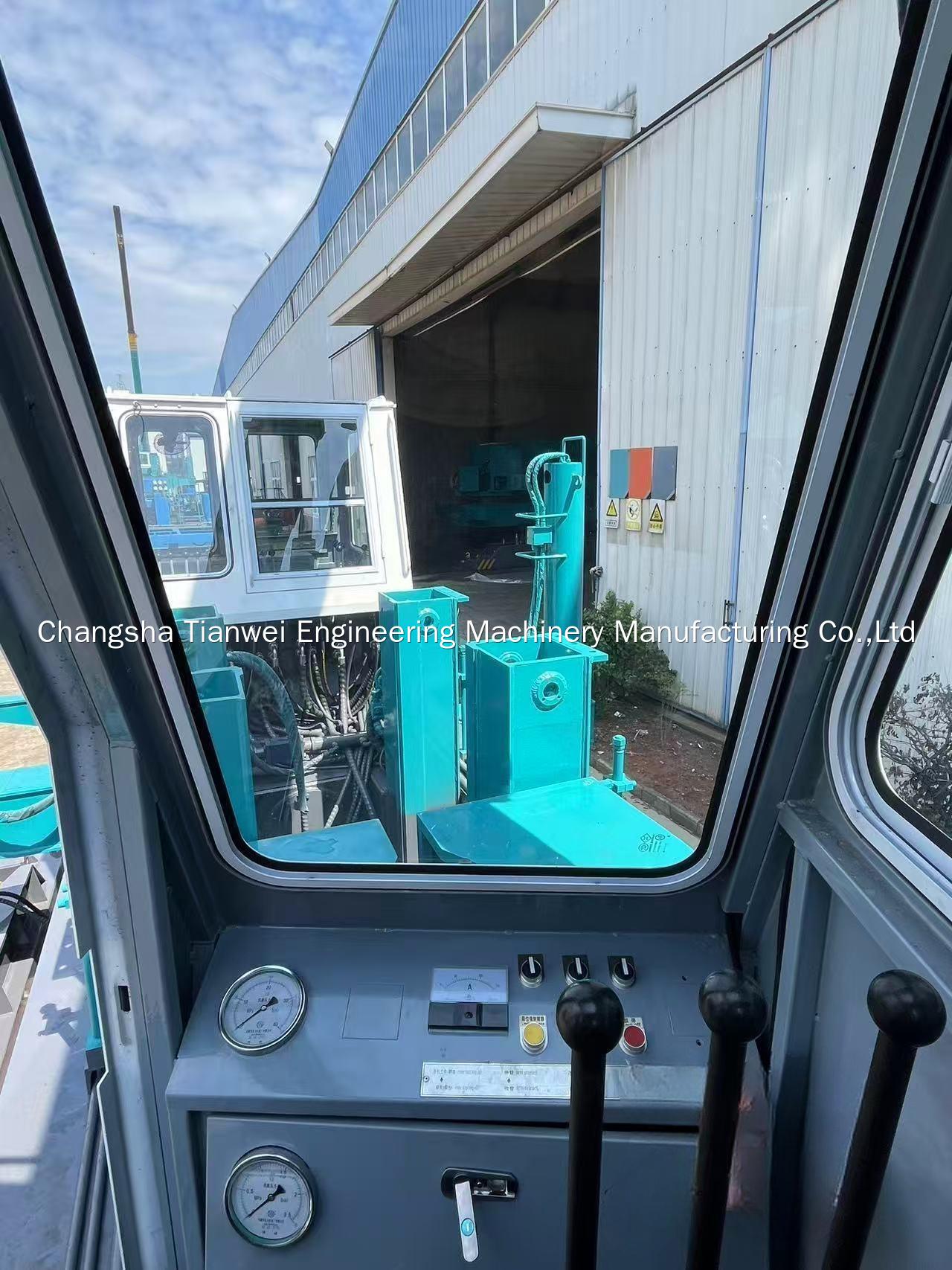

- Visual Instrument Panel Layout: The instrument panel adopts a "zoned arrangement" design. Core data such as pile-driving force, depth, and oil pressure are displayed in clear fonts and striking colors. Operators can grasp key information with a quick glance, avoiding operational delays caused by lowering the head to identify data.

- Neat Storage of Operation Panels: Buttons and knobs are arranged in zones based on "frequency of use". Frequently used functions such as the "emergency stop button" and "crane lifting control" are placed within easy reach, reducing the risk of misoperation.

 III. All-Weather Comfort & Protection: Turning the Cabin into a "Mobile Workstation"

The on-site construction environment is complex, and factors such as high temperatures, low temperatures, and rain often affect operating experience. T-works has integrated "environmentally adaptive" designs into the cabin’s details to create a comfortable working space:

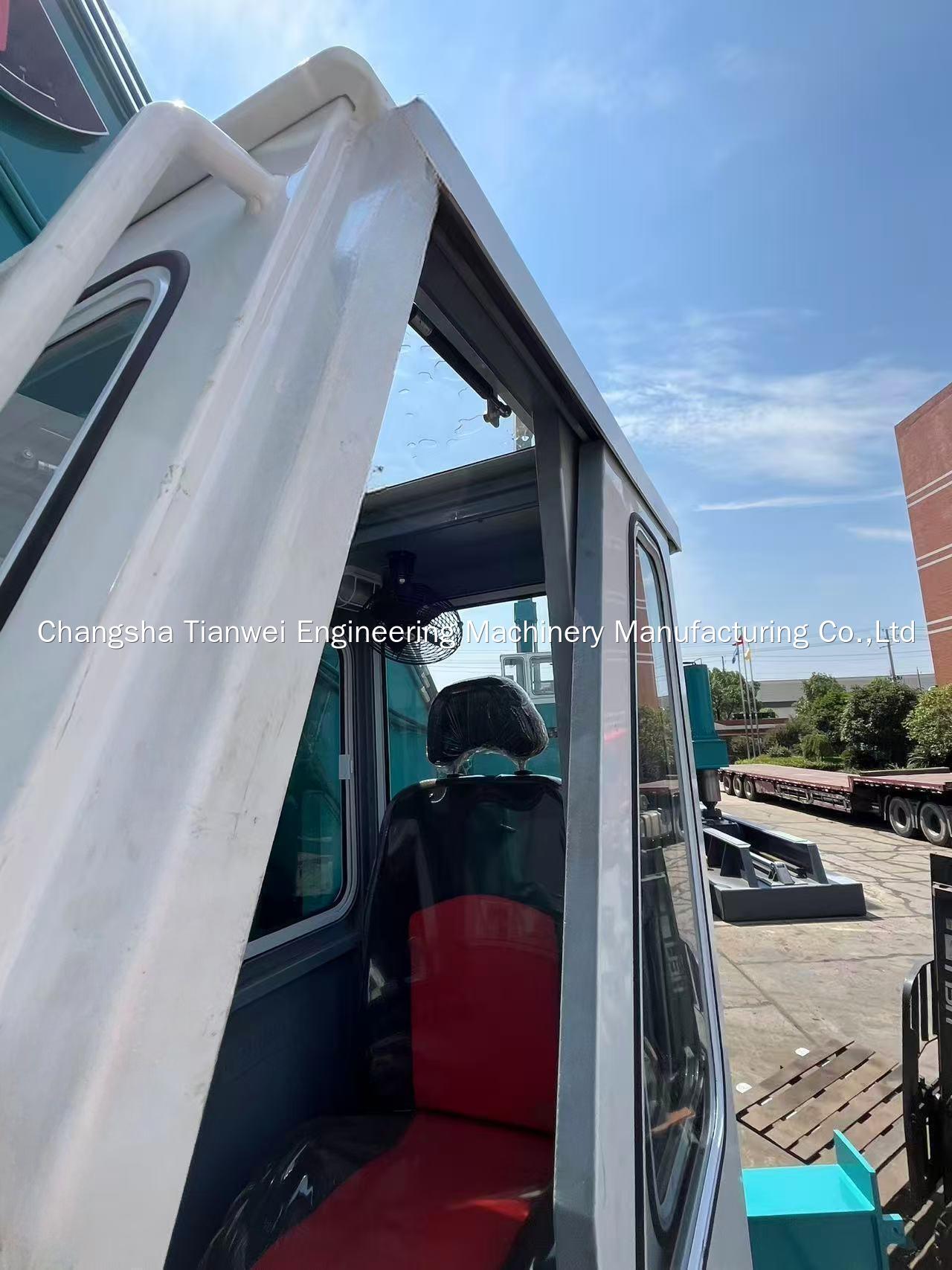

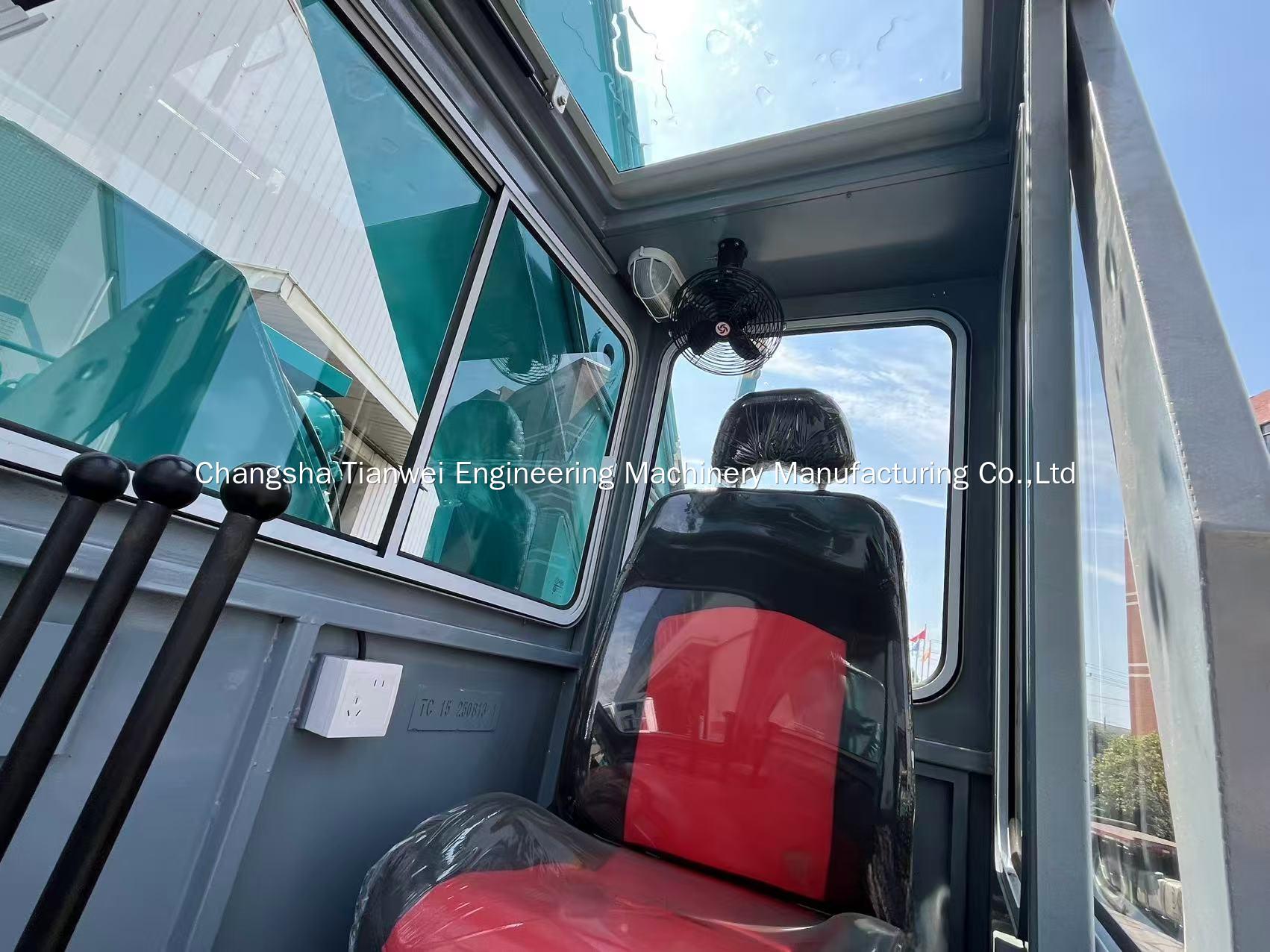

- Humanized Comfort Configuration: The crane operator cabin is equipped with wide soft leather seats, whose curvature fits the human waist and back curve—alleviating back soreness caused by prolonged sitting. Meanwhile, both cabins are equipped with standard portable fans to cope with high temperatures on construction sites, and air circulation is enhanced when combined with openable windows.

- All-Weather Lighting Support: High-brightness lights are installed inside the cabin, with light intensity suitable for low-light operation scenarios such as night shifts and tunnels. Even in dim environments, operators can clearly see the operation panel and external pile positions.

- Triple Sealing Protection: High-elasticity sealing strips are added to the window edges, achieving "triple protection" (waterproof, high-temperature resistant, low-temperature resistant). Rainwater does not seep into the cabin on rainy days; external high temperatures are insulated in summer, and heat loss is reduced in winter—maintaining a comfortable temperature inside the cabin.

 IV. Customized Services: Adapting Equipment to "Every Construction Site"

Different construction sites and operators have varying needs. Relying on its independent patented design capabilities, T-works provides customized cabin services for customers: For example, hypoxia warning devices can be added for high-altitude construction sites; seat heating functions can be upgraded for cold regions in northern China; and additional storage space and rest cushions can be installed for large-scale projects requiring shift work. "Starting from customer needs to make each piece of equipment 'tailor-made'" has become one of the core competitive advantages of T-works' static pile drivers.

"The cabin may be small, but it is a 'key fulcrum' for construction efficiency and safety," said a technical director at Changsha Tianwei. "Two decades of manufacturing experience and more than ten years of export service experience have enabled us to better understand the operational needs of construction sites around the world." Currently, T-works' static pile drivers are widely used in infrastructure projects in Southeast Asia, the Middle East, and other regions, and the design of their operator cabins has won consistent recognition from overseas customers.

To learn more about the technical details of T-works' static pile drivers or to customize equipment solutions that fit your project needs, please contact us via the official channels: Tel: 0731-8320-9466; Email: info@t-works.cc
