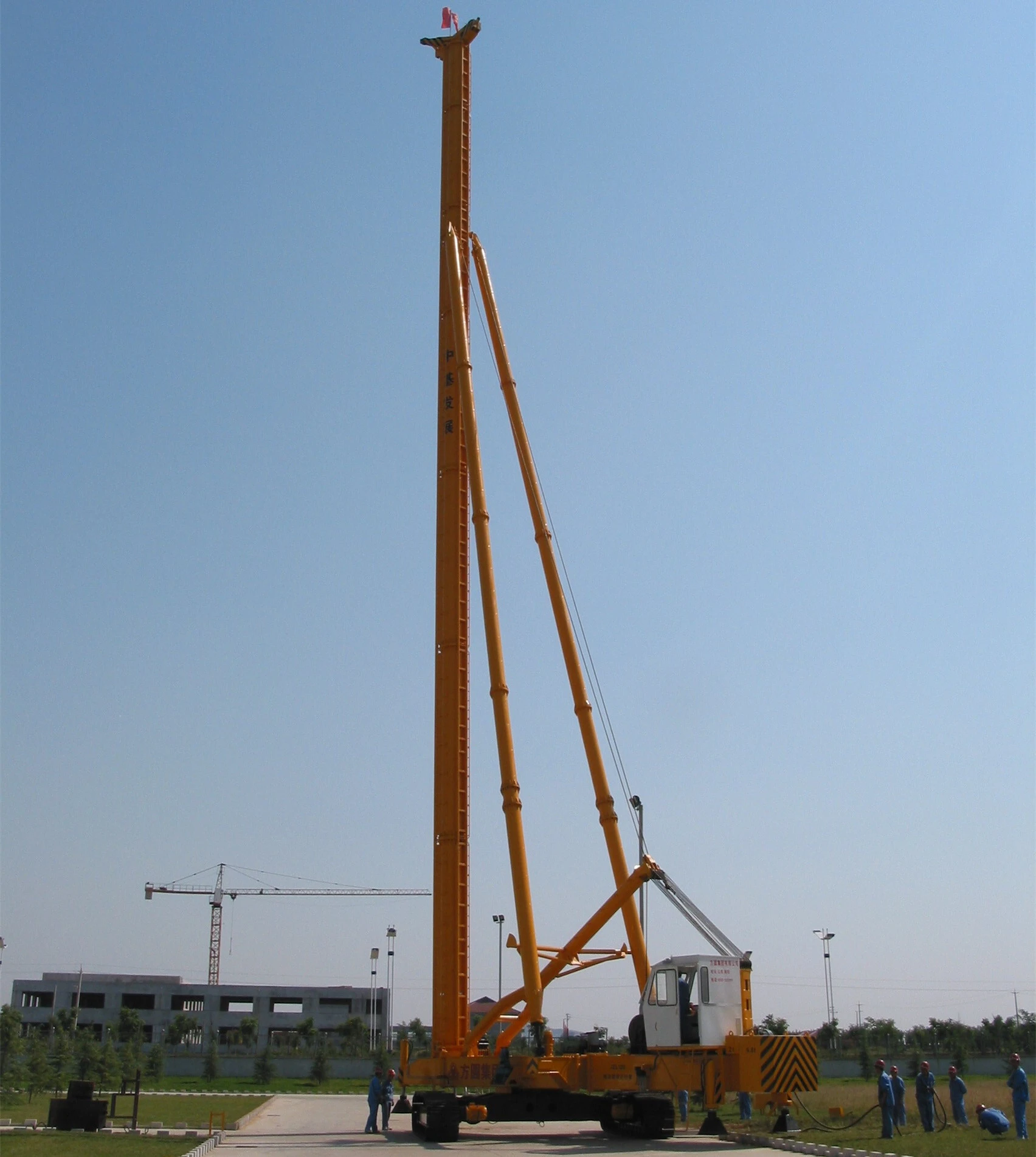

T-works - screw bored pile drilling rig Bored Pile Drilling Rig

Technologies have been upgraded by our technical staff to speed up our manufacturing process, reduce the cost, and enhance product value.Based on those advantages, screw bored pile drilling rig is superior in the field(s) of Mine Drilling Rig.

Customization:

Graphic customization (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Special design is available (Min. Order: 1 sets)

shipping:

Express Sea freight · Land freight · Air freight

Inquiry

Write a Review

With strong ability of product research and development, T-works ensures new products are launched on a regular basis. Our new product screw bored pile drilling rig is a totally new series and has different features. Technological innovation is an important factor for products to form core competitiveness and maintain competitive advantage. T-works will introduce more advanced and innovative technology, and will gather more professional talents together.

Applicable Industries:	Construction works	Showroom Location:	Indonesia, Thailand, Malaysia
Condition:	New	Type:	Rotary Drilling Rig
Power Type:	Electric	Place of Origin:	Hunan, China
Brand Name:	T.Works	Usage:	Other
Voltage:	380V	Dimension(LWH):	11.5m*6.0m
Weight:	60000 KG	Warranty:	1 year
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video outgoing-inspection:	Provided	Warranty of core components:	1 Year
Core Components:	Motor, Pressure vessel, Pump, PLC, Other, Gear, Bearing, Engine, Gearbox	Key Selling Points:	Competitive Price
Drilling Diameter:	300mm, 700mm, 200mm, 450mm, 800mm, 600mm	Drilling Depth:	Max.40m
Brand:	T-works

Product Description

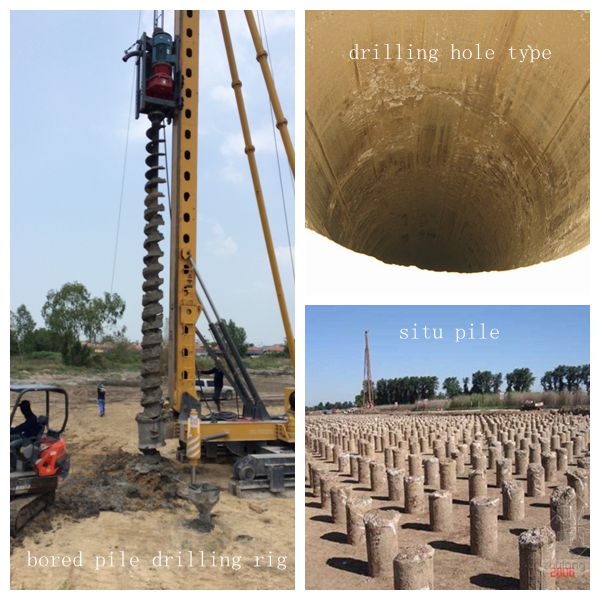

Firstly, Advantages for the bored pile drilling rig :

1.Crawling mechanism and walking mechanism can be ex-changed.

2.The column can be adjusted from two sides to ensure verticality of the drilling hole.

3.drilling and piling at the same time. Improves the efficiency of drilling holes and shortens the time of the project.

4. No noise, no vibration, no pollution and good quality of drilling holes.

5. Accuracy and convenience in position by up and down the column

6.Operation systems like electronic system, hydraulic system, monitor system are all gathered in the operation room for comfortable and convenient operation.

secondly, Structure design:

1. The column is foldable. The complete appliance can attached with towing device to be transported from different construction sites.

2. The power head system uses three-ring reducer mechanism, with great weight bearing capacity, and reliable in use.

3. The side adjustment mechanism can work independently to adjust the verticality of the column.

4. Spiral vane of the drilling rod uses high quality carbon steel 16Mn, which is hard-wearing, good in strength. The bit inlays carbide blades to drill faster than normal.

5. The main windlass uses reducer with greater reduction ratio, which is simple in structure but good in the rope-arranging work.

ITEM		KLB32-800
walking way		electrical foot-step
max drilling depth		32m
max drilling diameter		800mm
max output torque		65KN.m
rod rotated speed		20r/min
allowed lifting force		640KN
power for power head		55KW*2
reductor of power head		ZZSH480-60
stanchion supporting way		three points support
stanchion size		630mm
stanchion depth		36.6m
stanchion oriented center distance		600*102
stanchion incline range		front inclination 5° back inclination 3°
rotory	rotary way	rotary motor
	rotary angle	≤360°
	rotary speed	0.25r/min
stroke		1.8m
lenth of the walking track		7.3m
gradeability		4°
speed of incline adjust line		0.55r/min
main windlass	single pulling force	8T
	motor power	22KW
	increasing speed	18.5m/min
subsidiary windlass	single pulling force	3T
	motor power	13KW
	lifting speed	25m/min
overall dimensionL*W		11.5m*6m
total weight(T)		60

Packaging & Shipping

1) Minimum order: 1 unit.

2) Valid period: 15days.

3) Package: Nude package.

4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.

5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.

Our Services

♣ To train operating,maintenance and construction people for our customers.

♣ Always be ready to answer technical questions concerned from our customers.

♣ Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.

♣ To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.

♣ Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.

♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
