Bored Pile Drilling Rig Horizontal directional bore well soil drilling machine
Horizontal directional bore well soil drilling machine with good performance and reliable quality are created by conforming to the development trend of the industry, integrating internal superior resources, and adopting the industry’s cutting-edge manufacturing technology and production process.Therefore, It has been proved that the product can be applied to Pile Drivers.
A bored pile drilling rig is a heavy-duty hydraulic construction machine designed to excavate vertical shafts (holes) in the ground for deep foundation piles, often up to 4 meters in diameter and over 100 meters deep. It uses a rotary drilling method with tools like augers or buckets to remove soil, often in challenging, stiff, or rocky conditions where driven piles are unsuitable.
Advantages of pile boring machine
High capacity for large, heavy vertical loads (e.g., bridges, high-rise buildings).
Minimal vibration and noise compared to pile driving, making them ideal for urban areas.
Ability to reach deep bearing strata.
As a professional bored pile drilling machine manufacturer, T-works through years of painstaking research, relying on mature R&D technology and precise market positioning, we have created Horizontal directional bore well soil drilling machine/ bore well drilling machine. The quality of the Horizontal directional bore well soil drilling machine is at the leading level in the industry and is inseparable from the hard work and innovation of outstanding technical personnel. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, T-works believe that we will stay ahead of other competitors in the future.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 8.0 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 90000 kg | Dimension(L*W*H): | 11.5m * 6m* 32m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Overseas third-party support available | Color: | Customized |
| Advantage: | Lower energy consumption |
|

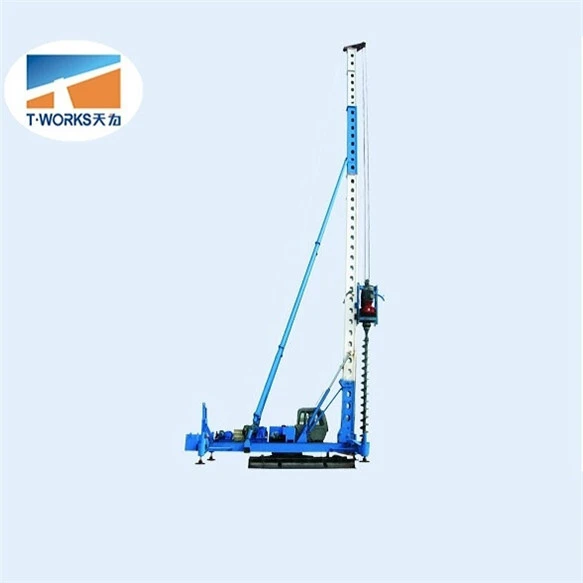

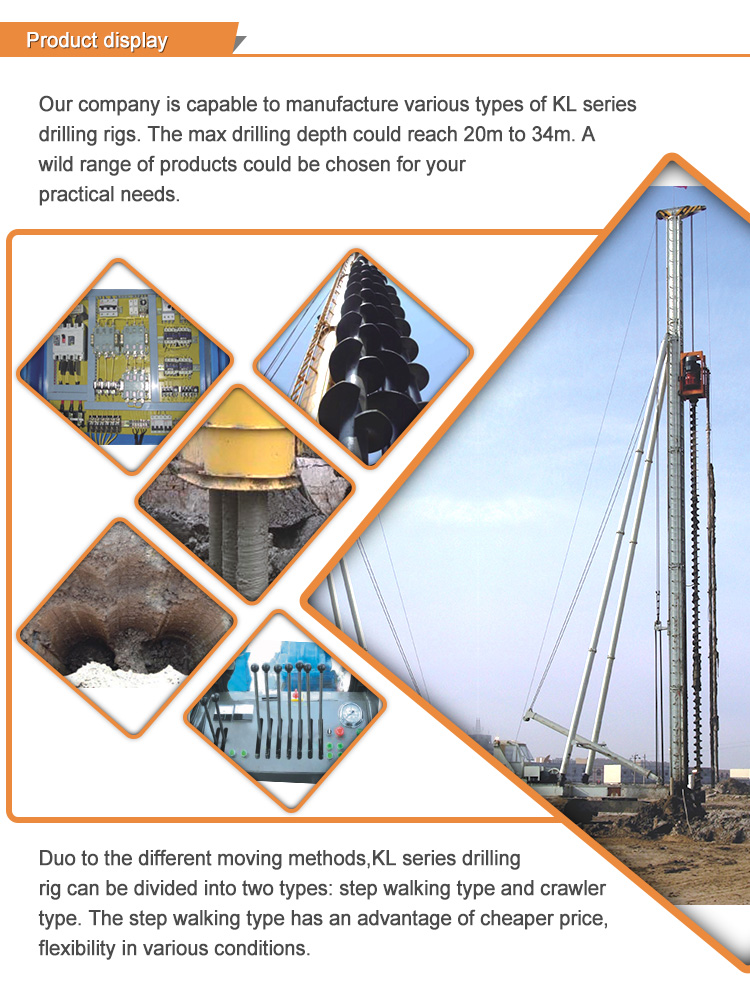

KLB WALKING TYPE |
KLU32-800 |
|
Movement method |
crawler walking-type |
|
Max drilling depth |
32m |
|
Max drilling diameter |
800mm |
|
Max output torque |
65KN.m |
|
Rod rotated speed |
20r/min |
|
Allowed lifting force |
6400KN |
|
Power of power head |
55KW*2 |
|
Reductor of power head |
ZZSH480 |
|
Leader size |
rectangle section |
|
Leader height |
23m |
|
Leader oriented center distance |
600*102 |
|
Leader inclined range |
front inclination 5° |
|
Walking stroke |
1.8m |
|
Climbing ability of pile frame |
4° |
|
Rotary |
rotary motor |
|
≤360° |
|
|
0.25r/min |
|
|
Main winch |
7T |
|
22KW |
|
|
1.8/2.2/2.6 |
|
|
Vice winch |
3T |
|
11KW |
|
|
20m/min |
|
|
erall dimension(L*W) |
11.5m*6m |
|
Total weight(T) |
78 |
