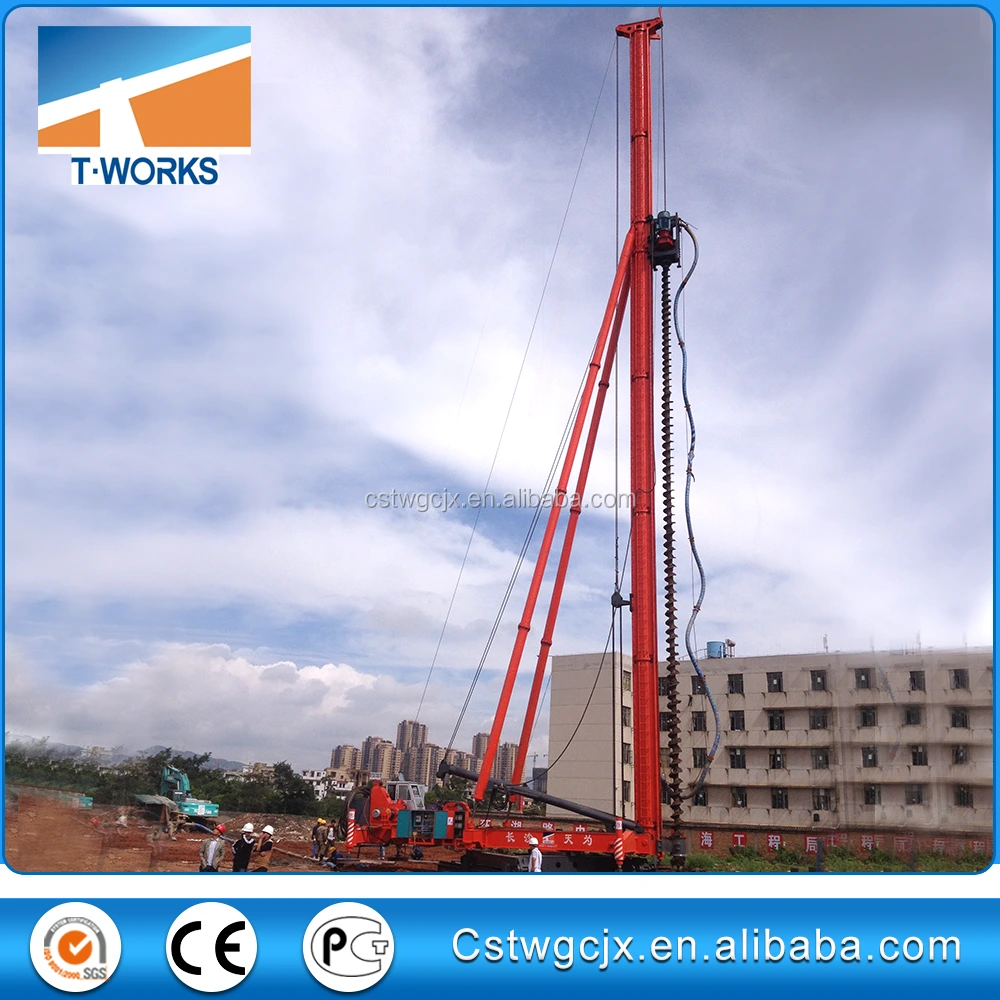

T-works - Bored Pile Drilling Rig KLU20-600 Bored Pile Drilling Rig

Having introduced high-end innovative technologies, T-works has shortened the period of product development. Based on scientific strategic decision-making, driven by strong operating capabilities, and driven by technology and R&D capabilities, the products developed and manufactured have clear positioning and goals. T-works will continually adopt positive marketing strategies to develop new markets, therefore establishing a more sound sales network. Moreover, we will reinforce the scientific research and try hard to gather more talents to focus on the research and development of new products. Our wish is to become one of the most competitive enterprises in the market.

 Advantages

1.Crawling mechanism and walking mechanism can be ex-changed.

2.The column can be adjusted from two sides to ensure verticality of the drilling hole.

3.Drilling and piling at the same time. Improves the efficiency of drilling holes and shortens the time of the project..

4. No noise, no vibration, no pollution and good quality of drilling holes.

5. Accuracy and convenience in position by up and down the column.

6.Operation systems like electronic system, hydraulic system, monitor system are all gathered in the operation room for comfortable and convenient operation..

  Structure design

1. The column is foldable. The complete appliance can attached with towing device to be transported from different construction sites.

2. The power head system uses three-ring  reducer mechanism, with great weight bearing capacity, and reliable in use.

3. The side adjustment mechanism can work independently to adjust the verticality of the column.

4. Spiral vane of the drilling rod uses high quality carbon steel 16Mn, which is hard-wearing, good in strength. The bit inlays carbide blades to drill faster than normal.

5. The main windlass uses reducer with greater reduction ratio, which is simple in structure but good in the rope-arranging work.
