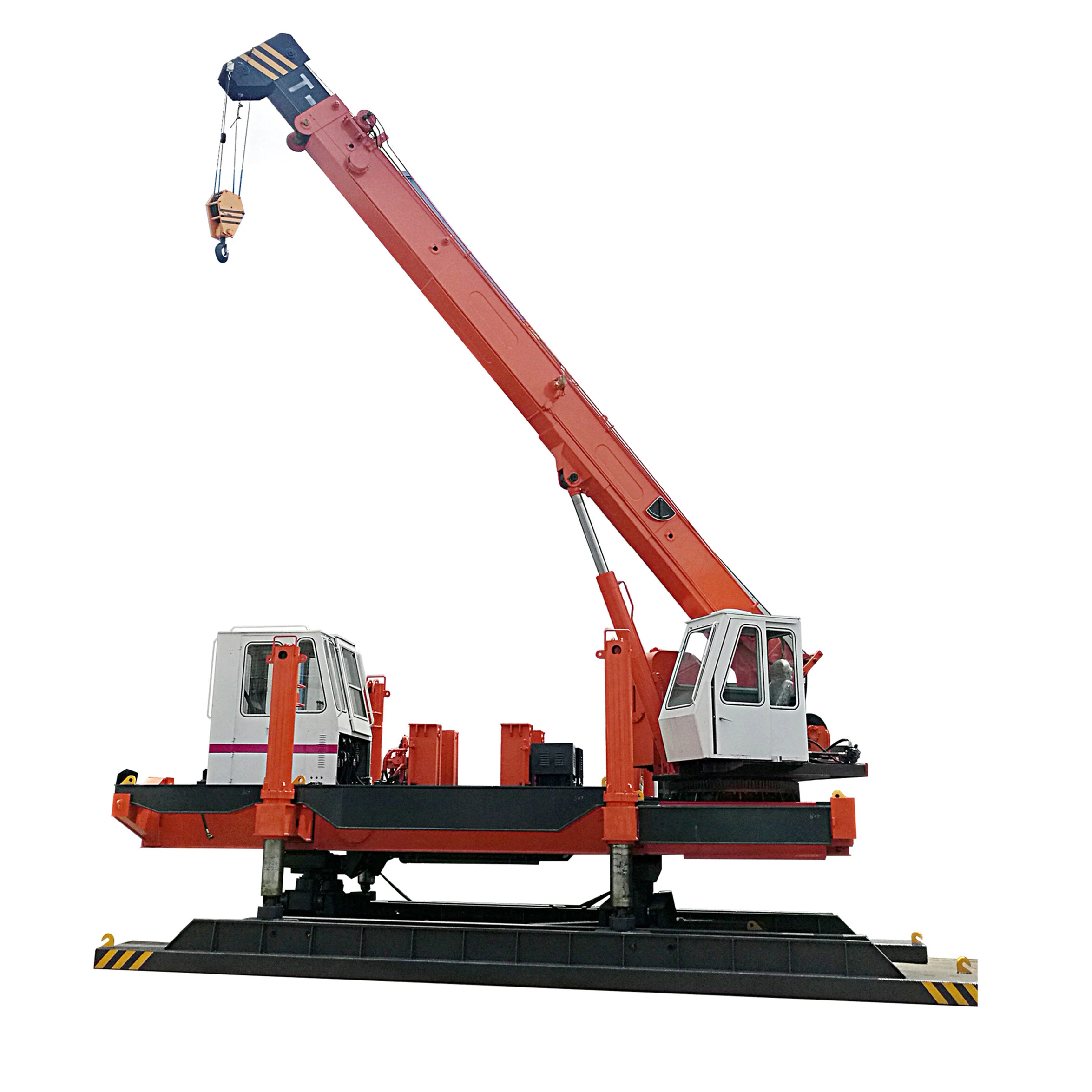

T-works mini construction piling machine for silent piling ZYc120 Hydraulic Static Pile Driver
T-works mini construction piling machine for silent piling ：ZYC120 is the product of combining the efforts and wisdom of all experienced employees.Hydraulic Static Pile Driver, Drilling rigs, Crawler dumper truck is manufactured to be quality-guaranteed and certified under authoritative institutions.It's multi-functional and practical features that help provide customers with benefits.
Our employees are skilled at utilizing state-of-the-art technologies.In the application field(s) of Pile Drivers, T-works mini construction piling machine for silent piling ZYc120 is widely used and highly recognized by users. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like Pile Drivers requiring very high quality. T-works will always adhere to the business philosophy of honesty, innovation, integrity to run our business. We believe that with the combined efforts of all our employees, we have enough skills and capabilities to overcome all obstacles and difficulties to make some achievements in the future.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 8.5 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 120000 kg | Dimension(L*W*H): | 9.1*4.7*2.7 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 8T or 12T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile |
| Suitable pile size: | Max 600mm for round,550mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic pressure to jacking in pile | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| After-sale service: | Engineer available any time |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 80 | 100 | 120 | 150 | 180 | 220 | 260 | ||
| Rated piling pressure(KN) | 800 | 1000 | 1200 | 1500 | 1800 | 2200 | 2600 | |
| Piling speed(m/min) | Fast | 4.5 | 6.5 | 6.5 | 5.3 | 8.7 | 8.7 | 7.2 |
| Low | 2.2 | 3.0 | 3.0 | 3.0 | 2.7 | 2.7 | 1.8 | |
| Piling stroke(m) | 1.6 | 1.6 | 1.6 | 1.6 | 1.9 | 1.9 | 1.9 | |
| Pace(m) | Longitudinal | 1.5 | 1.5 | 1.5 | 1.6 | 2.4 | 2.4 | 2.4 |
| Horizontal | 0.4 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 | 0.6 | |
| Angle range(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Rise stroke (m) | 1.25 | 1.45 | 1.45 | 1.45 | 1.6 | 1.6 | 1.0 | |
| Square pile (mm) | Max | 300 | 300 | 400 | 400 | 400 | 500 | 500 |
| Circle pile (mm) | Max | 300 | 300 | 400 | 400 | 400 | 500 | 500 |
| Side piling space(mm) | 300 | 400 | 400 | 400 | 400 | 950 | 950 | |
| Corner piling space(mm) | 500 | 800 | 800 | 800 | 800 | 1900 | 1900 | |
| Lifting weight(t) | 5.0 | 5.0 | 8.0 | 8.0 | 8.0 | 8.0 | 12.0 | |
| Lifting pile's lengh(m) | 8.0 | 8.0 | 10.0 | 10.0 | 10.0 | 10.0 | 14.0 | |
| Power(KW) | Piling | 18.5 | 37 | 37 | 37 | 60 | 60 | 60 |
| Lifting | 11 | 11 | 22 | 22 | 22 | 30 | 30 | |
| Main dimension (m) | Work length | 5.4 | 7.4 | 9.1 | 9.1 | 9.5 | 9.9 | 11.3 |
| Work width | 3.9 | 4.2 | 4.7 | 4.7 | 4.7 | 5.5 | 6.3 | |
| Transport height | 2.0 | 2.7 | 2.9 | 2.9 | 2.9 | 3.0 | 3.0 | |
| Total weight(T)≥ | 80 | 100 | 120 | 150 | 180 | 220 | 260 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
