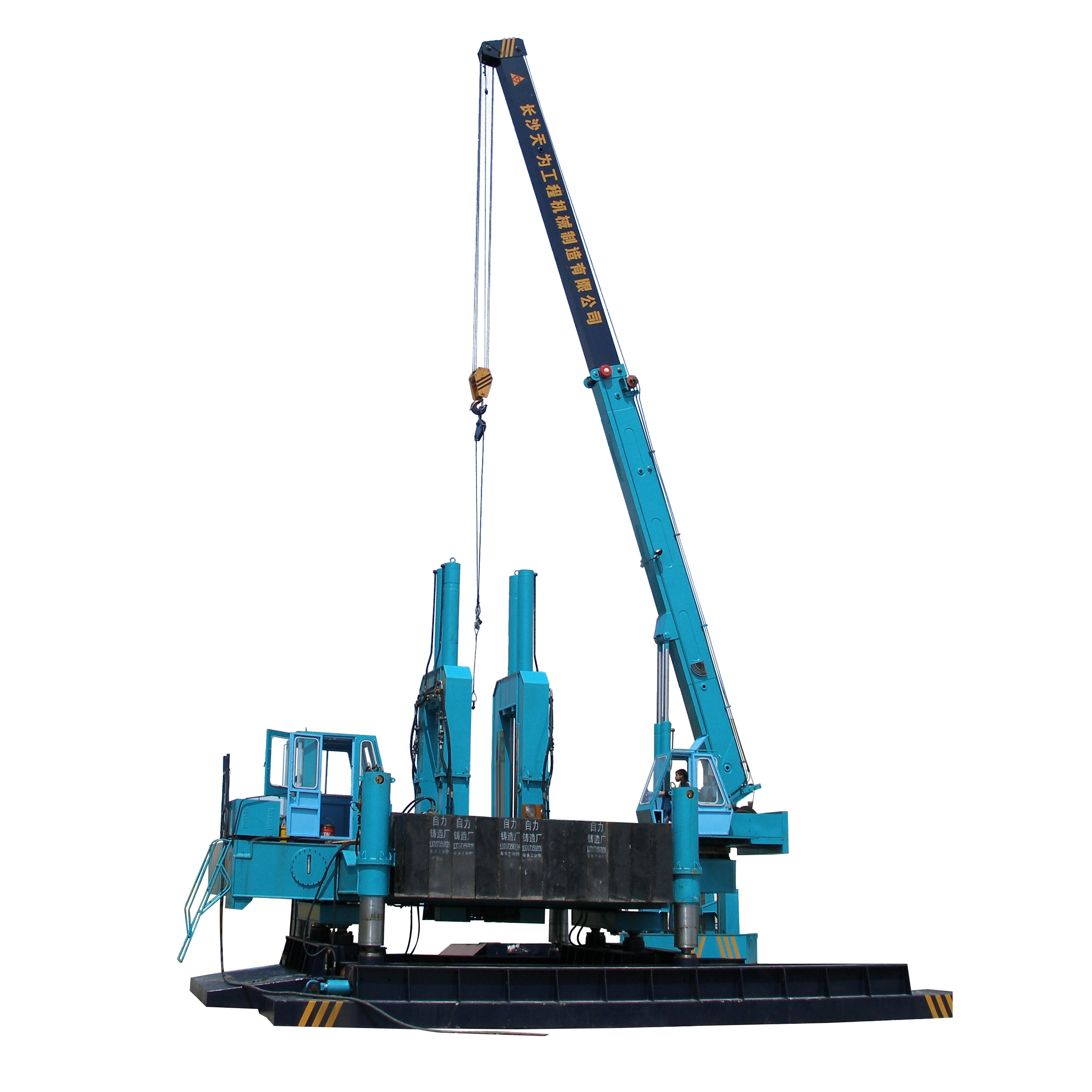

T-works - 680T Hydraulic static pile driver and foundation pile equipment
To promote the product advantages, we have successfully introduced modern technologies to the manufacturing process of 680T Hydraulic static pile driver and foundation pile equipment.The more multi-functional the product is, the more broadly it will be used. It is widely used in the field(s) of Pile Drivers.
Produced with the latest technology, 680T Hydraulic static pile driver and foundation pile equipment ranks top in the industry. The use of in 680T Hydraulic static pile driver and foundation pile equipment manufacturing has allowed us for more efficient use of resources and personnel.The product is highly recognized in the application field(s) of Pile Drivers. We have been in the trade for over many years and are a well established business with a wealth of experience and expertise.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | high efficiency | Piling Speed(m/min): | 7.2m |
| Place of Origin: | Hunan, China | Brand Name: | T.works |
| Weight: | 680000 kg | Dimension(L*W*H): | 14.8m*8.3m*3.4m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas | Made by T-works: | From Changsha Tianwei |
| Suitable pile: | Concrete precast pile,sheet pile,steel tube,H-pile | Suitable pile shape: | Sheet pile,round/square pile,triangle pile,H-pile |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Side piling mechanism: | 3types available for customer |
| Crane mounted: | from 20T or 25T available for customers | Suitable pile size: | Max 300mmfor round,300mm for square |
| New foundation machine: | A embracing pile driving method | New piling machine: | Adopt hydraulic to jacking in pile to avoid the noise and pollution |
1000T no dig drilling machine Hydraulic static pile driver and foundation pile equipment
paramete / type/model | ZYC680 | |
Rated piling pressure(KN) | 6800 | |
(m/min) Piling speed | Fast | 7.2 |
Low | 1.0 | |
Piling stroke(m) | 1.9 | |
Pace(m) | Longitudinal | 3.6 |
Horizontal | 0.7 | |
Angle range(°) | 11 | |
Rise stroke (m) | 1.2 | |
(mm) Square pile | Max | 800 |
(mm) Circle pile | Max | 650 |
Side piling space(mm) | 1350 | |
Corner piling space(mm) | 2700 | |
Lifting weight(t) | 25.0 | |
Lifting pile's lengh(m) | 17.0 | |
Power(KW) | Piling | 111 |
Lifting | 37 | |
Main dimension(m) | Work length | 14.8 |
Work width | 8.3 | |
Transport height | 3.4 | |
Total weight(T)≥ | 680 | |
PRODUCTS
T-works will provide not only reliable piling machinery products butalso excellent and efficient service.
