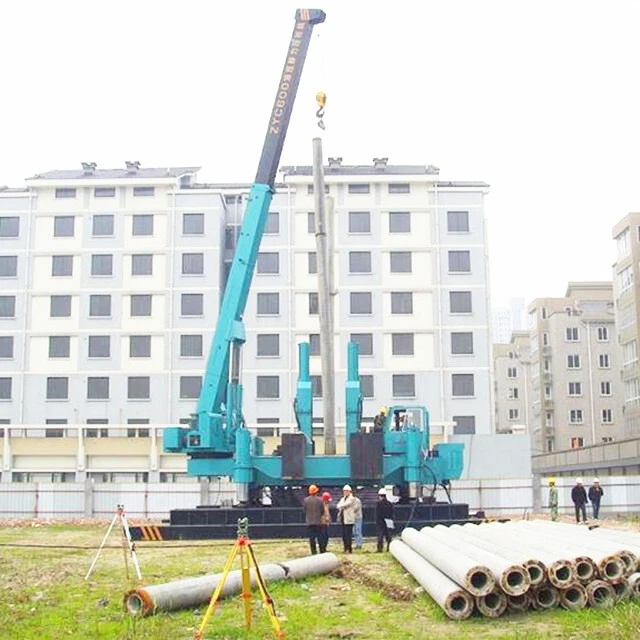

T-works - Hydraulic press-in pile driving machine ZYC 600 1000T Hydraulic Static Pile Driver
Hydraulic press-in pile driving machine with hydraulic screw pile driver ZYC 600 1000T has been widely acclaimed for its competitive characteristics because we have been subject to meeting the industry standard.The fields of application include Hydraulic Static Pile Driver.
Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability, the product is suitable for the field(s) of Hydraulic Static Pile Driver. Our product can be tailored to suit you perfectly. At present, T-works are still a growing enterprise with a strong ambition to become one of the most competitive enterprises in the market. We will continue to research and develop new technologies for the birth of new products. Also, we will grasp the precious tide of opening up and reform to attract customers all over the world.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | high efficiency | Piling Speed(m/min): | 7.2m |
| Place of Origin: | Hunan, China | Brand Name: | T.works |
| Weight: | 1000000 kg | Dimension(L*W*H): | 16m*8.9m*3.4m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas | Made by T-works: | From Changsha Tianwei |
| Suitable pile: | Concrete precast pile,sheet pile,steel tube,H-pile | Suitable pile shape: | Sheet pile,round/square pile,triangle pile,H-pile |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Side piling mechanism: | 3types available for customer |
| Crane mounted: | from 5T or 8T available for customers | Suitable pile size: | Max 300mmfor round,300mm for square |
| New foundation machine: | A embracing pile driving method | New piling machine: | Adopt hydraulic to jacking in pile to avoid the noise and pollution |
ZYC 600 1000T Hydraulic press-in pile driving machine with hydraulic screw pile driver
paramete / type/model | ZYC1000 | |
Rated piling pressure(KN) | 10000 | |
(m/min) Piling speed | Fast | 7.2 |
Low | 1.0 | |
Piling stroke(m) | 1.9 | |
Pace(m) | Longitudinal | 3.6 |
Horizontal | 0.7 | |
Angle range(°) | 15 | |
Rise stroke (m) | 1.2 | |
(mm) Square pile | Max | 650 |
(mm) Circle pile | Max | 800 |
Side piling space(mm) | 1400 | |
Corner piling space(mm) | 2800 | |
Lifting weight(t) | 25 | |
Lifting pile's lengh(m) | 17 | |
Power(KW) | Piling | 141 |
Lifting | 37 | |
Main dimension(m) | Work length | 16 |
Work width | 8.9 | |
Transport height | 3.4 | |
Total weight(T)≥ | 1000 | |
