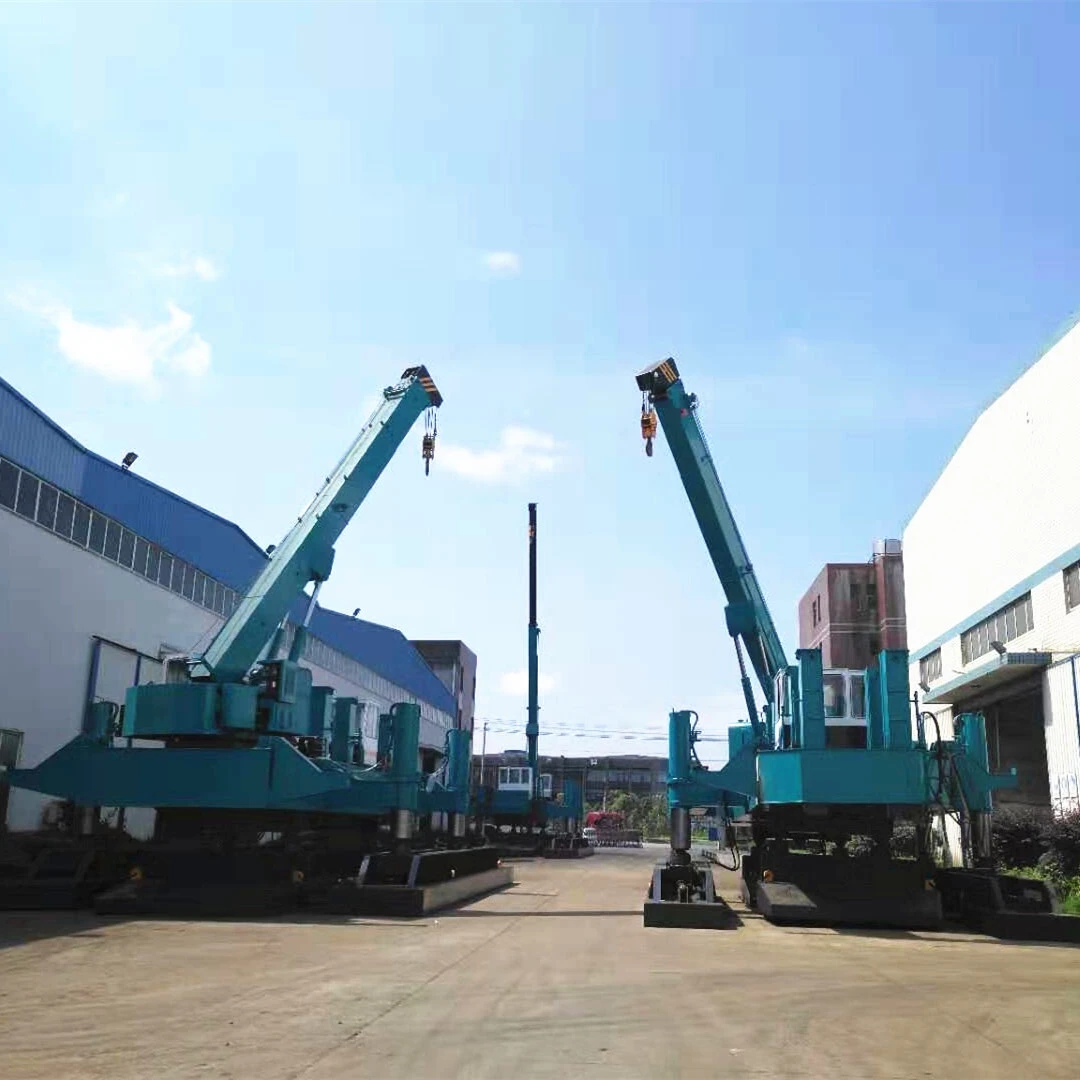

T-works Pile drilling machine with no noise and vibration Hydraulic Static Pile Driver
To a large extent,the Pile Drivers's appearance, features, packages, etc. can be the important factors that attract customers. In the process of development of Hydraulic Static Pile Driver, Drilling rigs, Crawler dumper truck, our designers have been following the latest trend and analyzing customers' tastes, thereby, making the Hydraulic Static Pile Driver, Drilling rigs, Crawler dumper truck unique in its structure and design style. As for its features, we try to make it outstanding by adopting high-level raw materials.
T-works is excited that we will make our pile drilling machine with no noise and vibration widely known to the market. The product is the result of our hardworking staff and strong technical capabilities. T-works pile driver manufacturers have been investing heavily in R&D and upgrades of technologies. This has given initial results eventually. As T-works Pile drilling machine with no noise and vibration advantages are discovered continually, it has been widely used in the field(s) of Pile Drivers. The design is the most striking aspect of T-works. Its design comes from our designers who are sensitive to fashion and are know the commercial needs of the market very well. Also, Hydraulic Static Pile Driver, Drilling rigs, Crawler dumper truck made of well-selected raw materials.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 8.5 |
| Place of Origin: | Hunan, China | Brand Name: | T-works |
| Weight: | 360 kg | Dimension(L*W*H): | 12.7*7.1*3.15 |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Features: | No noise, no pollution, no vibration | Crane mounted: | 16T or 20T lifting capacity available for customers |
| Side piling mechanism: | Available for customers | Suitable pile: | Tube, concrete pile, sheet pile,PHC pile |
| Suitable pile size: | Max 600mm for round,550mm for square | New foundation machine: | A embracing pile driving method |
| New piling machine: | Adopt hydraulic pressure to jacking in pile | Suitable place: | Soft soil, clay,sand, noise-sensitive areas for construction |
| After-sale service: | Engineer available any time | Local Service Location: | Viet Nam, Indonesia, Russia, Thailand, Malaysia, Colombia, Romania, Ukraine |
| After-sales Service Provided: | Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service | Certification: | ISO9001 |
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 360 | 460 | 600 | 680 | 860 | 960 | 1060 | ||
| Rated piling pressure(KN) | 3600 | 4600 | 6000 | 6800 | 8600 | 9600 | 10600 | |
| Piling speed(m/min) | Fast | 7.8 | 9 | 7.9 | 9 | 9 | 9.8 | 8 |
| Low | 1.9 | 1.6 | 1.4 | 1 | 1.1 | 1.1 | 1 | |
| Piling stroke(m) | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | |
| Pace(m) | Longitudinal | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Horizontal | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.60 | |
| Angle range(°) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| Rise stroke (m) | 1.1 | 1.1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Square pile (mm) | Max | 500 | 500 | 650 | 650 | 650 | 650 | 650 |
| Circle pile (mm) | Max | 600 | 600 | 800 | 800 | 800 | 800 | 800 |
| Side piling space(mm) | 1250 | 1250 | 1380 | 1380 | 1400 | 1400 | 1600 | |
| Corner piling space(mm) | 2500 | 2500 | 2800 | 2800 | 2800 | 2800 | 3200 | |
| Lifting weight(t) | 16 | 16 | 20 | 25 | 25 | 25 | 25 | |
| Lifting pile's lengh(m) | 16 | 16 | 16 | 17 | 17 | 17 | 17 | |
| Power(KW) | Piling | 74 | 111 | 111 | 111 | 141 | 141 | 165 |
| Lifting | 30 | 30 | 30 | 37 | 37 | 37 | 37 | |
| Main dimension (m) | Work length | 12.7 | 13 | 13.8 | 14 | 14.7 | 14.8 | 16 |
| Work width | 7.1 | 7.4 | 8.12 | 8.3 | 8.52 | 8.9 | 8.9 | |
| Transport height | 3.15 | 3.25 | 3.3 | 3.3 | 3.3 | 3.4 | 3.4 | |
| Total weight(T)≥ | 360 | 460 | 600 | 680 | 860 | 960 | 1060 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
