T-works - Silent Pile Driving Machine for Concrete Pile Foundation With Fast Piling Speed and Low Noise
After years of development, we have successfully worked out the most effective techniques and been skilled at applying them to the manufacturing process.Its application scenarios have been expanded to Pile Drivers.
Silent Pile Driving Machine for Concrete, Pile Foundation With Fast Piling Speed and Low Noise launched by T-works has a clear positioning and is a product designed to solve industry pain points. Apart from the benefits for general consumers, Silent Pile Driving Machine for Concrete, Pile Foundation With Fast Piling Speed and Low Noise can offer amazing advantages to businesses in terms of sales and customer satisfaction. To meet various needs of customers, T-works supports customized Silent Pile Driving Machine for Concrete, Pile Foundation With Fast Piling Speed and Low Noise.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 9600KN | Piling Speed(m/min): | 8.0 |
| Place of Origin: | Hunan, China | Brand Name: | T-WORKS |
| Weight: | 960 kg | Dimension(L*W*H): | 14.8X8.42X3.4(M) |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| Product Name: | Hydraulic Static Pile Driver | Brand: | T-WORKS |
| Rated Piling Pressure: | 9600KN | Piling Speed: | 7.2m/min |
| Crane Lifting Capacity: | 25t | Max Square Pile Size: | 650mm |
| Max Spun Pile Size: | 800mm | Color: | Customer's Requirement |

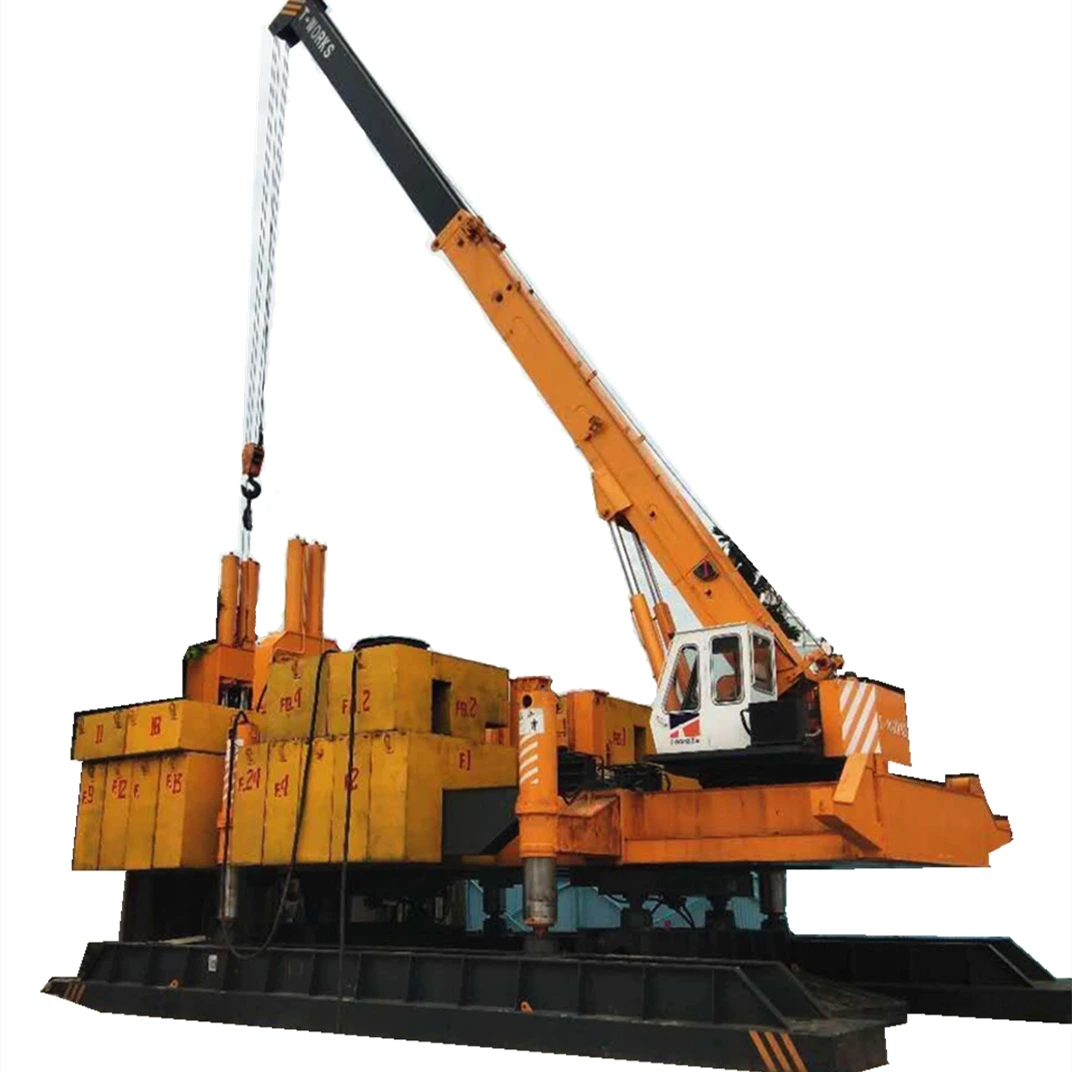

Silent Pile Driving Machine for Concrete Pile Foundation With Fast Piling Speed and Low Noise
1, Description:
Hydraulic Piling Machine is a foundation construction method of novel environmental protection pile driving which applies static pressure to press the precast pile into the foundation smoothly. Until the 80's the method has been generalized with the development of pile machinery and improvement of environmental protection idea. Currently, static pile construction has been applied generally in national pile foundation.
2, Applications:
No limitation on pile length. Suitable for construction in clay soil, soft soil and sand bed foundation, or in the Karst areas with low earth covering, or by riversides, or in coastal areas with deep bearing stratum.
No noise, No pollution during construction, especially suitable for operations in areas with noise control such as schools, social communities, and urban areas.
No vibrations. Suitable for vibration-control areas such as subways, overpass, dangerous buildings, precision instrument buildings and those nearby banks.
3.THE TECHNICAL PARAMETERS OF CONCRETE PILE MACHINE:
| parameter/ type | ZYC960 | |
| rated piling pressure(KN) | 9600 | |
| piling speed(m/min) | fast | 8 |
| low | 1.02 | |
| piling stroke(m) | 1.9 | |
| pace(m) | longitudinal | 3.6 |
| horizontal | 0.7 | |
| angle range(°) | 8 | |
| rise stroke (m) | 1.2 | |
| square pile(mm) | max | 600 |
| cirle pile(mm) | max | Φ800 |
| side piling space(mm) | 1600 | |
| cirle piling space(mm) | 3200 | |
| lifting weight(t) | 25 | |
| lifting pile's lengh(m) | 15 | |
| power(KW) | piling | 141 |
| lifting | 37 | |
| main dimension(m) | length of work | 14.8 |
| width of work | 8.42 | |
| transprorting height | 3.4 | |
| total weight(T)≥ | 960 | |
4, Feature Advantage:
.Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile, avoid damaging the pile.
Unique design of side/corner piling structure, improves the capacity of side/corner piling, the pressure force of side/corner piling up to 60% -70% of main piling. The performance is much better than hanging side/corner piling system.
Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil, ensuring high reliability of clamping pile and high quality of construction.
4Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure, greatly improving the safety of operation.
Unique walking mechanism with lubrication cup design could realize durable lubrication so as to extend service life of rail wheel.
Constant & high flow power hydraulic system design ensures high piling efficiency.
5. Other terms:
| Delivery Information: | |||
| Port: | Any port of China | ||
| MOQ: | 1 Unit | Capacity: | 300 Unit / Month |
| Delivery days: | 30-40 days after the receipt of L/C or T/T | ||
| Packing details: | Container packaging or Nude package | ||
| Payment terms: | L/C D/A D/P T/T .. | ||
| Our Advantages: | |||
| Our promise to the clients: | 1. Rapid response to your enquiry in 12 working hours; | ||
| 2. Installation and adjustment of the machine on site; | |||
| 3.Training the operator and maintabce poeple; | |||
| 4. Regular inspection of the machine; | |||
| 5. Branch overseas offer quick response within 24 hours upon customer's instruction. | |||
6. More pictures of Hydraylic static pile driver machine:
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
