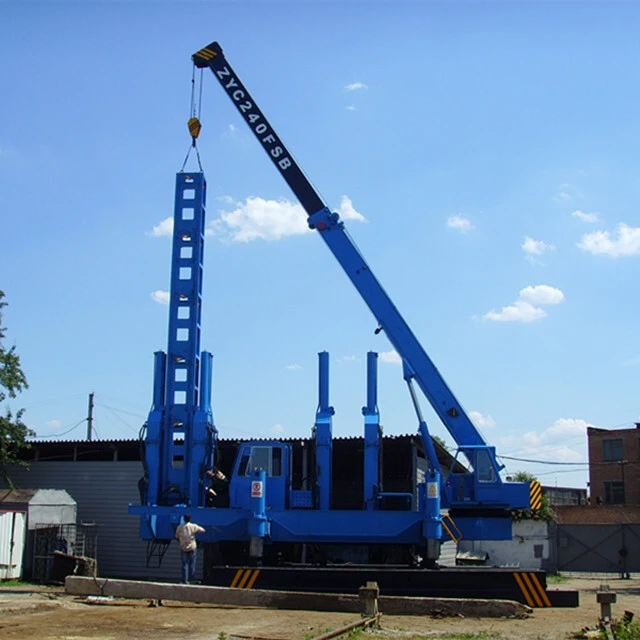

T-works - Hunan ZYC600 ZYC460 hydraulic static pile driver for concrete spun pile and square pile Hydraulic Static Pile Driver
Thanks to the efforts of our employees including technicians and designers, T-works is able to introduce our .Hunan ZYC600 ZYC460 hydraulic static pile driver for concrete spun pile and square pile to the public. It's designed out of the needs of our customers. In the future, T-works will make full use of the wisdom of our talents and update our technologies to keep up with the trends, to make our dream of being a world-famous company come true.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | high efficiency | Piling Speed(m/min): | 7.0m |
| Place of Origin: | Hunan, China | Brand Name: | T.works |
| Weight: | 600000 kg | Dimension(L*W*H): | 13.8m*8.12m*3.3m |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High operating efficiency |
| After-sales Service Provided: | Engineers available to service machinery overseas | Made by T-works: | From Changsha Tianwei |
| Suitable pile: | Concrete precast pile,sheet pile,steel tube,H-pile | Suitable pile shape: | Sheet pile,round/square pile,triangle pile,H-pile |
| Suitable jobsite: | Soft soil, clay,sand, noise-sensitive areas for construction | Side piling mechanism: | 3types available for customer |
| Crane mounted: | from 5T or 8T available for customers | Suitable pile size: | Max 300mmfor round,300mm for square |
| New foundation machine: | A embracing pile driving method | New piling machine: | Adopt hydraulic to jacking in pile to avoid the noise and pollution |
Hunan ZYC600 ZYC420 hydraulic pile driver machine
|
paramete / type/model |
ZYC600 |
|
|
Rated piling pressure(KN) |
6000 |
|
|
Piling speed (m/min) |
Fast |
7.0 |
|
Low |
1.4 |
|
|
Piling stroke(m) |
1.9 |
|
|
Pace(m) |
Longitudinal |
3.6 |
|
Horizontal |
0.7 |
|
|
Angle range(°) |
11 |
|
|
Rise stroke (m) |
1.2 |
|
|
Square pile (mm) |
Max |
650 |
|
Circle pile (mm) |
Max |
800 |
|
Side piling space(mm) |
1380 |
|
|
Corner piling space(mm) |
2800 |
|
|
Lifting weight(t) |
16 | |
|
Lifting pile's lengh(m) |
15 | |
|
Power(KW) |
Piling |
111 |
|
Lifting |
30 |
|
|
Main dimension(m) |
Work length |
13.8 |
|
Work width |
8.12 |
|
|
Transport height |
3.3 |
|
|
Total weight(T)≥ |
600 |
|
