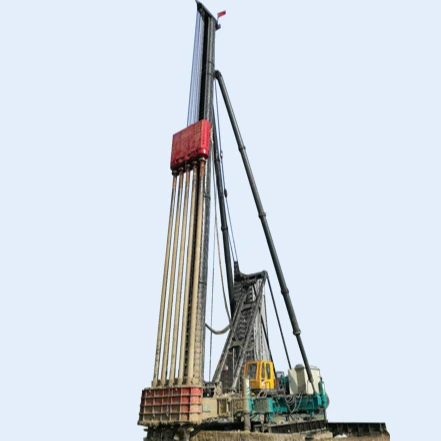

T-works - Foundation diagram wall projects drilling rig SMW multi-funtion drilling rig
Driven by business needs, we have been constantly optimizing and upgrading our technologies including. These technologies contribute to our high-efficiency manufacturing process.In the application field(s) of Pile Drivers.the Foundation diagram wall projects drilling rig proves to be very useful.
As T-works continues to develop, we invest heavily in product development every year in order to keep us competitive in the industry. This year, we have successfully worked out the Foundation diagram wall projects drilling rig. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of Pile Drivers. The launch of a product that perfectly solves the industry's pain points is that T-works has always adhered to the goal of technological innovation, and the newly developed products perfectly solve the pain points that have been lingering in the industry for a long time. Once launched, they have been enthusiastically sought after by the market. As a professional drilling rig manufacturers in China, T-works offers the best SMW multi-funtion drilling rig/ foundation drilling rig for wordlwide customers.
| Applicable Industries: | Construction works | Showroom Location: | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | Condition: | New |
| Efficiency: | 98% | Piling Speed(m/min): | 1 M/min( Within 30 Miles) |
| Place of Origin: | Hunan, China | Brand Name: | T-WORKS |
| Weight: | 145000 kg | Dimension(L*W*H): | according to the model |
| Warranty: | 1 Year, 12months | UNIQUE SELLING POINT: | High operating efficiency |
| Made by T-works: | From Changsha Tianwei | movement type: | crawler type or walking type |
| After-sale service: | Engineer available any time | Total height for column: | 39m |
| column oriented central distance: | 600mm | Stroke for inclined supporing cylinder: | 2800mm |
| Adjusting angle range for column: | ±1.5 | Walking step: | 3600mm |
Foundation diagram wall projects drilling rig
Model | UNIT | SMW168 | |
Total height for column | m | 39 | |
diameter for column | mm | Φ920 | |
column oriented central distance | mm | 600 | |
Adjusting angle range for column | º | ±1.5 | |
Stroke for inclined supporing cylinder | mm | 2800 | |
Adjusting stroke for column | mm | 300 | |
Model for drilling rig | mm | ZLD85-5 | |
Max model of diesel hammer | DH | 12.8 | |
Max pulling force | KN | 800 | |
Max turning angle | º | ±10 | |
Walking step | mm | 3600 | |
Ground contact pressure | Mpa | ≤0.1 | |
Electrical engine | KW | 60 | |
Rated pressure | Mpa | 18 | |
Main winch for lifting drilling rig or diesel hammer etc | Single pulling force | KN | 9.15 |
Wire rope speed | m/min | 0-26 | |
Wire rope diameter | mm | Φ22 | |
Wire rope capacity | m | 110 | |
Vice winch for standing ,lifting drilling rod and pile | Single pulling force | KN | 4 |
Wire rope speed | m/min | 0-28 | |
Wire rope diameter | mm | Φ14 | |
Wire rope capacity | m | 110 | |
Total weight(T) |
| 145 | |
