In the equipment matrix of pile foundation construction, "technical integration" has never been a single path. Some equipment takes "specialization" as a spear, polishing a single function to the extreme; others use "compatibility" as a shield, adapting to multiple scenarios with a universal platform. The multi-functional pile frame and the hydraulic static pile driver are typical representatives of two technical integration ideas – the former is like an "all-rounder", excelling in flexible adaptation; the latter is like a "specialist", standing firm with professional capabilities. Their collision and complementarity are exactly a vivid footnote to the technical evolution of pile foundation equipment.

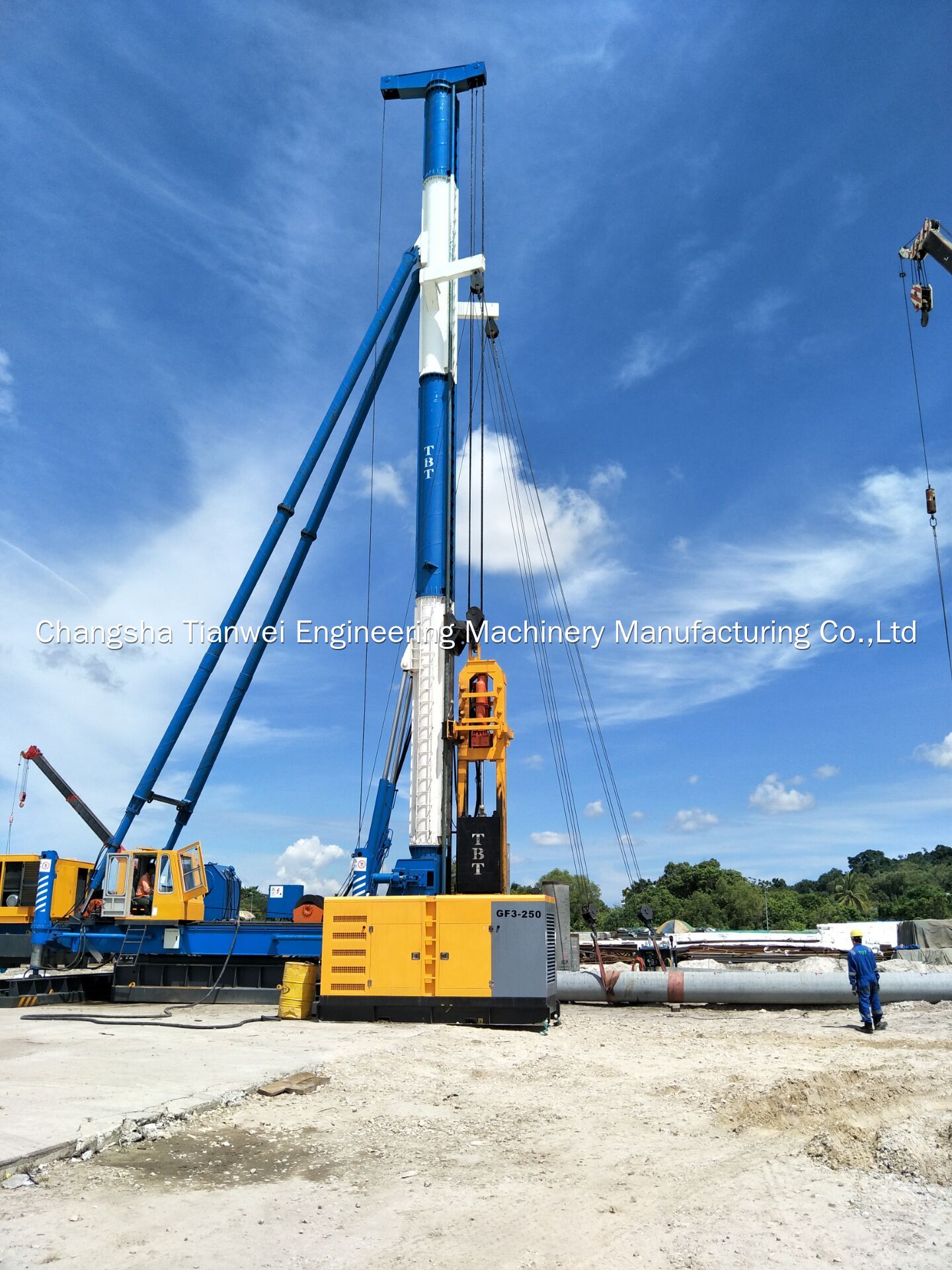

Multi-functional Pile Frame: The Flexible School with "Universal Platform" at its Core
If one word were to define the multi-functional pile frame, "flexibility" would be the most appropriate. Its core form is a crawler-type or walking-type working platform, which does not have the ability to directly drive piles or form holes itself, but is like an open "technical interface" that can switch functions by carrying different working devices: equipped with an impact hammer, it can drive precast piles; replaced with a spiral drill, it can perform hole-forming operations; when carrying a static pressure hoop, it can be transformed into a temporary "static pile driver".
This "platform + module" design logic makes it show great advantages in complex working conditions.
For example, in urban old district renovation projects, the site is often narrow with dense surrounding buildings, requiring both the driving of support piles and the simultaneous pressing of foundation piles, and even interspersed with partial earthwork removal – the multi-functional pile frame can continuously operate in the same area by replacing working devices, saving the time and cost of multiple equipment entering and transferring the site.
In mountainous projects with variable geological conditions, the climbing ability of its crawler chassis and the stability of walking-type movement, combined with adjustable working range, can easily cope with unconventional sites such as steep slopes and gravel piles, which is an "adaptability" that many special-purpose equipment cannot match.

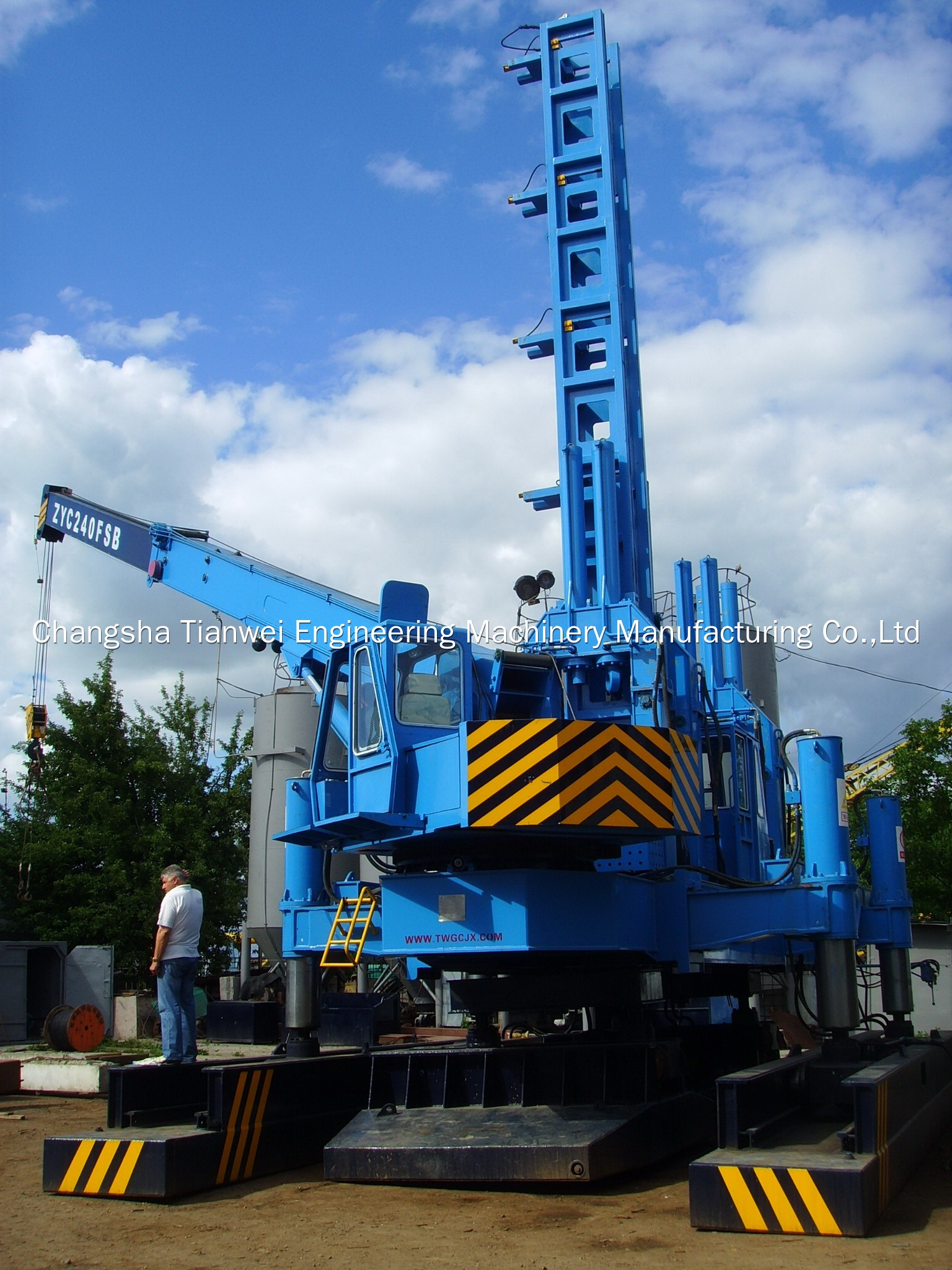

Hydraulic Static Pile Driver: The Efficient School with "Specialized Pile Pressing" as its Soul
Different from the "compatibility thinking" of the multi-functional pile frame, the hydraulic static pile driver takes the route of "extreme specialization". From structural design to power configuration, every detail is designed for the core task of "pile pressing": the compact body layout reduces the operation area; the high-strength pile pressing frame and hydraulic system work together to output thousands of kilonewtons of rated piling force, easily handling the pile pressing in complex geology such as hard soil layers and sandy gravel layers; the precise pressure control system can real-time monitor the reaction force changes during pile pressing, avoiding pile breakage or overpressure settlement, ensuring construction accuracy.
In pure pile pressing scenarios, its "professional advantages" are particularly prominent.
For example, in the construction of large bridge caps, it is necessary to press a large number of precast concrete piles with a diameter of 1.2 meters and a length of 30 meters.
With stable continuous pressure output, the hydraulic static pile driver can improve the single pile pressing efficiency by more than 30% compared with the multi-functional pile frame (equipped with static pressure modules).
Moreover, due to its stronger structural rigidity, the pile pressing verticality error can be controlled within 0.5%. This "specialization for efficiency" characteristic makes it the first choice for large-scale and standardized pile pressing projects.
Game and Symbiosis: The Application Rules of Two Integration Paths
Comparing the two in the same dimension, the differences become clear: | Comparison Dimensions | Hydraulic Static Pile Driver | Multi-functional Pile Frame |
|---|
| Core Logic | Function integration: Deeply integrates technologies around "pile pressing" | Platform integration: Achieves wide function coverage via open interfaces |
| Performance | - Piling force: >6000kN - Efficiency: 20%-50% higher single-shift output in pure pile-pressing scenarios - Flexibility: Hard to handle cross-scenario complex working conditions | - Piling force: ≤3000kN - Efficiency: Lower in pure pile-pressing scenarios - Flexibility: Capable of handling complex working conditions like "pile pressing + hole forming + impact" |
Applicable Scenarios | Large-volume, high-tonnage pile pressing (e.g., ports, super high-rise foundations) | Limited sites, complex working conditions (e.g., urban complexes, mountain projects) or scenarios requiring "one machine for multiple uses" to control costs |
| Cost | - Purchase cost: Higher (due to specialized core components) - Long-term cost: Efficiency advantages dilute unit cost in large-scale operations | - Purchase cost: Lower - Long-term cost: Reduces comprehensive investment by lowering idle rate |
There is no absolute "king", only the "choice" that fits. The multi-functional pile frame and the hydraulic static pile driver, with different technical integration paths, jointly form the "flexibility and efficiency" dual options for pile foundation construction. Understanding their characteristics can find a precise balance between engineering needs and equipment performance – this is the ultimate meaning of technical integration: not a game of either/or, but a symbiosis where each shows its strengths.
