T-WORKS | Structural Characteristics and Application Adaptability of 460-ton Insert-type Side Pile Static Pile Driver
As an optional model in our static pile driver product line, the 460-ton insert-type side pile static pile driver is designed to focus on the actual needs of side pile construction scenarios. Through targeted optimization of structural configurations, it has formed application characteristics different from conventional pile drivers, demonstrating adaptive advantages in specific construction environments.

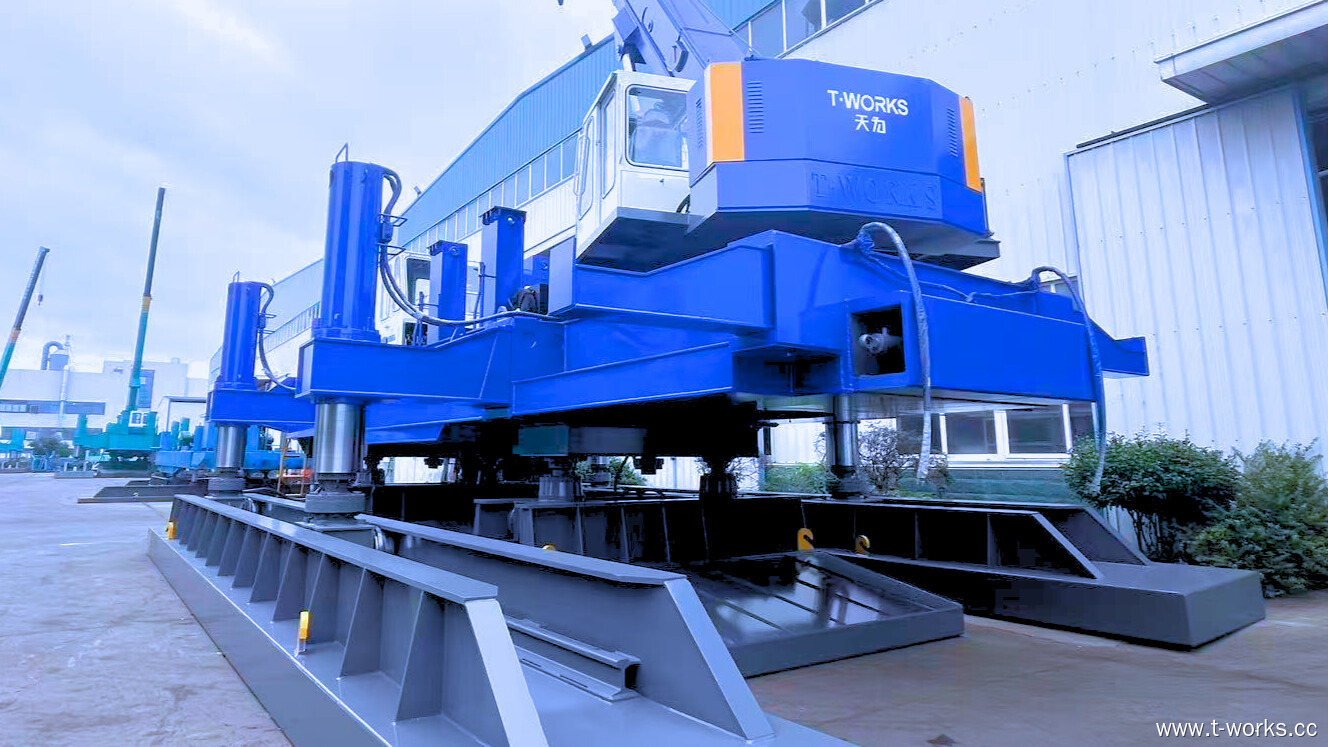

Functional Characteristics of Core Structural Configurations
bg
1、The side pile small corbel and crane small corbel, as key load-bearing components of the machine's counterweight system, fully consider the mechanical transmission requirements during side pile operations in their design. The side pile small corbel adopts an integrated welding structure with the main frame, and its suspension points are calculated through precise spatial layout. This ensures that during side pile construction, the gravity of the counterweight blocks can be transmitted to the pile pressing mechanism along the preset force line, avoiding energy loss caused by offset of the force arm.
Side Pile Small Corbel
The side pile small corbel and crane small corbel, as key load-bearing components of the machine's counterweight system, fully consider the mechanical transmission requirements during side pile operations in their design. The side pile small corbel adopts an integrated welding structure with the main frame, and its suspension points are calculated through precise spatial layout. This ensures that during side pile construction, the gravity of the counterweight blocks can be transmitted to the pile pressing mechanism along the preset force line, avoiding energy loss caused by offset of the force arm.
Crane Small Corbel
The crane small corbel, as an auxiliary counterweight suspension mechanism, forms a coordinated force system with the side pile small corbel. Through the design of adjustable suspension positions, it realizes force balance adjustment under different counterweight combinations, ensuring the stability of the overall machine's center of gravity during side pile operations. The design logic of this counterweight scheme aims to make the pile pressing force more effectively exerted in side pile construction scenarios and improve energy conversion efficiency during operations.

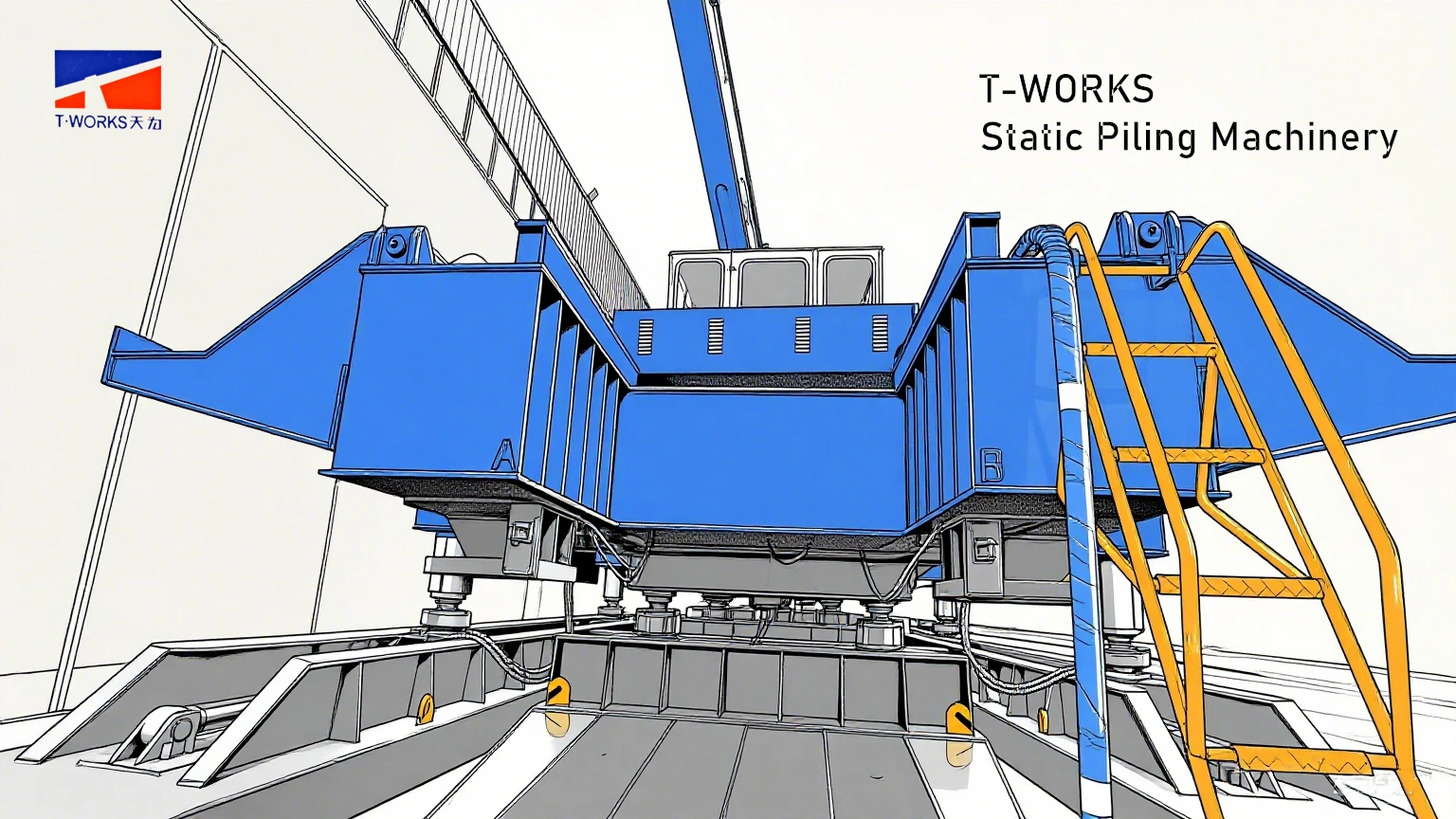

Detachable Walking Ladder

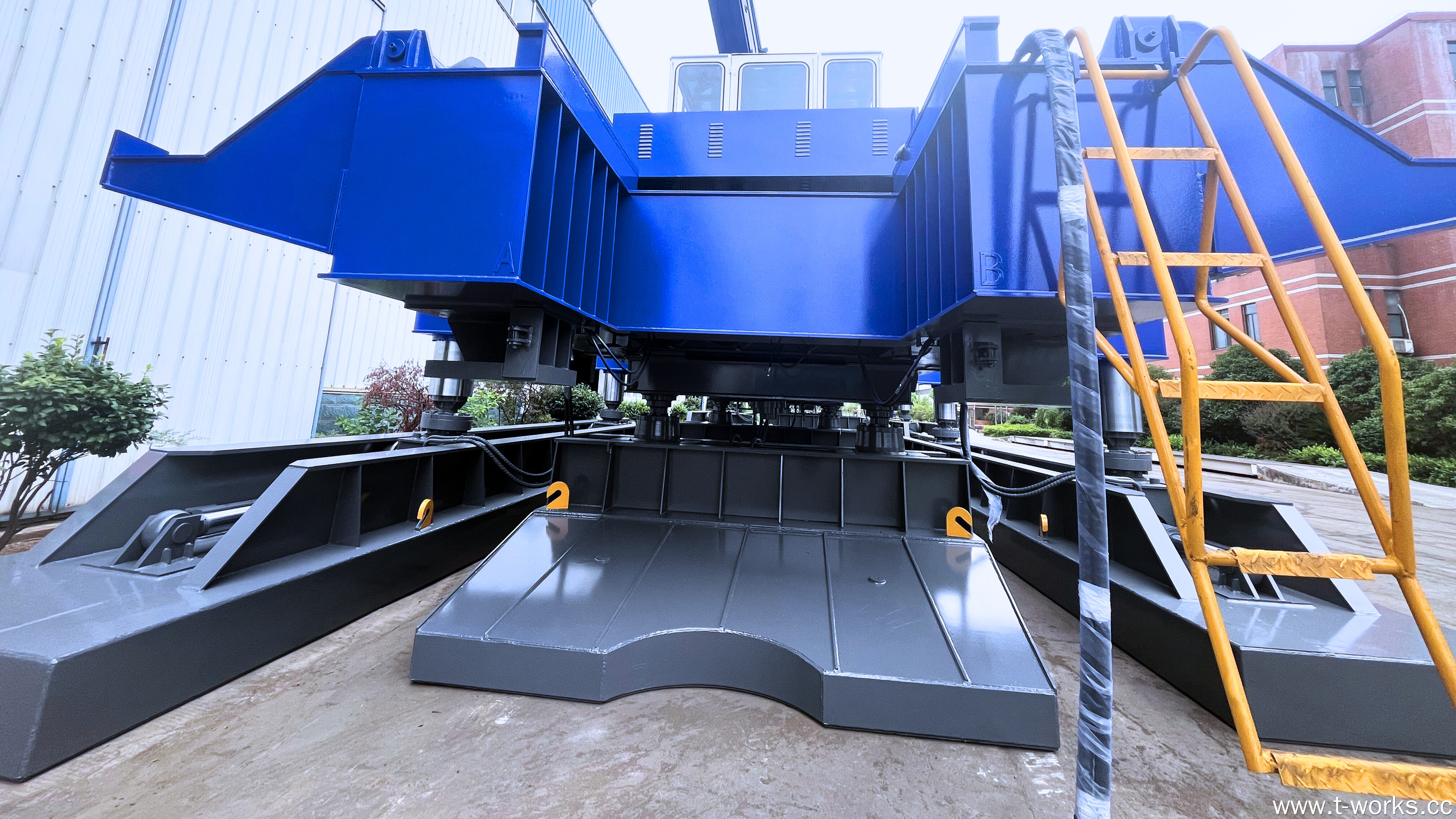

The detachable walking ladder equipped in the pile pressing operation room adopts a segmented structure design. Each segment is connected by high-strength bolts, and can be folded and stored in the storage space on the side of the machine body after disassembly. The surface of the ladder is treated with anti-skid patterns, and the height of the handrails on both sides meets ergonomic requirements. This not only ensures the safety of operators when going up and down the operation room, but also solves the space obstruction problem of conventional fixed ladders during transfer in narrow sites through its detachable feature. In actual operation, two operators can complete the disassembly and assembly of the ladder in a short time, significantly improving the mobility and flexibility of the equipment under complex site conditions.
Walking Track Wheel

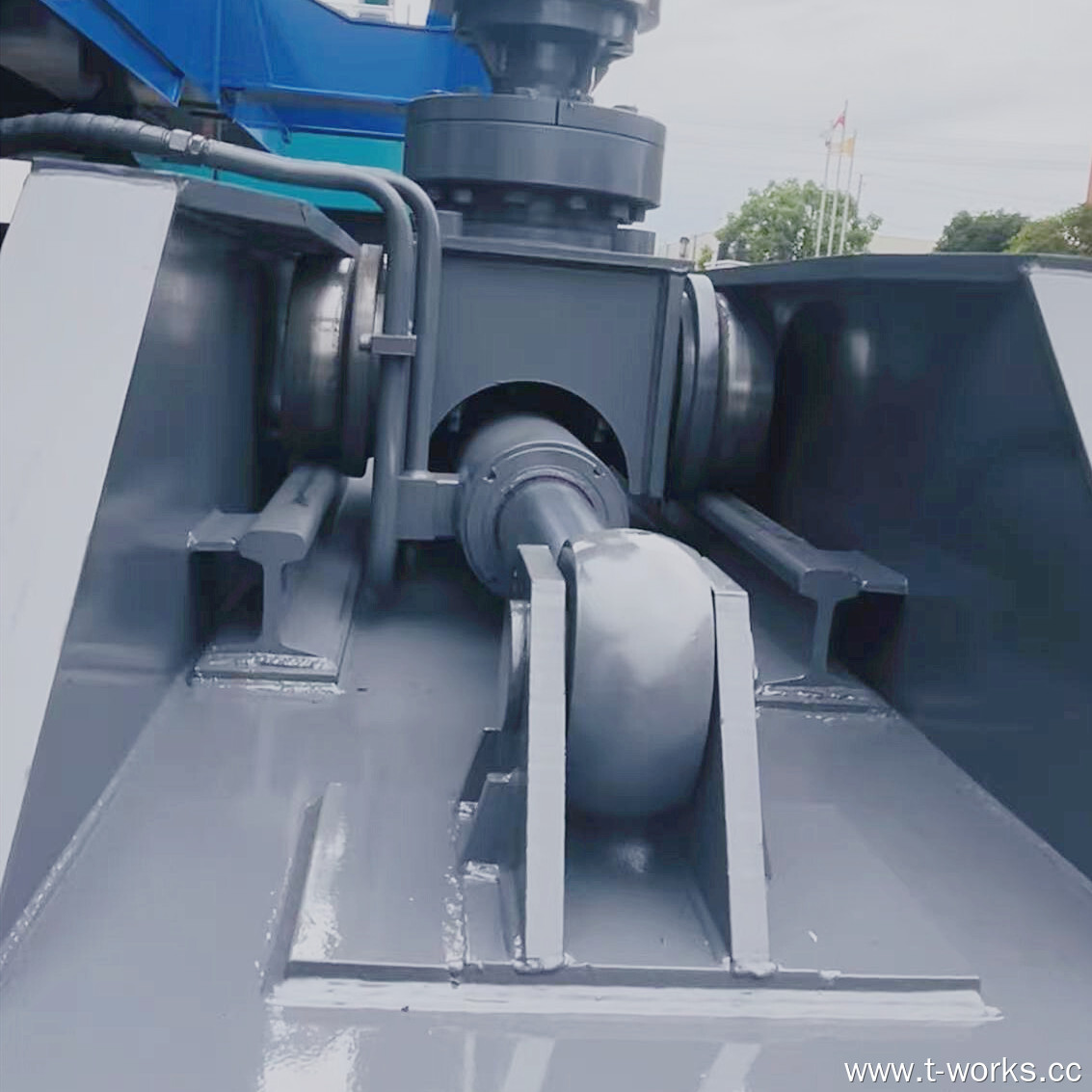

The walking track wheel of the pile driver's traveling mechanism, as a core component in direct contact with the ground, adopts an integral forging processing technology. Compared with cast track wheels, forgings undergo plastic deformation during the forging process, resulting in refined internal metal grains and a denser organizational structure, avoiding defects such as pores and sand holes that are prone to occur in castings. This material characteristic gives the track wheel surface higher hardness and wear resistance. When facing common obstacles such as gravel and hard soil blocks on the construction site, it can reduce local wear caused by impact, extend the replacement cycle of the track wheel, and ensure the long-term stable operation of the traveling mechanism from the structural level.

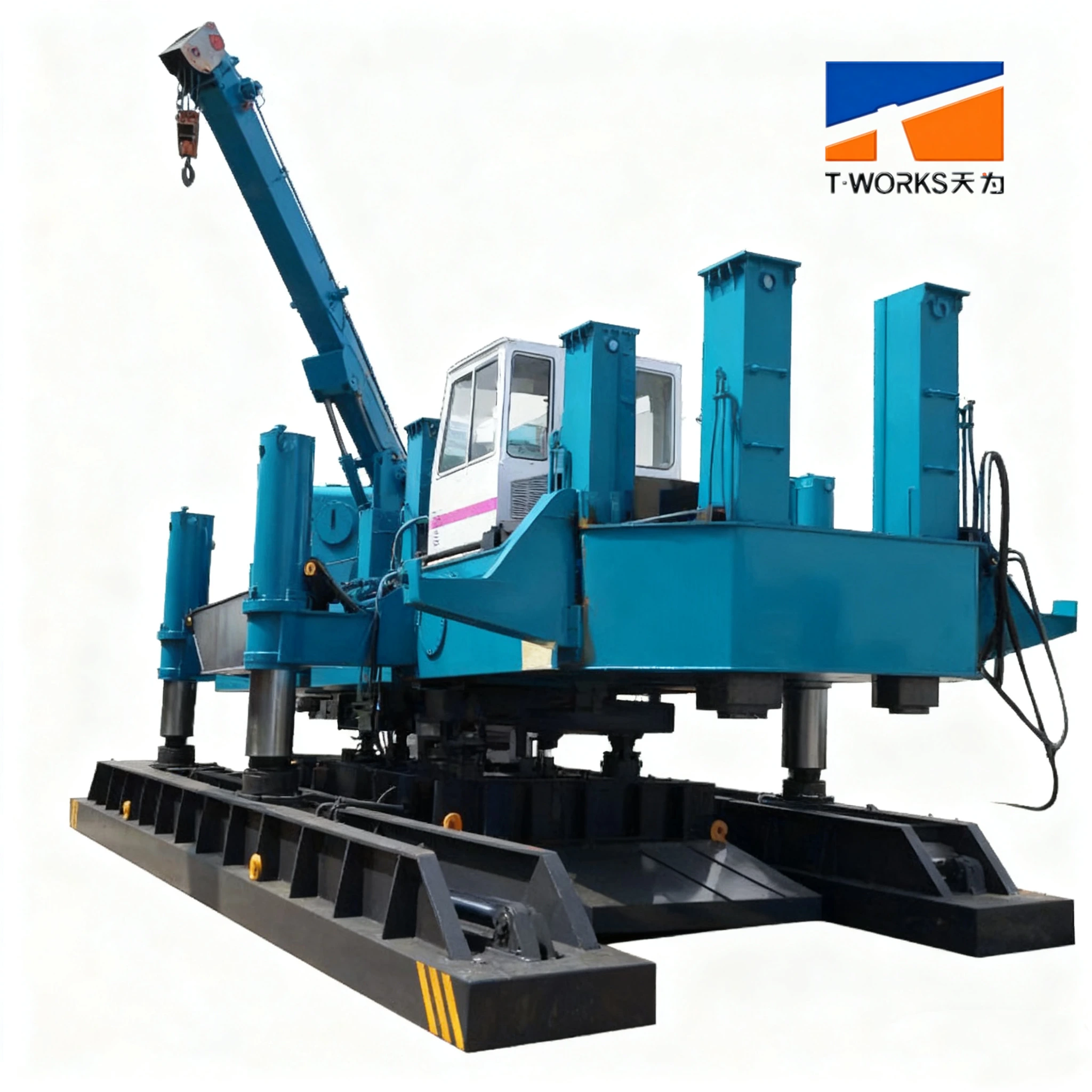

Model Positioning and Market Adaptability
bg
As an optional model in our static pile driver product line, the 460-ton insert-type side pile static pile driver has a clear positioning, mainly targeting customer groups with needs for side pile and corner pile construction. Every design of its structural configurations revolves around practical issues such as space constraints, energy transmission, and operational convenience during side pile construction, forming precise adaptation to specific construction scenarios.
From market feedback, this model has gained recognition from a certain number of users due to its targeted structural design. In projects requiring side pile construction, such as densely built urban areas and site boundary areas, its structural characteristics can better meet construction requirements, becoming a choice for some users in such scenarios. The formation of this market acceptance stems from the effective connection between model design and actual construction needs, and also reflects our attention to segmented scenarios in the construction of product systems.
The existence of this model further improves our static pile driver product matrix, enabling us to provide more targeted equipment options for customers with side pile construction needs, in addition to conventional construction models, thus better covering diverse needs in different construction scenarios.
