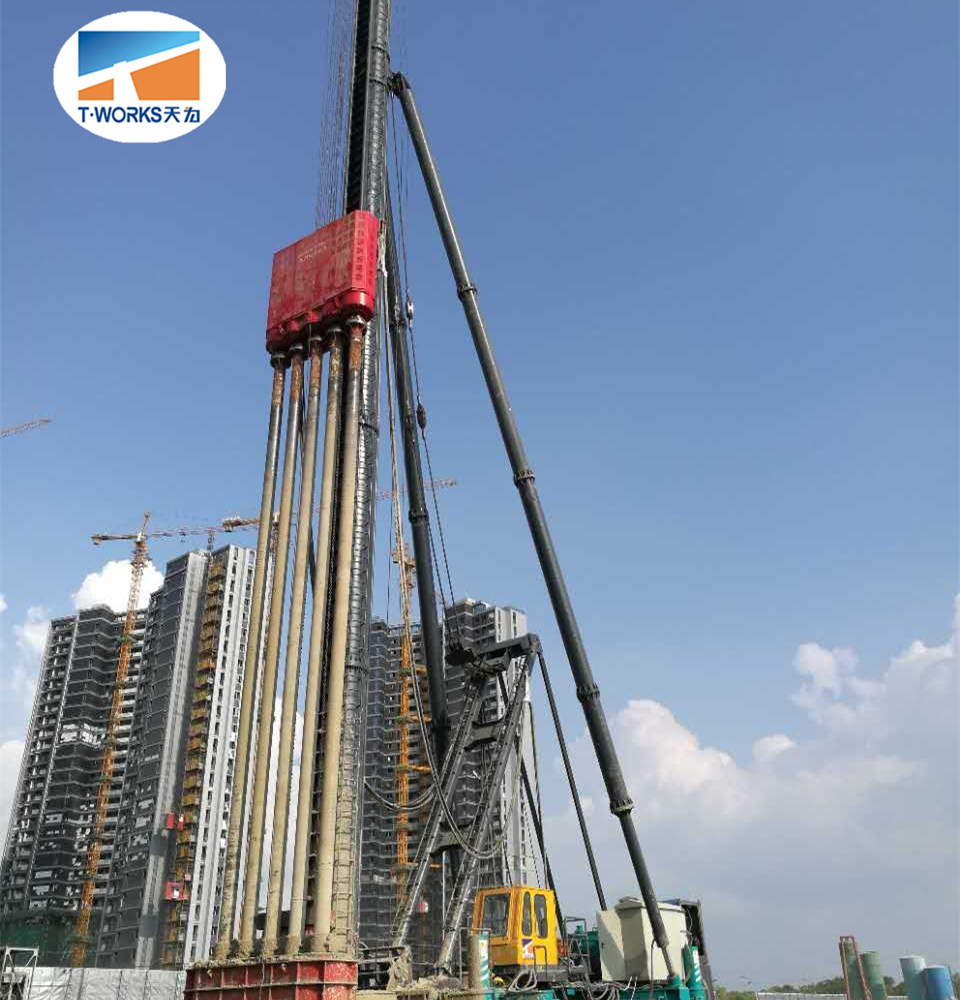

T-works - Diagram wall bored pile drilling machine SMW multi-funtion drilling rig

Diagram wall bored pile drilling machine can improve the company's competitiveness and help the company gain a firm foothold in today's highly competitive environment and develop steadily and at a high speed.We adopt a variety of technologies in the production.The product has obtained unanimous favorable comments from market.

Customization:

Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)

shipping:

Express Sea freight · Land freight · Air freight

Inquiry

Write a Review

T-works relying on years of technical accumulation and industry experience, organically combining traditional craftsmanship with modern technology, successfully developed Diagram wall bored pile drilling machine. We manufacture it in a variety of color and styles. T-works always stick to the market-oriented business philosophy and regard 'honesty & sincerity' as the enterprise tenet. We are trying to establish a sound distribution network and aim to provide customers all over the world with the best services.

Applicable Industries:	Construction works	Showroom Location:	Indonesia, Thailand, Malaysia
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty of core components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump	Condition:	New
Efficiency:	98%	Piling Speed(m/min):	Sandy Soil
Place of Origin:	Hunan, China	Brand Name:	T-WORKS
Weight:	92000 kg	Dimension(LWH):	according to the model
Warranty:	1 Year, 12months	UNIQUE SELLING POINT:	High operating efficiency
After-sales Service Provided:	Engineers available to service machinery overseas	Made by T-works:	From Changsha Tianwei
movement type:	crawler type or walking type	After-sale service:	Engineer available any time
Max drilling depth:	34m	Max output torque:	87KN.m
Rod rotated speed:	20r/min	Allowed lifting force:	800KN
Power of power head:	75KW*2

Diagram wall bored pile drilling machine

KLB WALKING TYPE		KLU20-600	KLU26-800	KLU32-800	KLU34-1000
Movement method		crawler walking-type	crawler walking-type	crawler walking-type	crawler walking-type
Max drilling depth		20m	26m	32m	34m
Max drilling diameter		Φ600mm	Φ800mm	Φ800mm	Φ1000mm
Max output torque		36KN.m	48.5KN.m	65KN.m	87KN.m
Rod rotated speed		20r/min	20r/min	20r/min	20r/m
Allowed lifting force		240KN	400KN	640KN	800KN
Power of power head		45KW*2	55KW*2	55KW*2	75KW*2
Reductor of power head		ZZSH430	ZZSH450-45	ZZSH480-60	ZZSH580-69
Leader size		rectangle section	Φ530mm X 10	Φ630mm X 10	Φ720mm X 10
Leader height		23m	30.5m	36.6m	36.7m
Leader oriented center distance		600*Φ102	600*Φ102	600*Φ102	600*Φ102
Leader inclined range		front inclination 5° back inclination 3°	front inclination 5° back inclination 3°	front inclination 5° back inclination 3°	front inclination 5° back inclination 3°
Walking stroke		1.05m	1.5m	1.8m	2m
Climbing ability of pile frame		4°	4°	4°	4°
Rotary	Rotary way	rotary motor	rotary motor	rotary motor	rotary motor
	Rotary angle	≤360°	≤360°	≤360°	≤360°
	Rotary speed	0.25r/min	0.25r/min	0.25r/min	0.25r/min
Width between two tracks		3900mm	4800mm	5200mm	5400mm
length of crawler on the ground		3200mm	4000mm	4300mm	5000mm
length of single track plate		600mm	800mm	800mm	800mm
Main winch	Single pulling force	4T	5T	7T	8T
	Motor power	18.5KW	22KW	22KW	30KW
	Increasing speed	2.4/3.0/3.5	2.0/2.6/3.2	1.8/2.2/2.6	1.8/2.2/2.6
Vice winch	Single pulling force	1.5T	2T	3T	3T
	Motor power	7.5KW	7.5KW	11KW	13KW
	Increasing speed	20m/min	20m/min	20m/min	20m/min
Overall dimension(L*W)		9m*4.5m	10m*5.5m	11.5m*6m	13m*6.2m
Total weight(T)		52	64	78	92
